Product Description

Basic Information
Model NO.
Self-curing protection pad
Material
Rubber
Maximum Voltage
10KV~20KV
Thermal Rating
Y 90
Voltage Type
<35kv
Fully Cured
7 Days
Hardness
50 Shore a
Tensile Strength
1.75MPa
Elongation at Break
370%/350%
Breakdown Voltage
25.0kv
Dielectric Constant
3.45/3.29
Classification
Hybrid Insulation Materials
Certification
ISO9001
Specification
90mm x 1.8mm x 600mm
Product Description

Self Curing Waterproof Insulation Protection Pad for Switchgear Joint

The FST6525 Insulation and Waterproof Self-Curing Protection Pad is an advanced packaging material designed for superior insulation and waterproof performance. It is ideal for protection of cables (up to 35kV), optical cables, overhead lines, and bare metal wires. Additionally, it provides reliable sealing for outdoor base station connectors, shaped antennas, splitters, couplers, and GPS integrated cabinets.

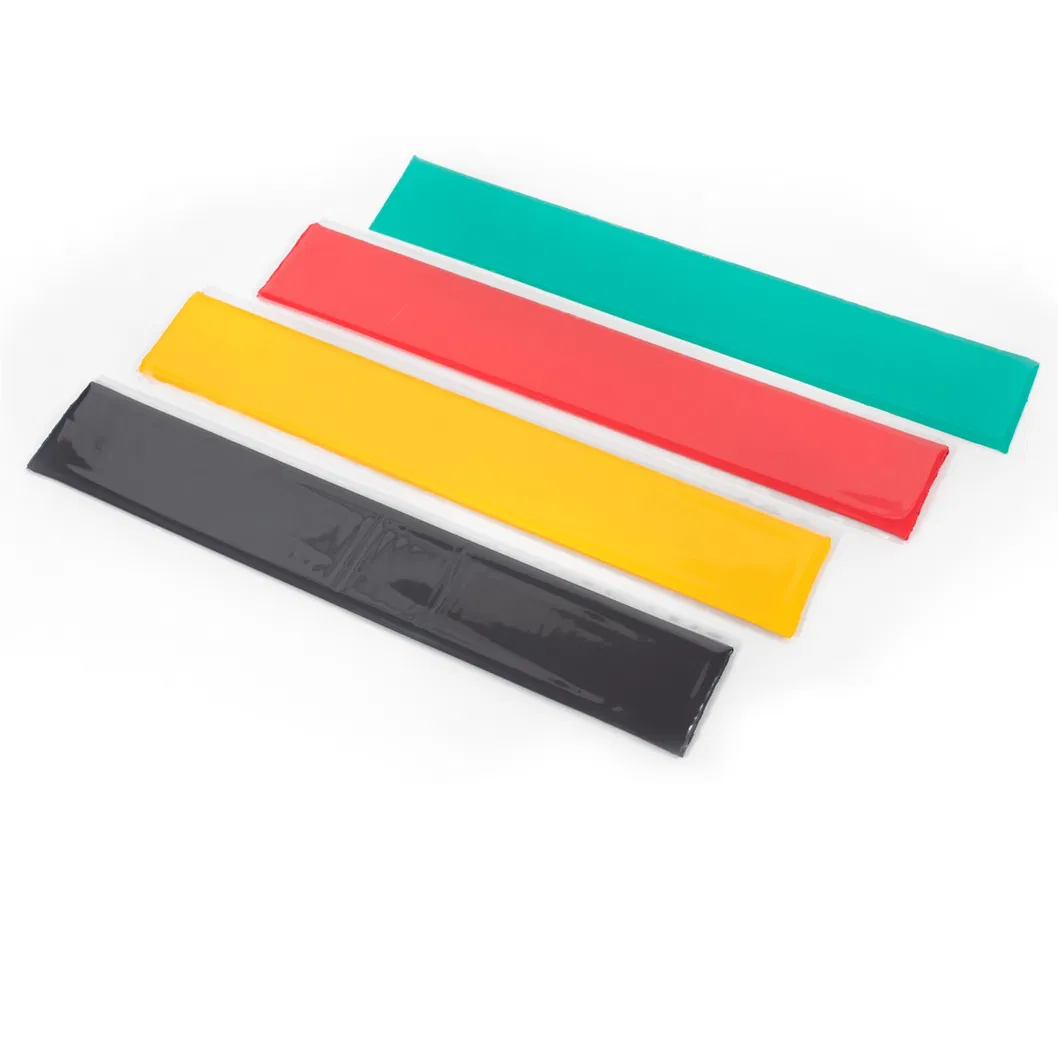

Self-Curing Protective Wrap

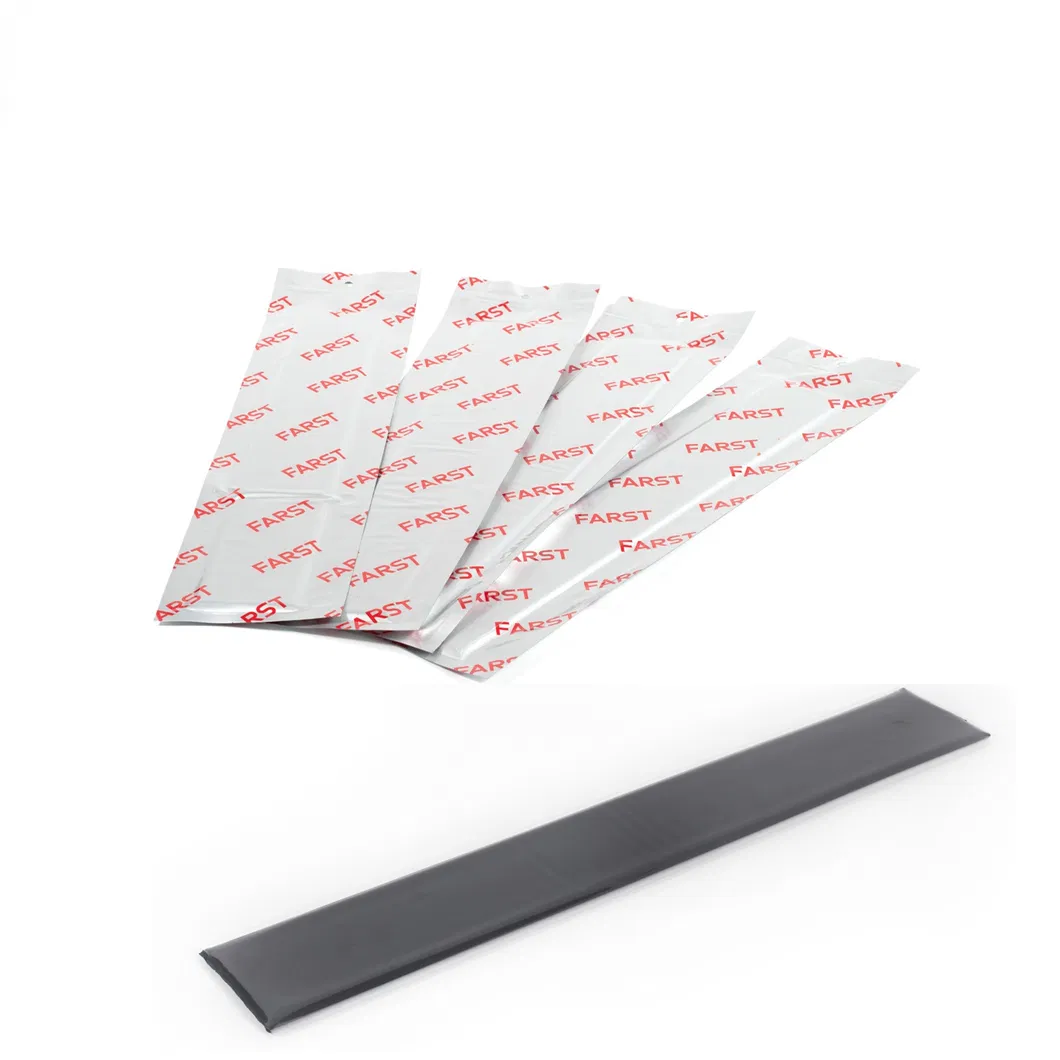

Waterproof Insulation Pad

During application, users simply pinch the material onto the target area. Upon contact with air, the material gradually solidifies to form a robust insulating waterproof layer. No heating or specialized tools are required, making it perfect for quick on-site repairs and plasticizing according to actual field conditions.

Key Features
Encounter water vapor curing in the air
Simple installation, no special training required
All-weather construction: remains stable in high and low temperatures
Outstanding UV aging resistance and reliable bonding
Excellent insulation and high waterproof performance
Exquisite and uniform material quality
Technical Specifications
Parameter Details
AppearanceSolid, Sheet Shape

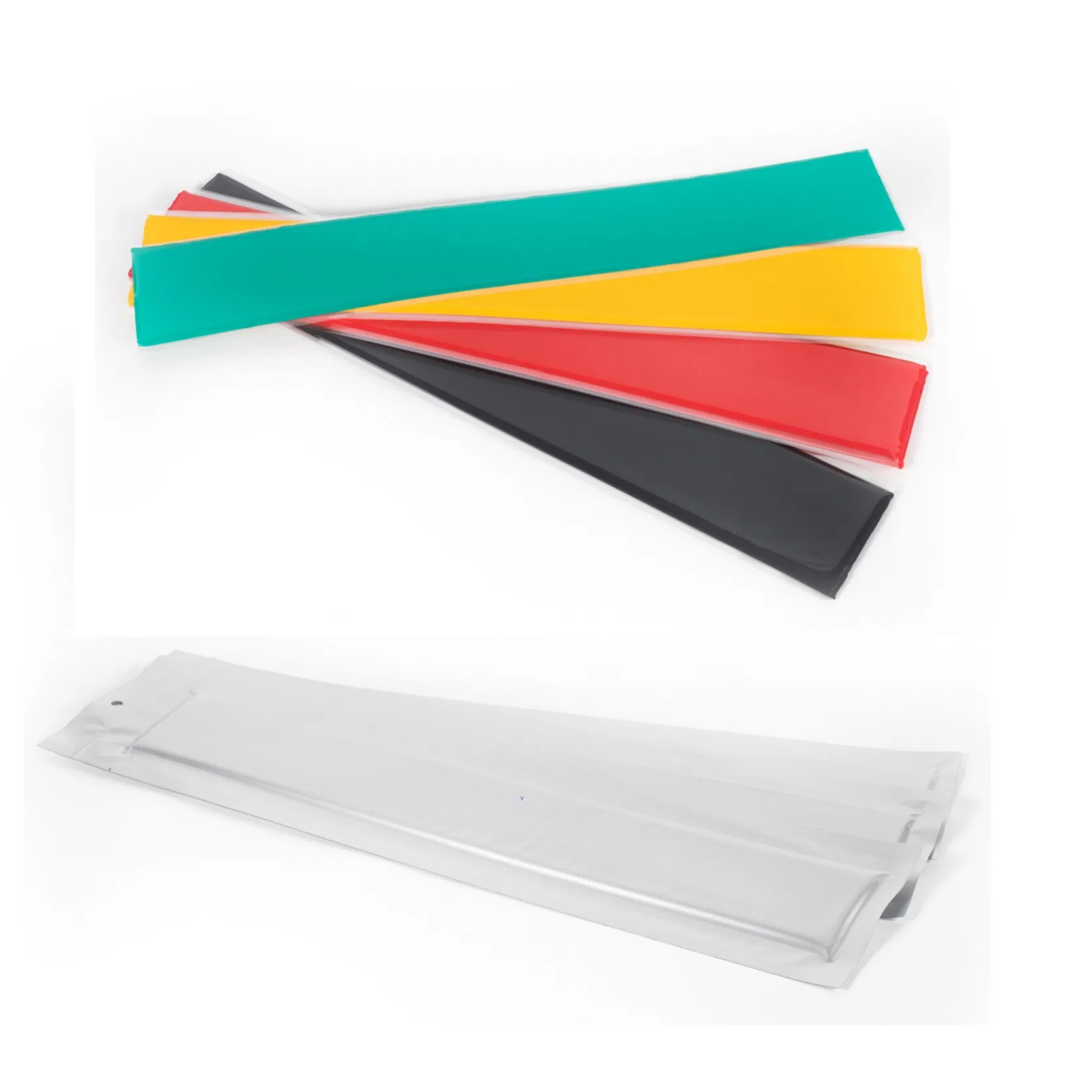

ColorBlack, Red, Yellow, Blue, Green, etc.
Thickness1.8mm
Length600mm
Width90mm
Applications & Details
  • Sealing insulation for overhead wire clamps and safety reinforcement.
  • Insulation protection for exposed metal positions of power conductors.
  • Repairing local insulation of overhead conductors and cable terminal accessories.
  • Blocking entrance holes of electric cabinet type cables, especially for outdoor use.
  • Waterproofing for 4G/5G base station equipment (antennas, splitters, etc.).
  • High-speed rail, ships, and other power-related waterproof fields.

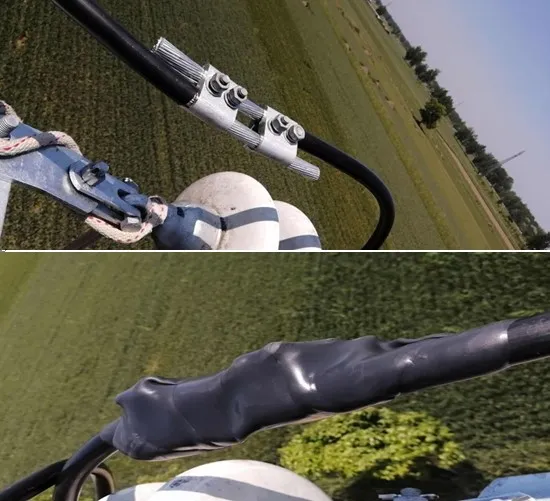

Application 1

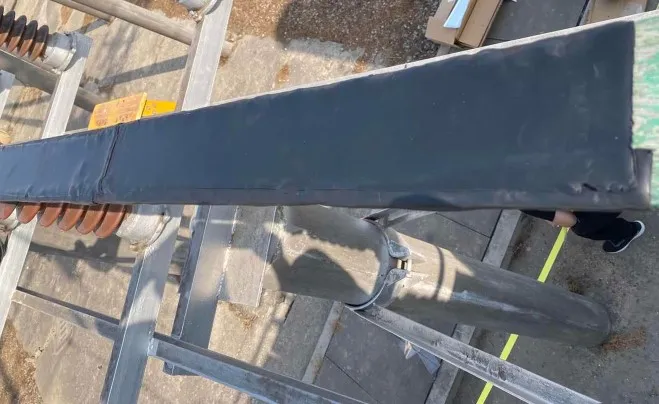

Application 2
Packaging
Packaging & Delivery
Package Size
22.00cm * 22.00cm * 10.00cm
Gross Weight
1.000kg
Capacity
50,000 Pieces / Week
Frequently Asked Questions
Q1: How does the self-curing process work? The material reacts with water vapor in the air to gradually solidify, forming a durable insulating layer without external heat.
Q2: What is the maximum voltage level this pad can handle? It is suitable for insulation protection of cables and equipment rated at 35kV and below.
Q3: Are special tools required for installation? No, it can be easily applied by hand-pinching the material onto the desired location, making it ideal for high-altitude work.
Q4: Does the material become brittle in cold weather? No, the pad is designed to remain flexible and not harden in low temperatures, nor flow or melt in high temperatures.
Q5: How long does it take for the product to reach full hardness? The material typically reaches full curing and its final hardness (approx. 50 Shore A) after 7 days of contact with air.
Q6: Is it resistant to outdoor environmental factors? Yes, it features outstanding UV aging resistance and excellent waterproof sealing capabilities for long-term outdoor use.
