Aluminum Foil Waterproof Wrap

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.
CH-SA
Project Solution
Total Solution for Projects
Application Life
More Than 10-20 Years
Thickness
1.0mm - 3.0mm
Surface Material
Anti-UV Aluminum / Films
OEM
Available
Storage Life
> 5 Years
Production Capacity
Large Scale Capacity
P

Product Description

Professional Handbook on Asphalt Waterproofing Standards and Specifications

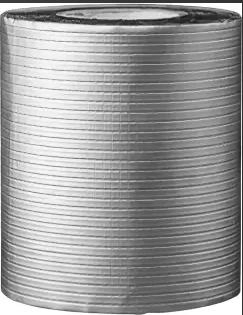

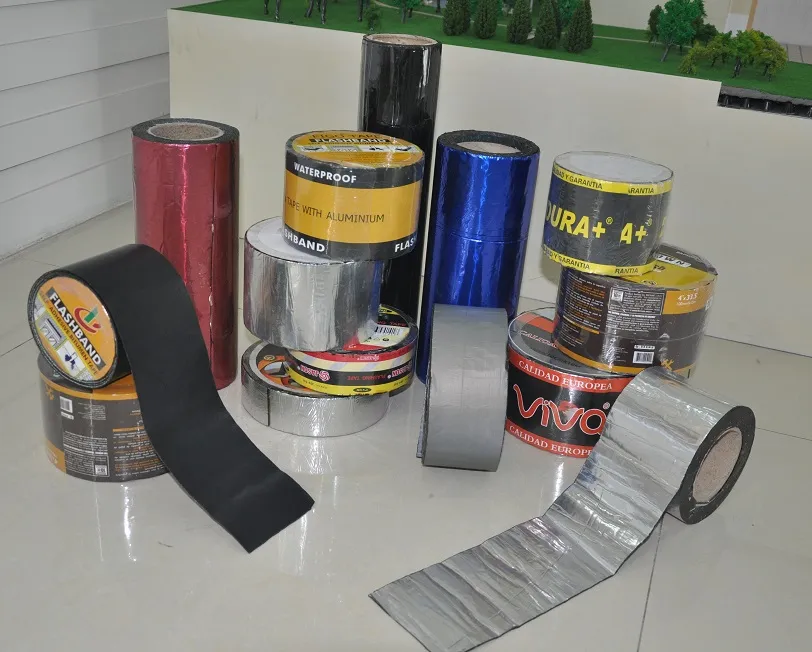

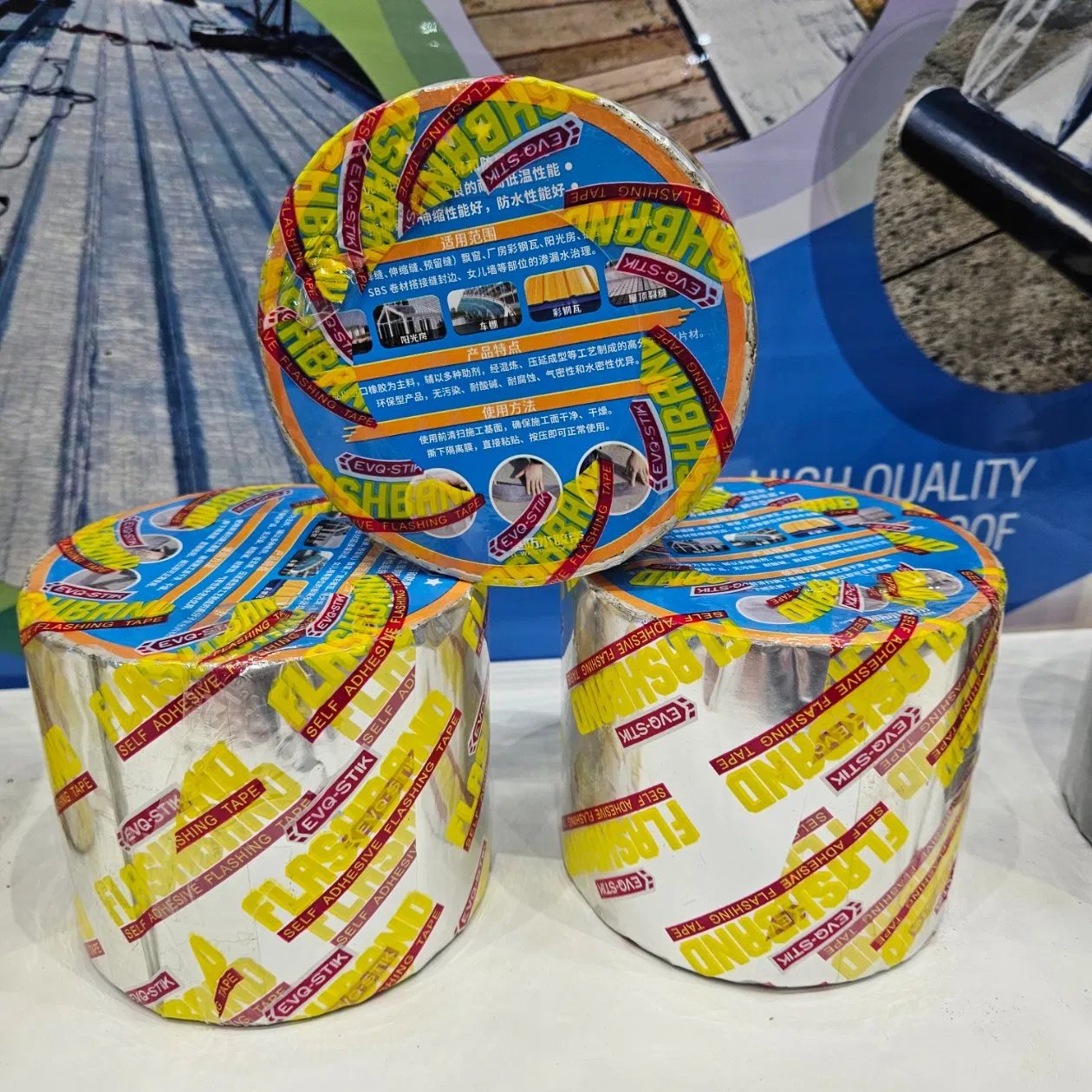

Aluminum Foil Waterproof Wrap
Technical Specifications
Top Cover Anti-UV Aluminum film or foil (various colors) / other films
Thickness (mm) 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm...
Width (mm) 50mm, 75mm, 100mm, 150mm, 200mm, 300mm...
Length (m) 10m or customized
Reinforcement Available without nonwoven (1.0-3.0mm) or with nonwoven (1.2-4.0mm)
Adhesive SBR High-performance adhesive

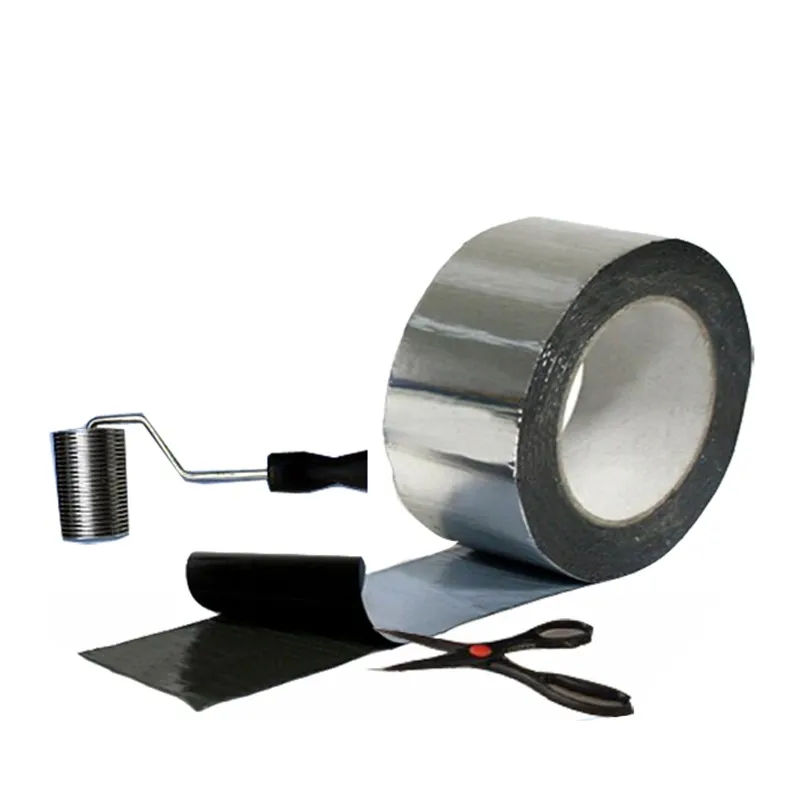

Waterproof Wrap Detail
F

Key Features

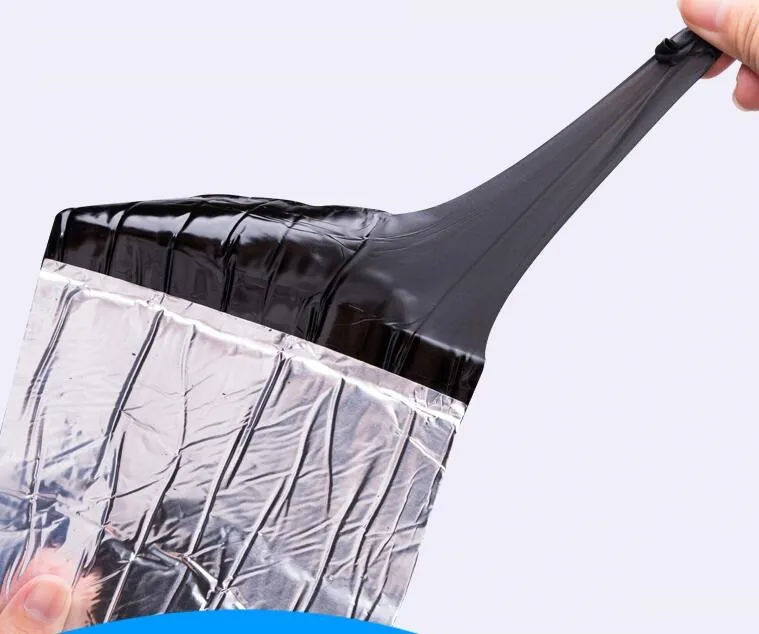

Features Detail
Self-Adhesion: No torch required, eco-friendly installation.
High Elasticity: Excellent rubber elasticity and self-healing properties.
Permanent Bond: Sticks permanently to clean, dry surfaces.
Moisture Seal: Prevents mould by creating an airtight moisture barrier.
Long Life: Over 5 years shelf life and up to 20 years application life.
A

Application Scope

Weatherproof garages, toolsheds, glasshouses, and outhouses.
Seal leaks in caravans, cars, trucks, and metal water tanks.
Seal window sills, sliding doors, air vents, and chimneys.
Repair corrugated roofing sheets, downpipes, and guttering.
Reduce energy costs by sealing construction gaps and carports.

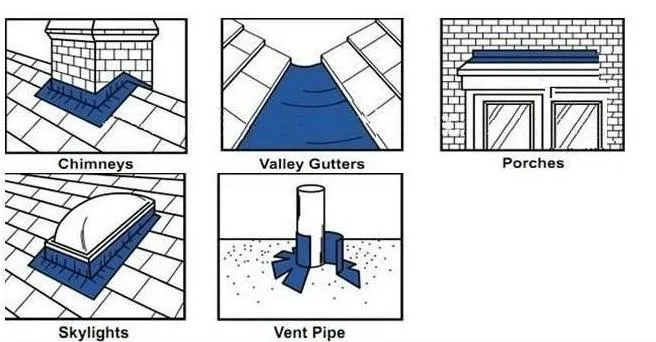

Application Scope Diagram
S

Installation Guide

Ensure surface is impeccably clean, dry, and free from dust.
Remove any loose material with a wire brush or scraper.
Ideal application temperature: +5°C to +45°C.
Cut tape to length, peel release liner, and apply firmly.
Use a small roller to remove air bubbles and seal edges.
Ensure all overlaps are at least 25mm for proper drainage.
C

Application Cases

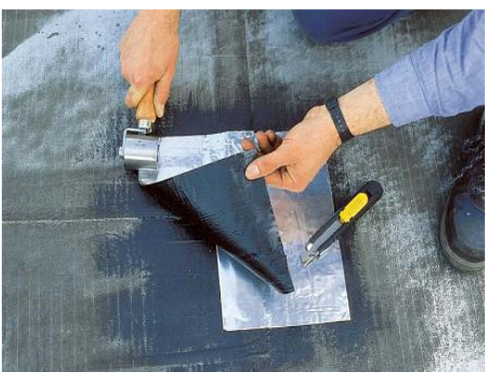

Case 1

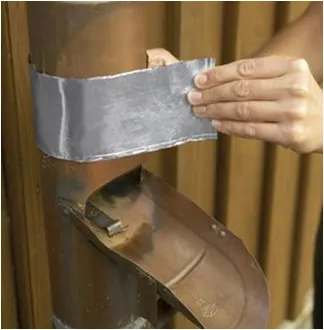

Case 2

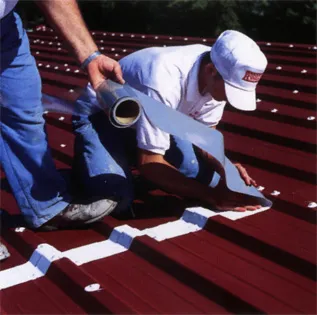

Case 3

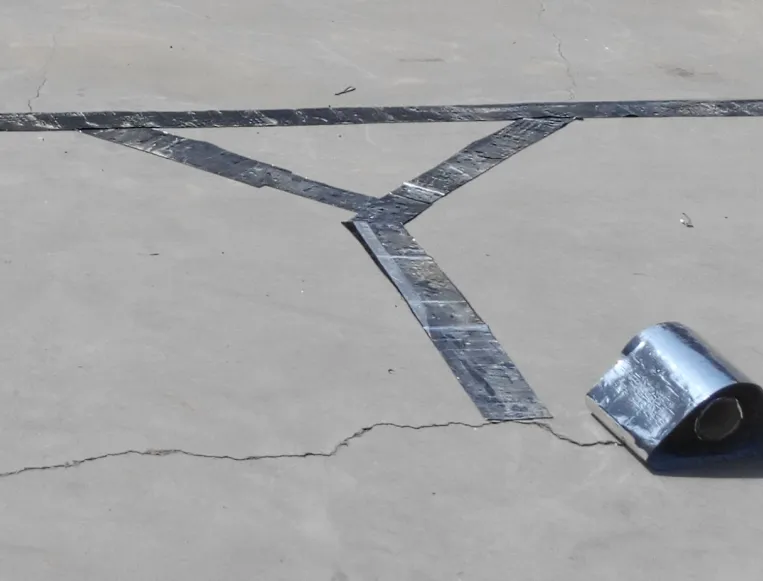

Case 4

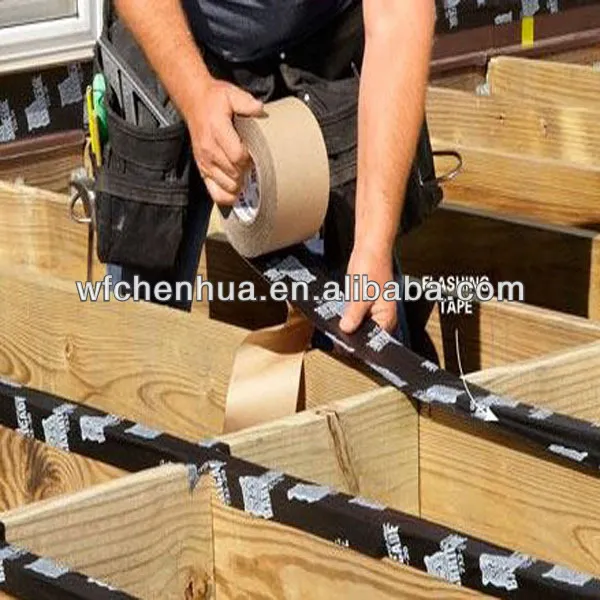

Case 5

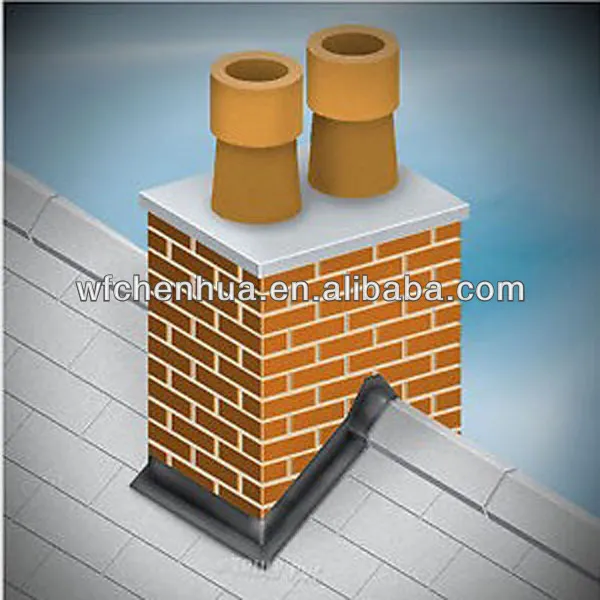

Case 6
L

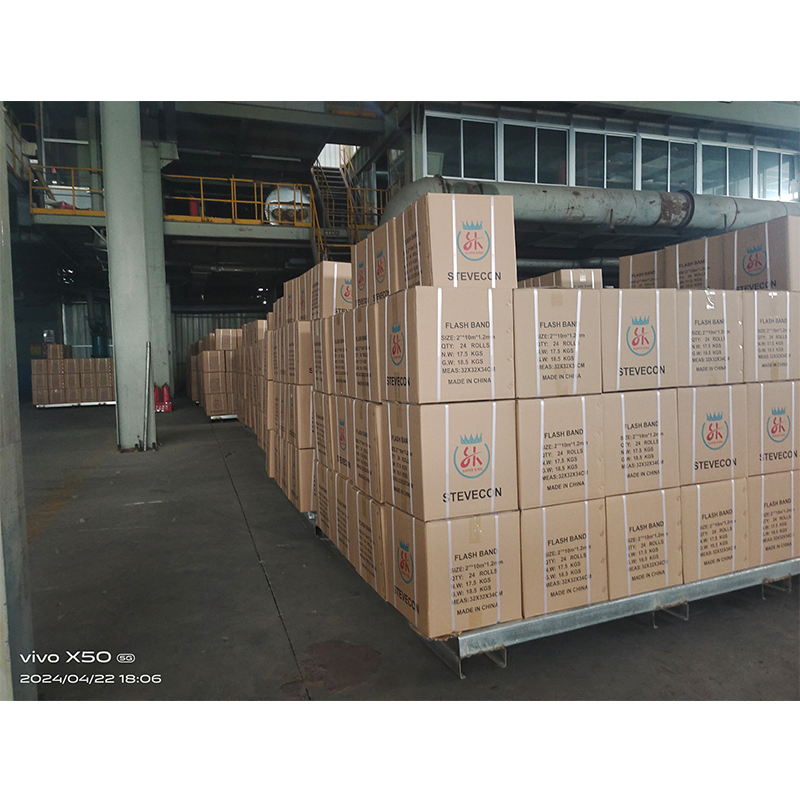

Transportation & Packing

Shipment Type Packing Details
LCL Seaworthy plywood pallet packing
20FCL Limit 28 tons; with or without pallets based on requirements
40GP Limit 28 tons; with or without pallets based on requirements

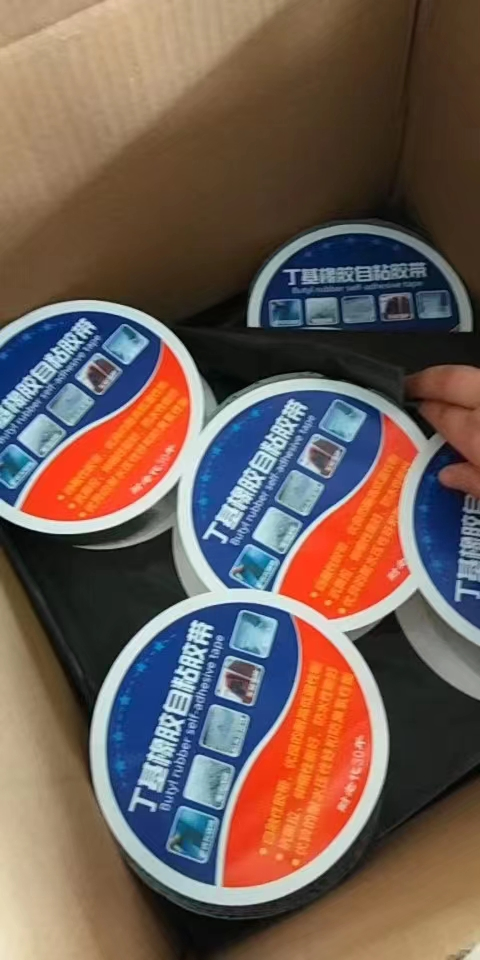

Packing 1

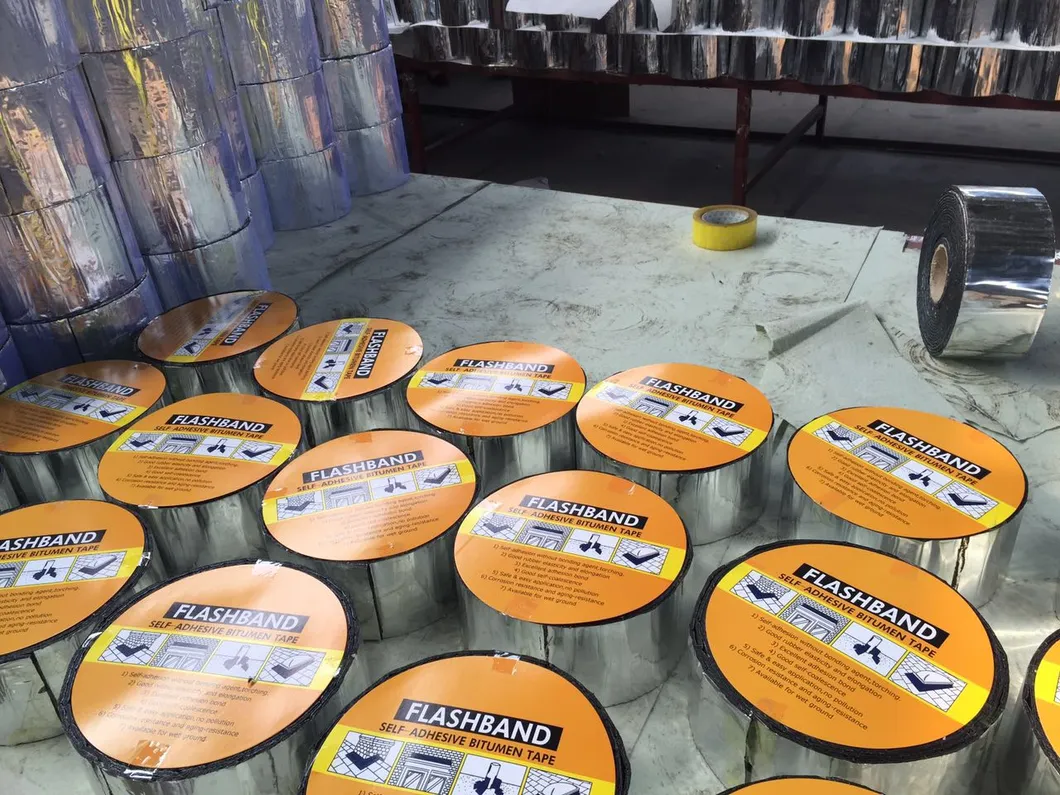

Packing 2
Packing 3

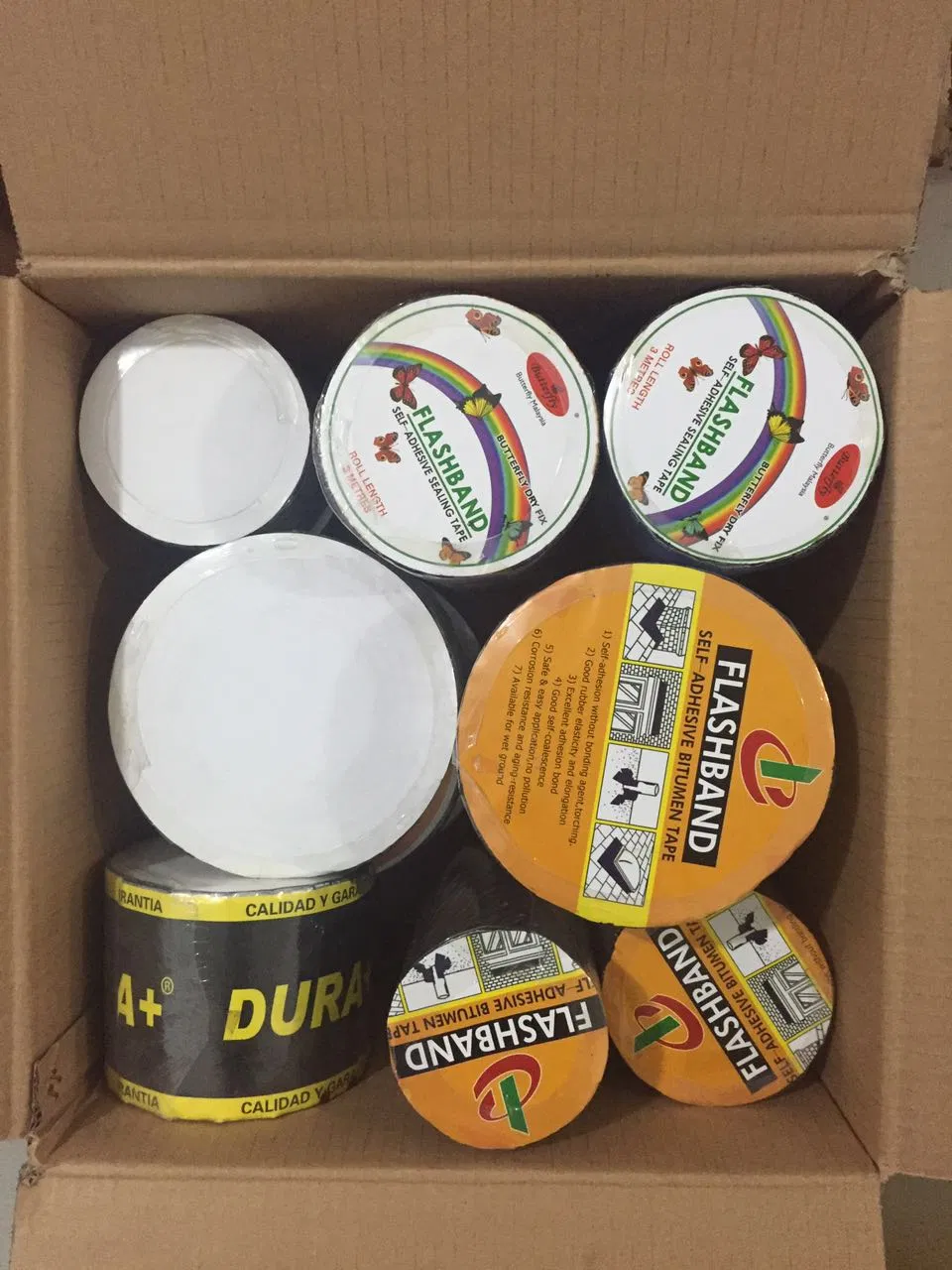

Packing 4
B

Company Introduction

Established in 1994, our manufacturing base is located in the largest construction waterproofing hub in the region. With three factories spanning 70,000 square meters and over 300 highly qualified employees, we utilize state-of-the-art technology to provide superior quality and service.

Main Product Portfolio:

  • Polyester/Compound bases for bitumen membranes
  • SBS/APP bitumen roofing felts
  • Self-adhesive bitumen waterproofing membranes & tapes
  • Butyl waterproof sealing membranes
  • PVC & TPO waterproofing membranes
  • Waterproof membrane production machinery

We are ISO9001 and BV certified, with exports reaching over 20 countries including France, America, Australia, and India. We maintain a stellar global reputation for reliability.

E

Exhibition & Certificates

Exhibition
Certificate
?

Frequently Asked Questions

What is the expected lifespan of this waterproofing tape?
Once applied correctly, the tape can last between 10 to 20 years depending on the environmental conditions and surface preparation.
Do I need a torch or heat for installation?
No, this is a self-adhesive membrane. It does not require a torch or external heat source, making it safer and pollution-free.
Can this tape be used on metal roofing?
Yes, it is ideal for sealing leaks in metal water tanks, corrugated roofing sheets, and various metal construction gaps.
What is the ideal temperature for application?
For the best adhesion results, the tape should be applied at temperatures between +5°C and +45°C.
How should the surface be prepared before application?
The surface must be impeccably clean, dry, and free from dust, oil, or loose materials. Using a wire brush to clean the area is recommended.
Is the tape resistant to UV rays?
Yes, the top cover options include colorful Anti-UV Aluminum film specifically designed to withstand outdoor exposure.
