Water Activity Fiber Fix Pipeline Repair Anti- Corrosion Protection for Broken

Still deciding? Get samples of $ !
Order Sample

Product Description

01

Basic Info

Model NO. RP010 Heat Resistance High Temperature
Waterproof Waterproof Application Plastic, Metal, Rubber, Wood
Adhesive Polyurethane Base Material Fiberglass Material
Type Water Hardening Pipe Repair Bandage Pressure Resistance Up to 8 MPa (with Putty, Silicone Tape)
Curing Time Cures in 10-30 Minutes HS Code 5903209090
02

Product Description

Emergency Pipe Plumbing Repair Water Leakage Stop Tape Rapid Repair Permanent Sealing Wrap with 18G putty and Self fusing silicone tape

Repair Bandage is a pre-impregnated fiberglass bandage with a knitted non-woven fiberglass structure, giving the bandage maximum strength and facilitating repairs on corner joints, elbows and other shaped fittings.

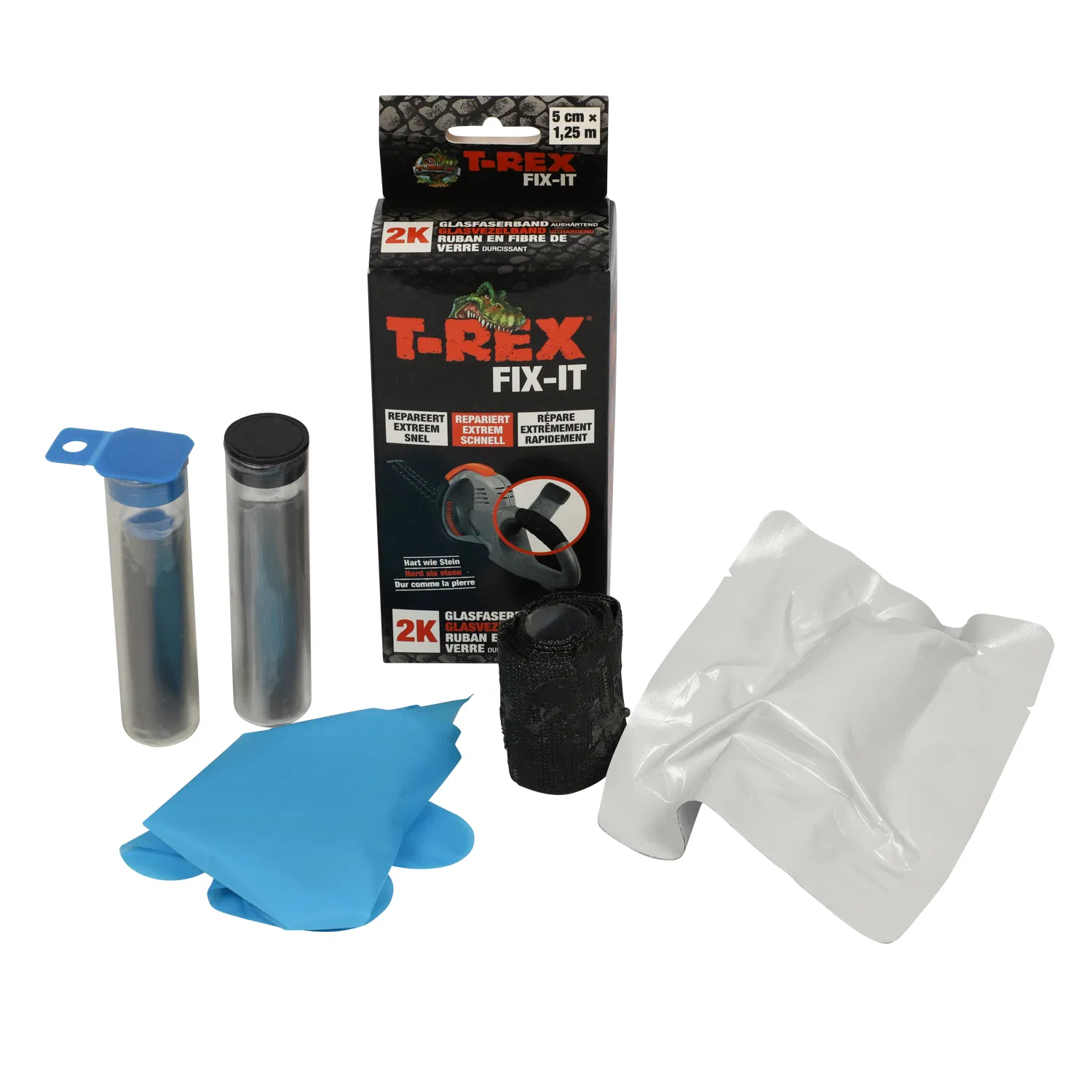

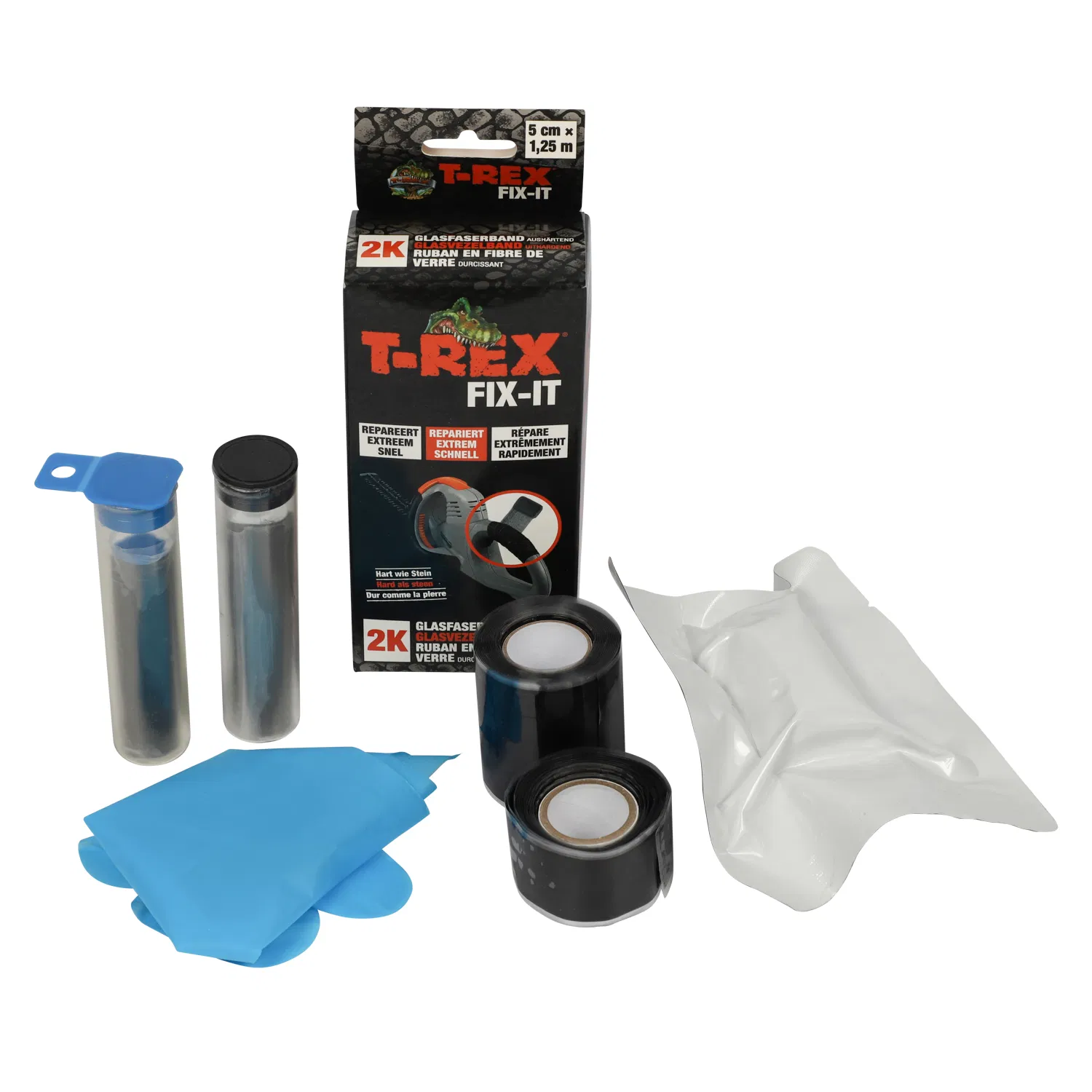

Repair Kit is packaged inside a heat-sealed click-seal bag. Each bag includes: a Pipe Repair Bandage inside a foil pouch; a 90mm (3.5") Steel Putty inside a plastic tube; and a pair of long gloves.

03

Detailed Photos

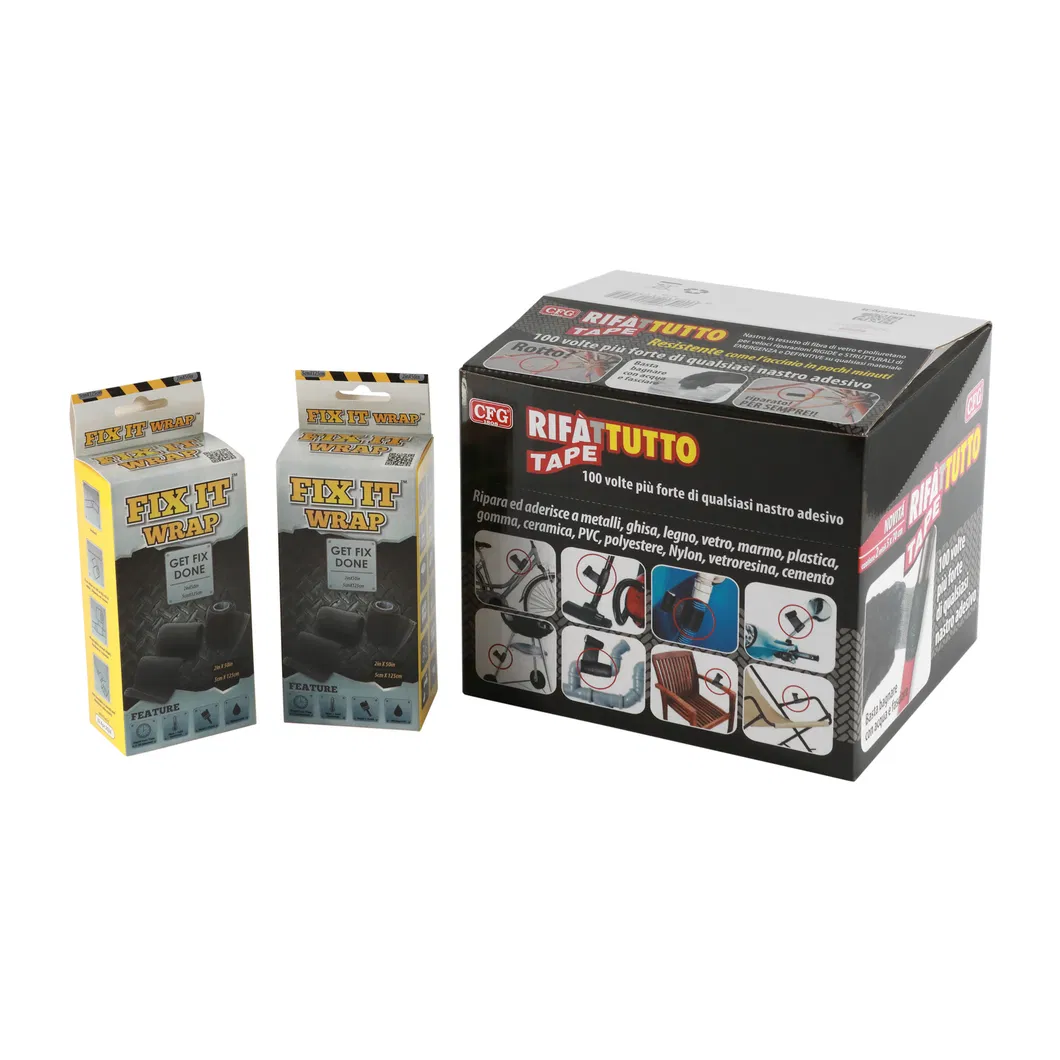

Pipe Repair Tape

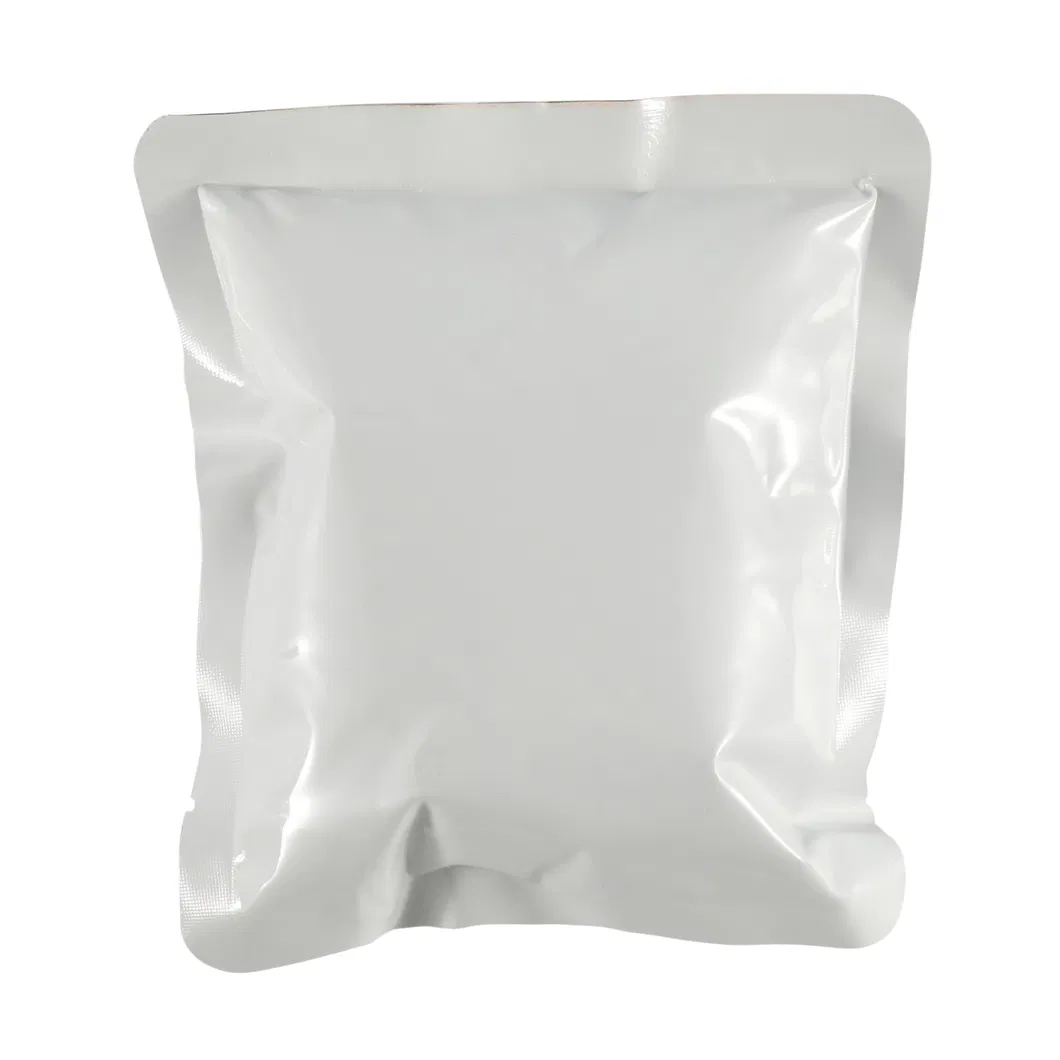

Repair Bandage

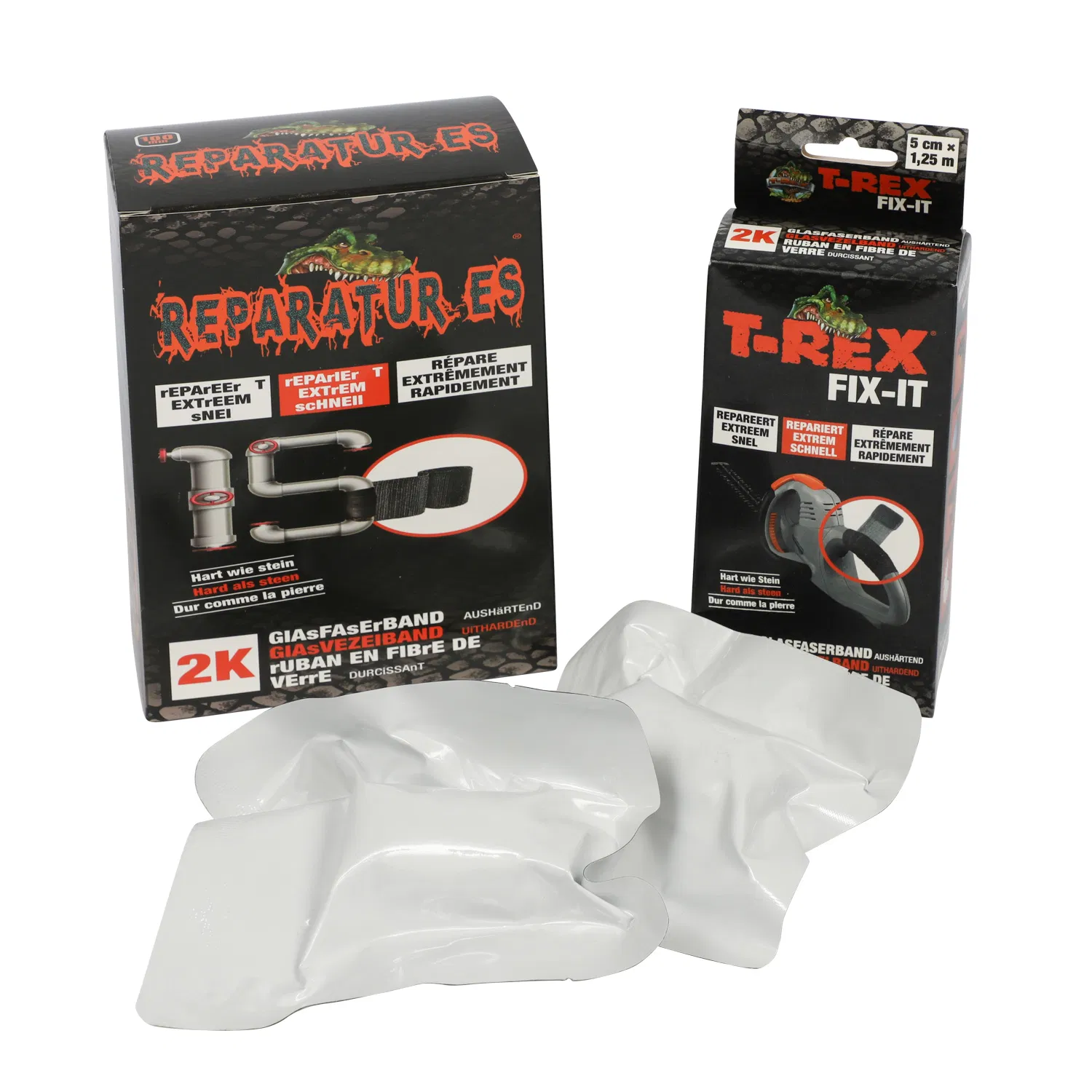

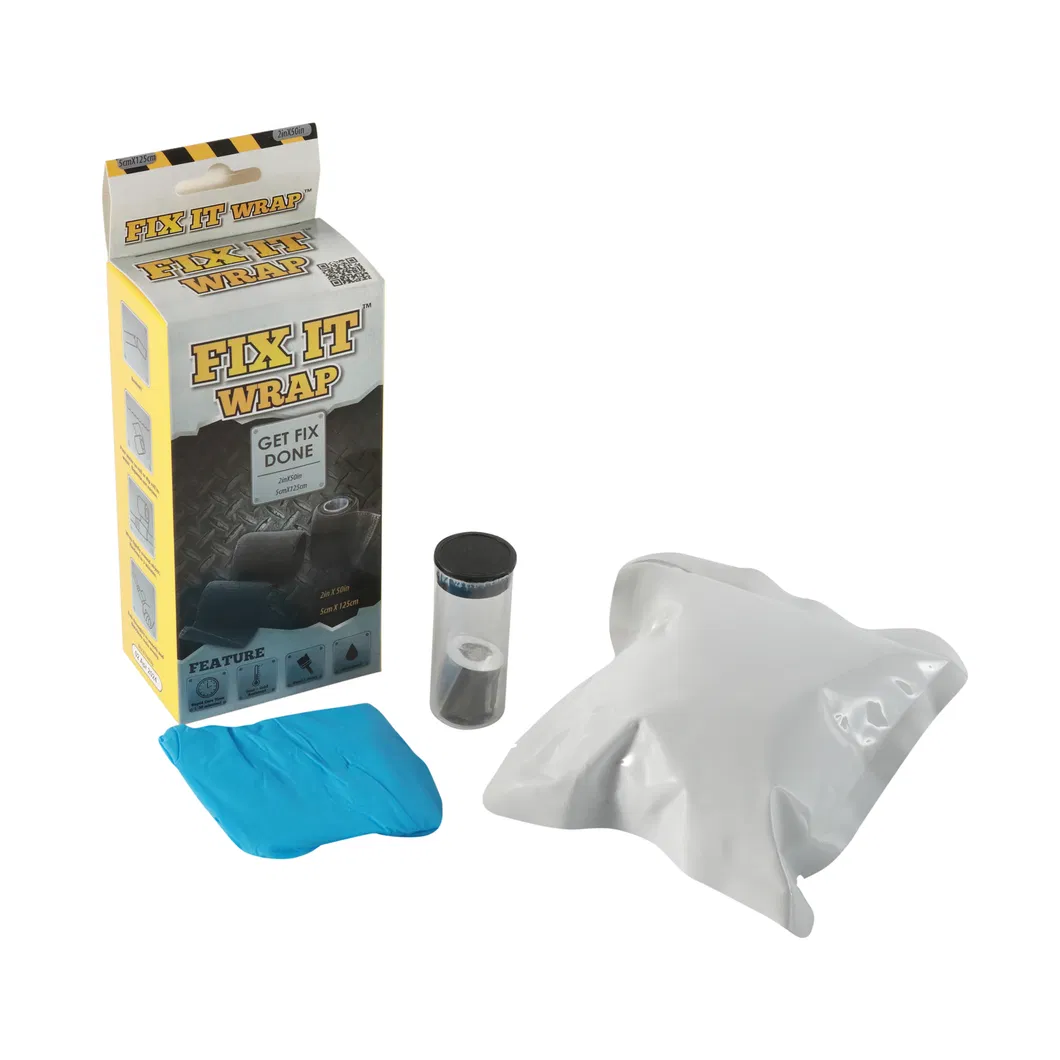

Repairing Kit

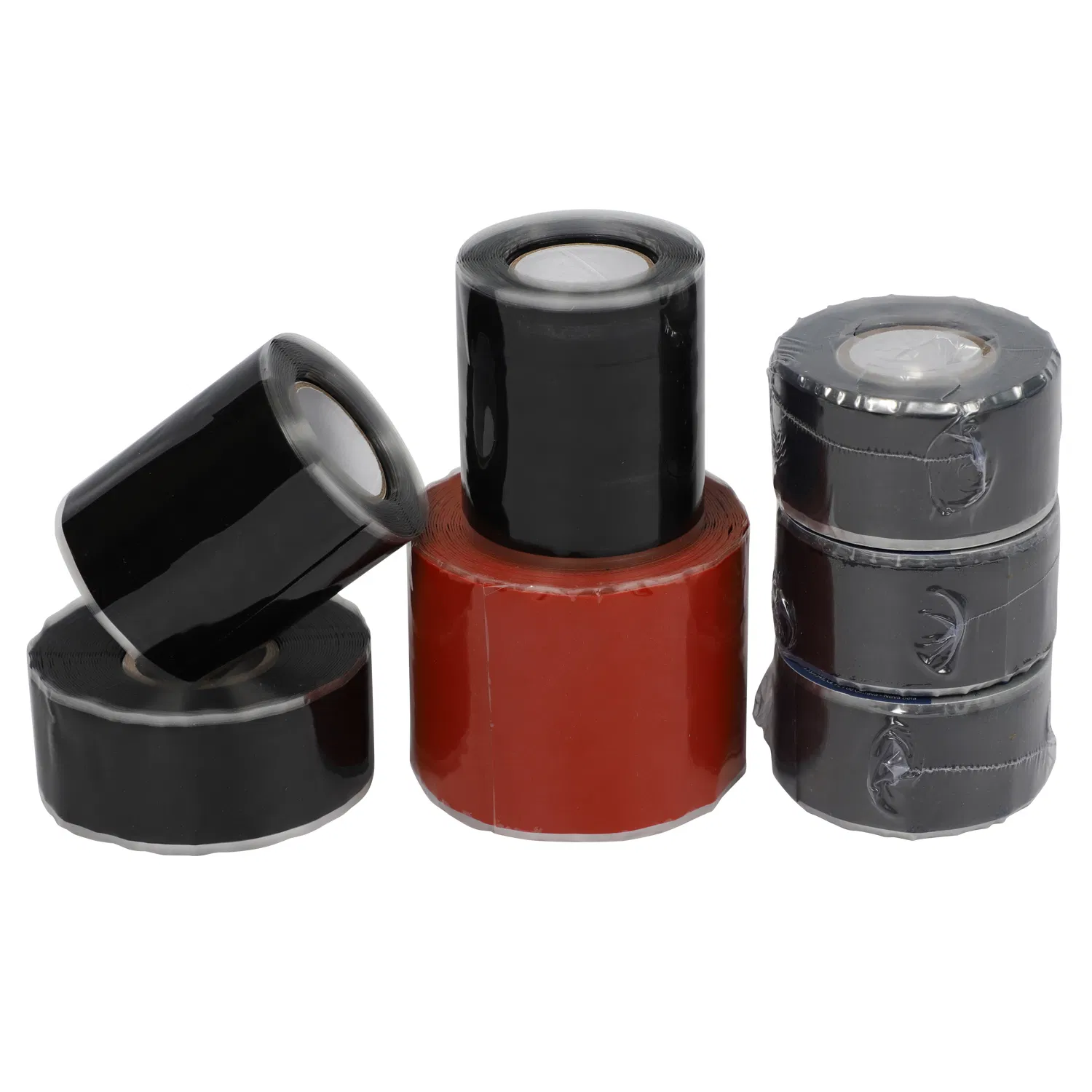

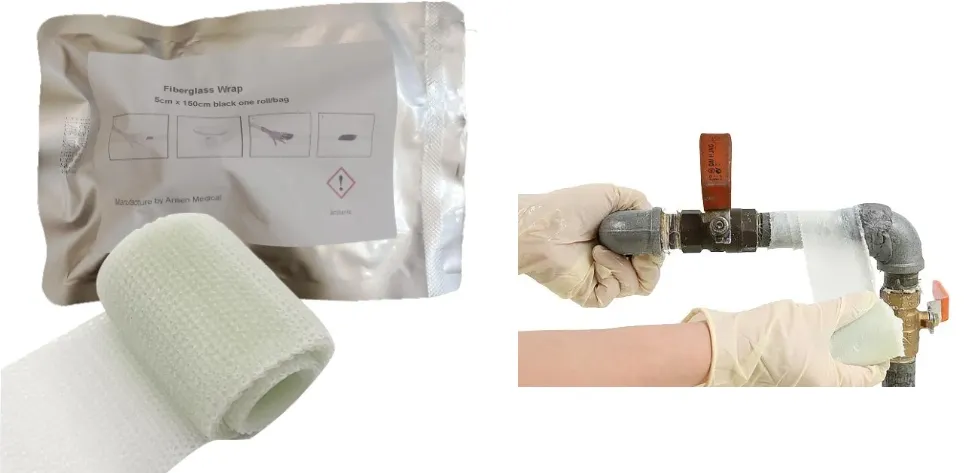

Sealing Products
Sealing Product (Repairing Leaking Point) + Bandage (Reinforcing Pipe)

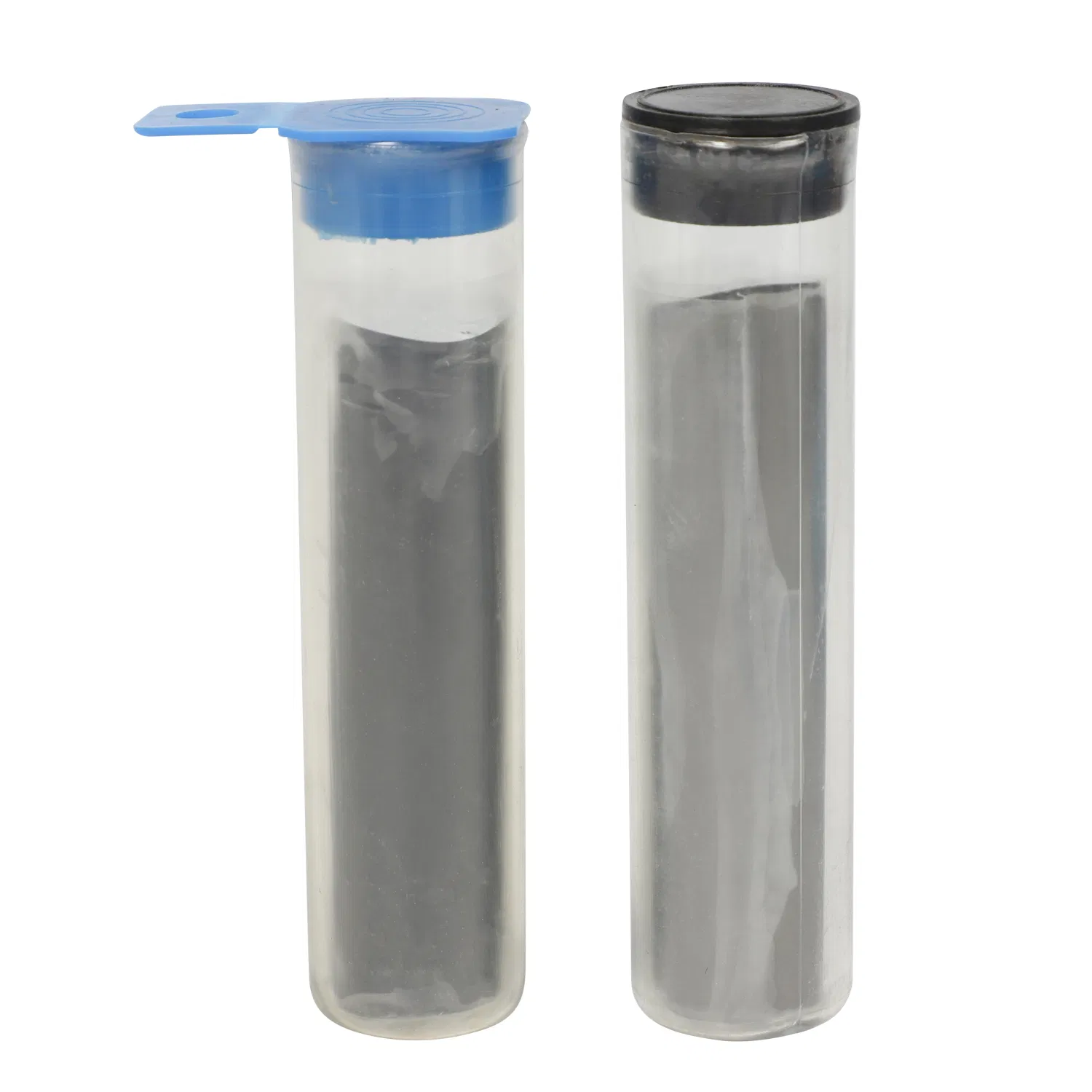

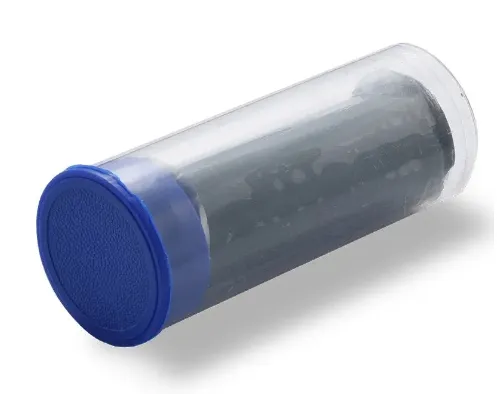

Epoxy Putty

Epoxy Putty offers a quick and easy solution for creating watertight seals around leaking faucets and filling cracks and holes in a pipe.

It is also recommended that you use other sealing products to replace the putty for specific leak requirements.

04

Product Parameters

Product Name Size Available Kit Accessories Colors
Water Activated Polyurethane Resin Repair Tape 50MM X 3.6M
50MM X 1.8M
1. 57g/28g epoxy putty
2. Glove
3. Silicone tape
White, Green, Red, Yellow, Blue, Black
Wrap Seal Repair Bandage 75MM X 3.6M
75MM X 2.7M
Pipe Wrapping Tape 100MM X 3.6M / 4.5M / 4.8M / 6.1M / 9.1M / 10M / 15M
Steel Putty Repair Bandage 125MM X 3.6M
125MM X 4.5M
05

Product Features

  • Repairs leak in 30 minutes
  • Applicable to pipes up to 18" (457 mm) diameter
  • Works on any metal or non-metal pipes
  • Repairs T-joints, elbows, and valve threads
  • Withstand pressure up to 10 Mpa (Min 12 layers)
  • Withstand temperature up to 200 °C (392 °F)
  • Safe for drinking water and resistant to chemicals
  • Reinforce and strengthen pipe structure

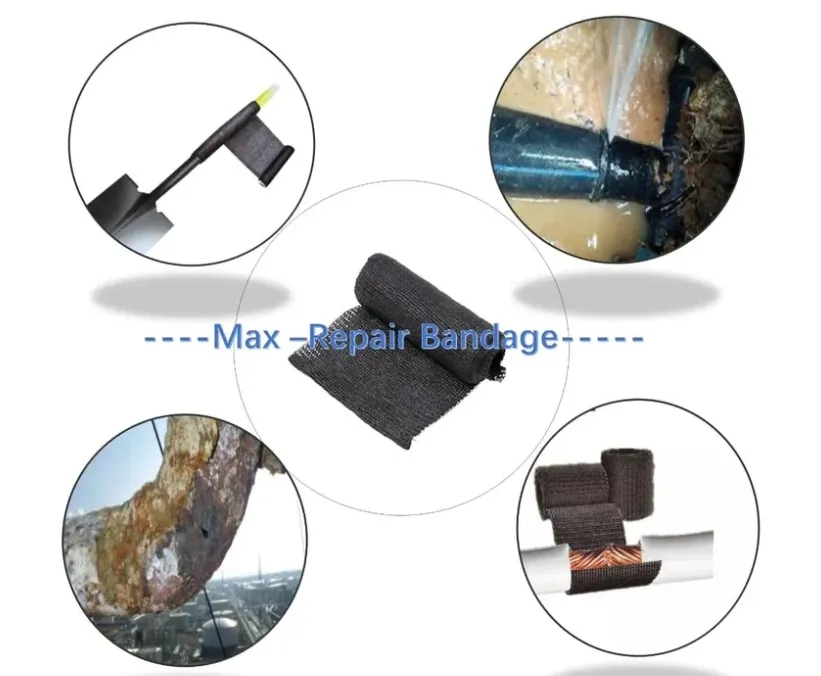

Feature Display
06

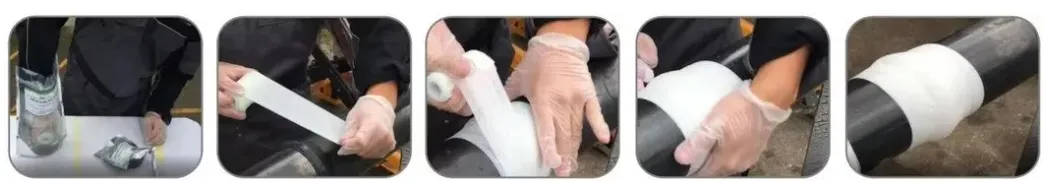

Installation Instructions

1
Identify leaking area and shut down pipes immediately.
2
Prepare surface by cleaning and roughening the pipe.
3
Put on enclosed latex gloves.
4
Apply Steel Putty to the leak site and mould.
5
Open foil pouch and immerse bandage in fresh water for 10 seconds.
6
Apply around damaged area, extending 50mm either side.
7
Work quickly as curing begins once out of water.
8
Pull each layer tightly, squeezing layers together to mould.
Installation Steps
07

Application

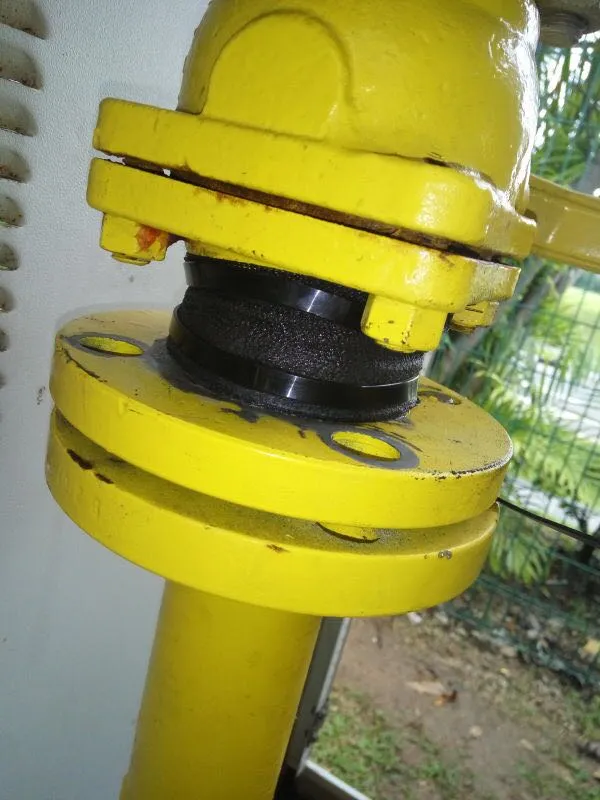

Application 1

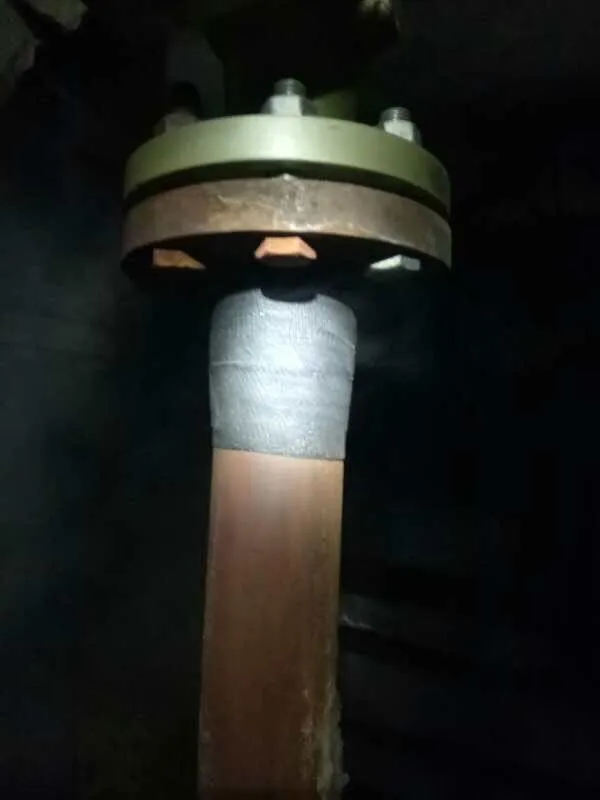

Application 2

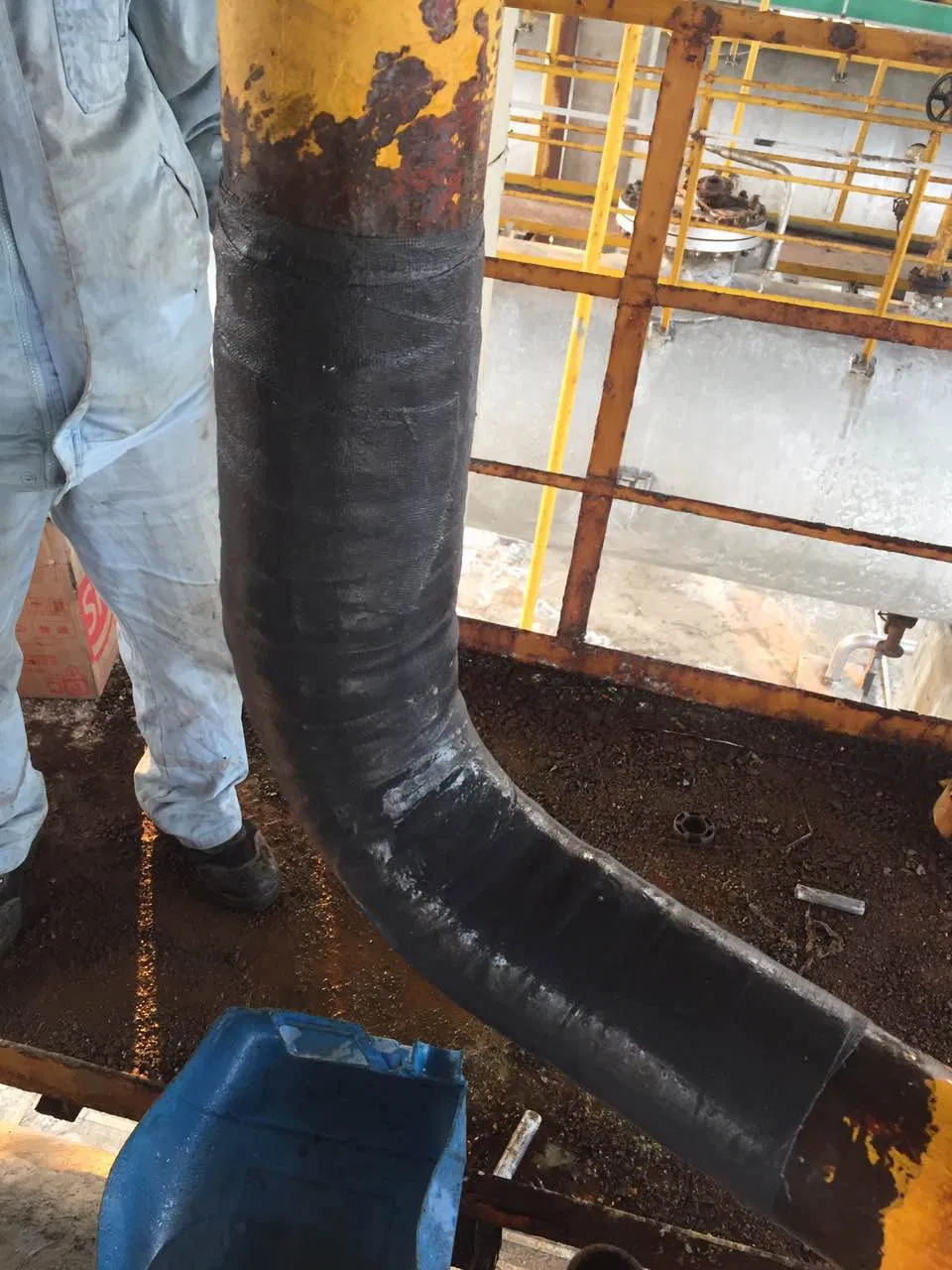

Application 3
08

Packaging & Shipping

Packaging 1
Packaging 2
Packaging 3
?

Frequently Asked Questions

1. How long does the pipe repair bandage take to cure?
The bandage typically cures within 10 to 30 minutes, allowing for a rapid emergency repair.
2. What is the maximum pressure this repair tape can withstand?
It can withstand pressure up to 10 MPa when at least 12 layers are wrapped tightly around the leaking area.
3. Is this product safe for drinking water pipes?
Yes, the water-activated polyurethane resin is safe for drinking water applications and resistant to most chemicals.
4. Can I use this on different pipe materials?
Absolutely. The repair bandage is effective on metal, plastic, rubber, wood, and other non-metal pipe surfaces.
5. What temperatures can the repair wrap handle?
The cured bandage can withstand temperatures up to 200 °C (392 °F).
6. Does it work on irregularly shaped fittings?
Yes, the knitted fiberglass structure is designed to be flexible, making it easy to wrap around elbows, T-joints, and valves.
