Short Description: Wrapping machine is a kind of packaging equipment that automatically wraps goods through winding film, which is widely used in warehousing and logistics, food and beverage, medicine and chemical, building materials and home furnishing industries. Its core value is to replace manual winding operations, solve the problems of waste of film materials, low packaging efficiency, and unstable fixation of goods in traditional packaging methods.
Using PLC control system servo drive technology, the packaging cycle of a single pallet can be as low as 20-40 seconds, and the processing capacity per hour can reach 90-180 pallets, which is 10-15 times more efficient than manual labor.
Adjustable tension control: The tension of the film rack can be adjusted steplessly in the range of 5-50N, matching the best winding force for goods of different strengths. Accurate height identification through photoelectric sensors increases utilization rate of film materials by 15%-20%.

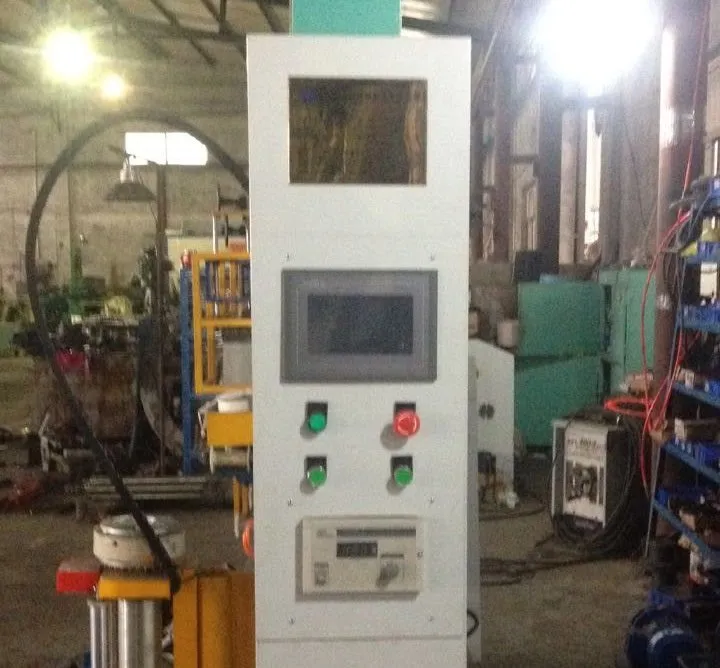

Adaptive cargo size: Automatically detect the height (300-2200mm) and width (500-1500mm) of goods through infrared sensors. Equipped with a 7-inch color touch screen, supporting 50 sets of commonly used packaging programs.
Heavy load stable frame: welded with high-quality steel, the turntable can bear up to 2000-5000kg. Equipped with emergency stop button, safety fence, and photoelectric hand guard, in line with CE and ISO 12100 international safety standards.
| Parameter Category | Standard Tray Winding Machine | Horizontal Winding Machine |
|---|---|---|
| Maximum Load | 2000kg (customizable to 5000kg) | 3000kg (customizable to 8000kg) |

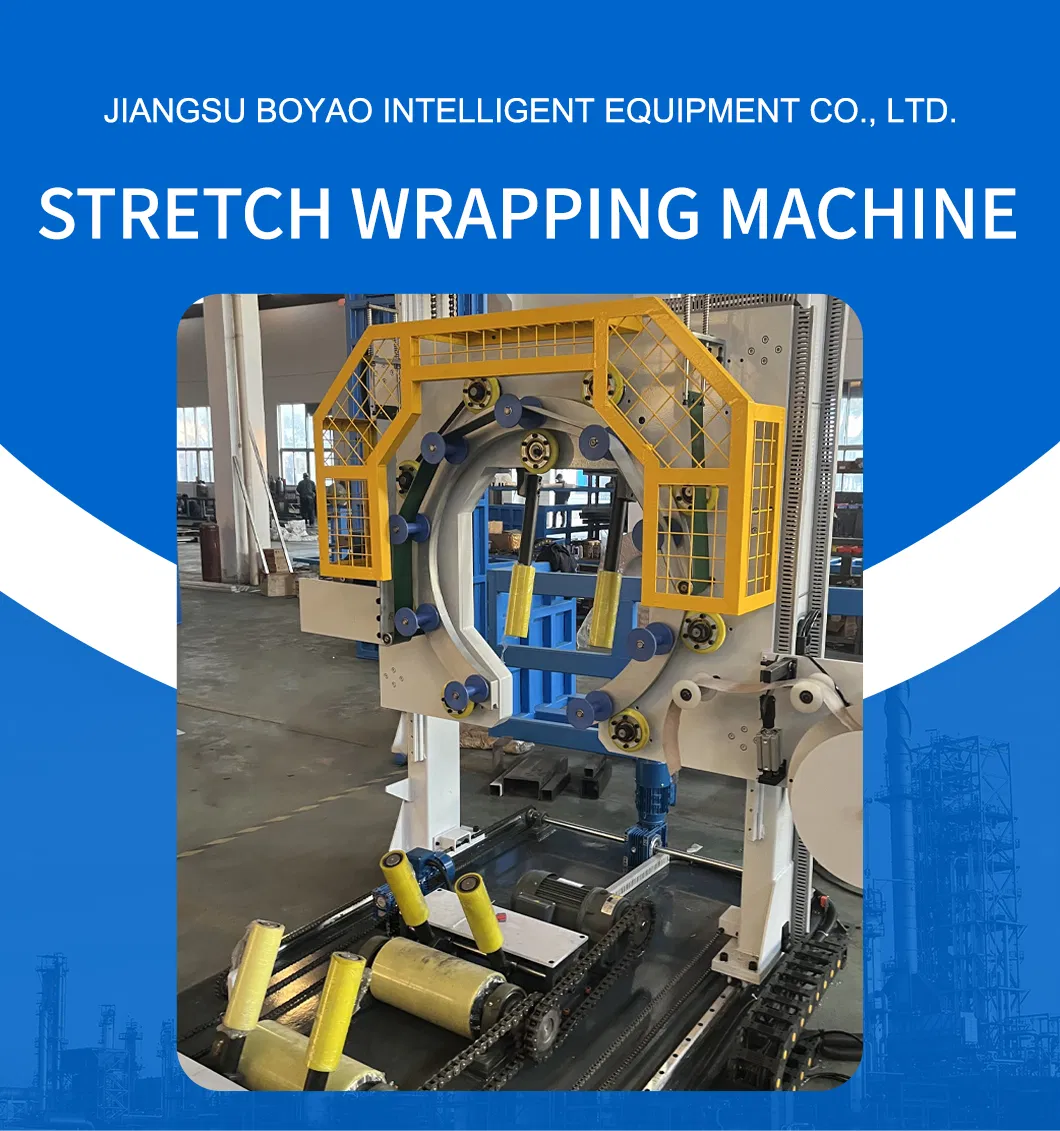

| Package Size Range | L 500-1500mm, W 500-1200mm, H 300-2200mm | D 100-600mm, L 500-3000mm |
| Winding Film Width | 500mm/750mm (Optional) | 500mm/750mm (Optional) |
| Packing Speed | 20-40 sec/Torr | 15-30 sec/piece |
| Control Mode | PLC + Touch Screen | PLC + Touch Screen / Key Control |
| Safety Certification | CE, ISO 9001 | CE, ISO 14001 |
