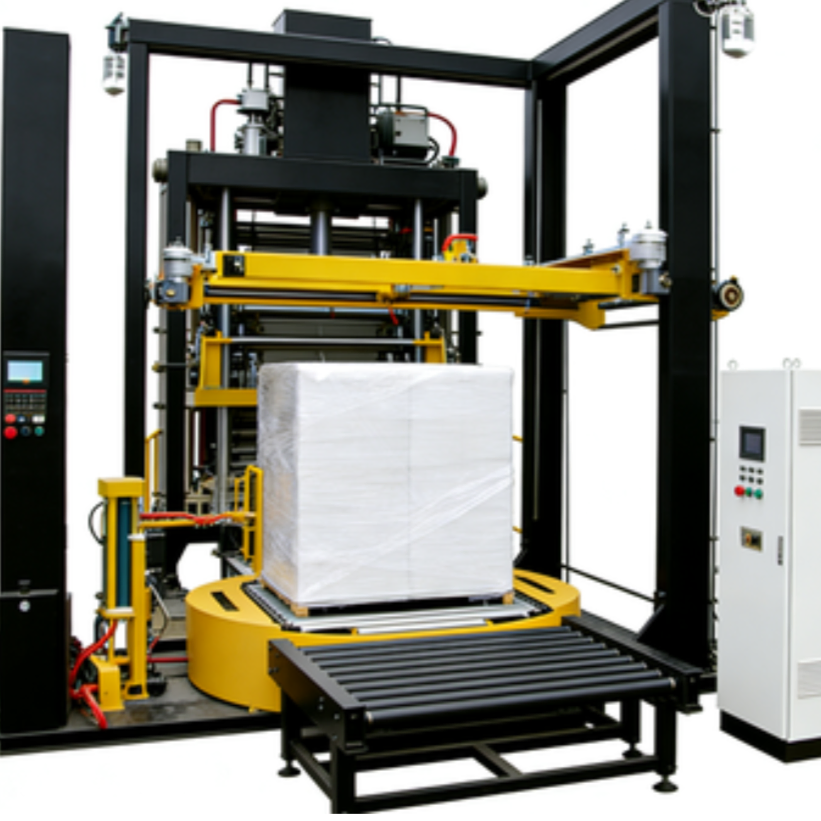

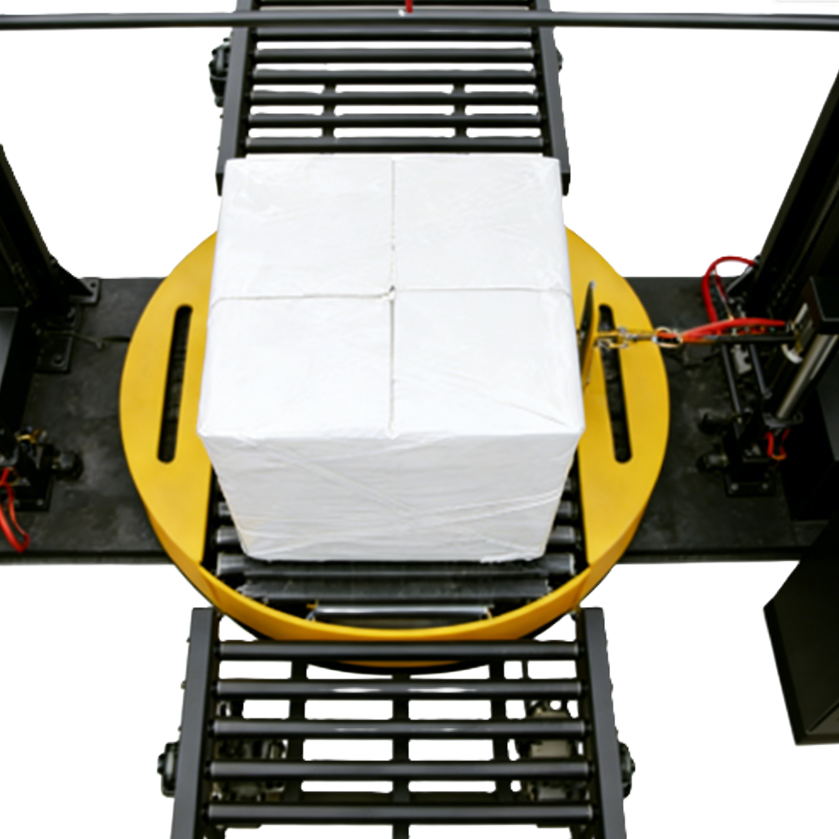

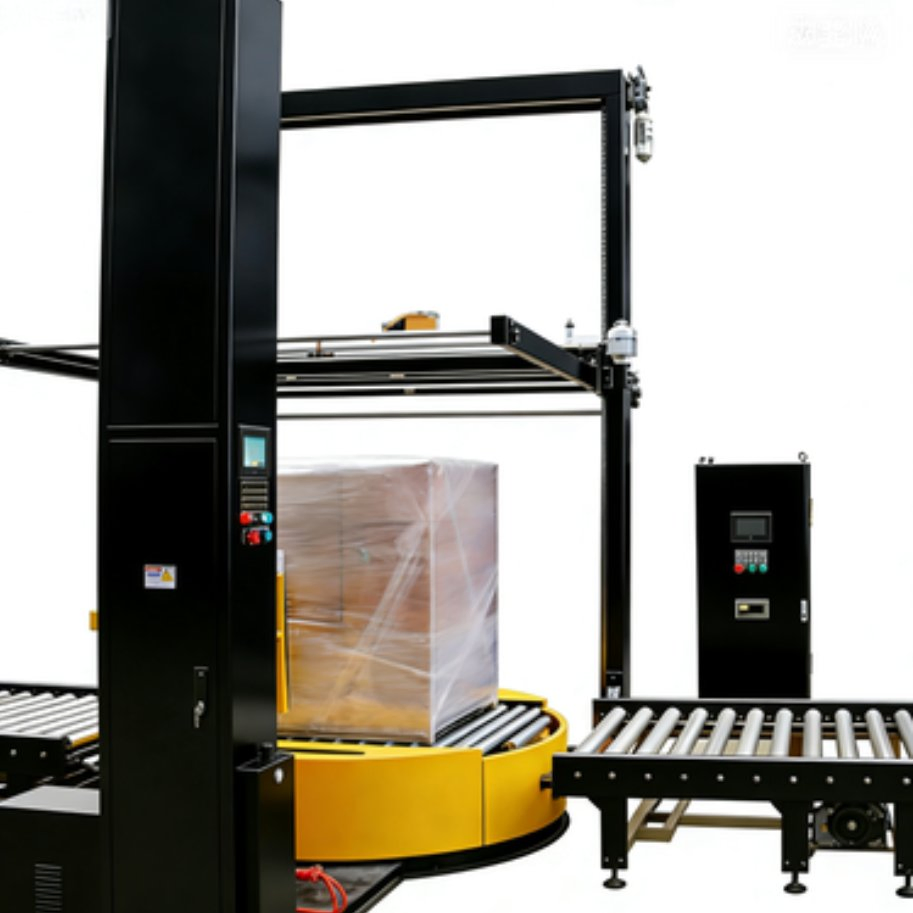

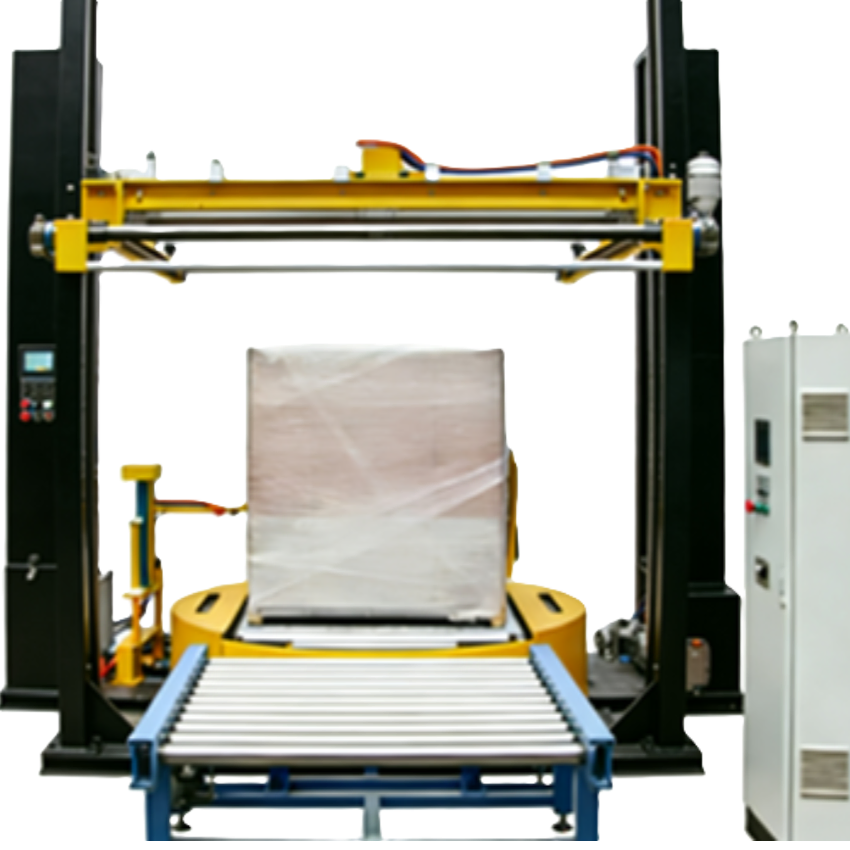

Wrapping machine is a kind of packaging equipment that automatically wraps goods through winding film, which is widely used in warehousing and logistics, food and beverage, medicine and chemical, building materials and home furnishing industries. It ensures the stability and safety of goods in the process of transportation and storage.
Using PLC control system servo drive technology, the packaging cycle of a single pallet can be as low as 20-40 seconds, processing 90-180 pallets per hour, which is 10-15 times more efficient than manual labor. Supports automatic film application and breaking without manual intervention.
Adjustable tension control (5-50N) matches the best winding force for different goods. Intelligent layer settings allow 2-5 top/bottom layers and 1-10 main layers. Film-saving design increases utilization by 15%-20% through photoelectric sensors.

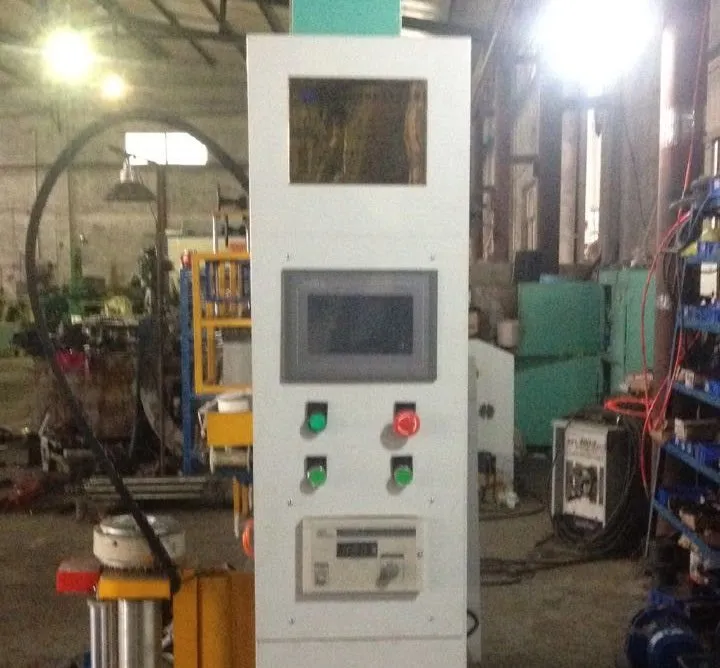

Automatically detects cargo height (300-2200mm) and width (500-1500mm) via infrared sensors. Equipped with a 7-inch color touch screen supporting 50 sets of packaging programs for easy operation.

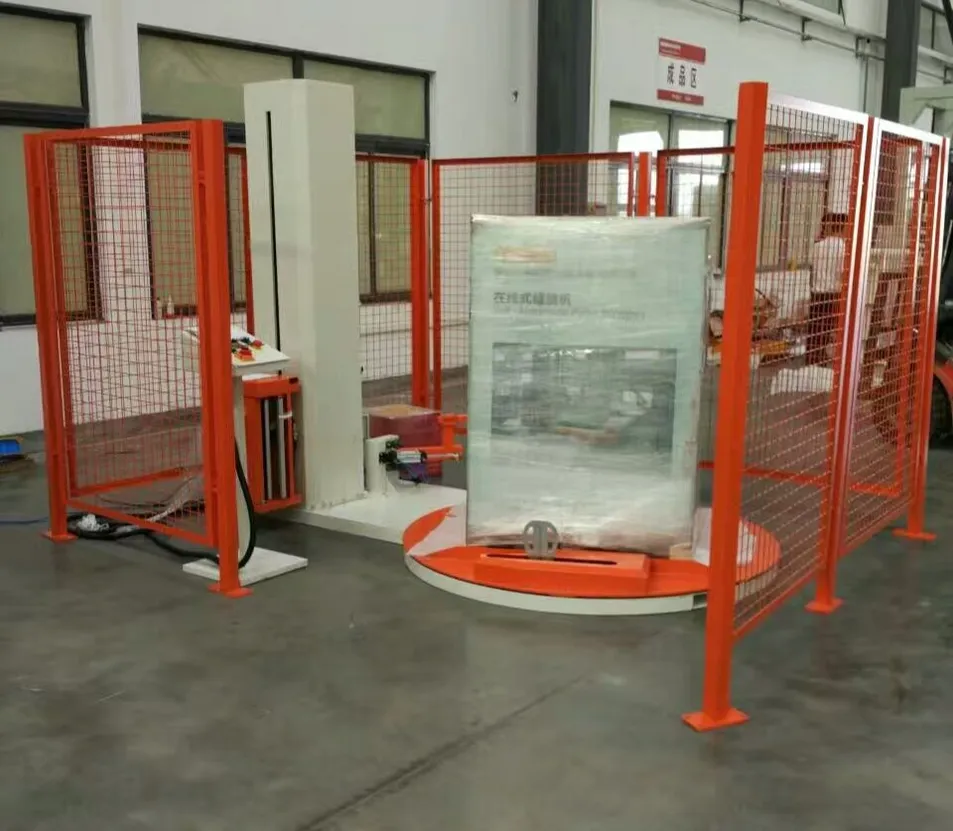

Heavy load stable frame can bear 2000-5000kg. Comprehensive safety features include emergency stop buttons, safety fences, and photoelectric guards, complying with CE and ISO international safety standards.

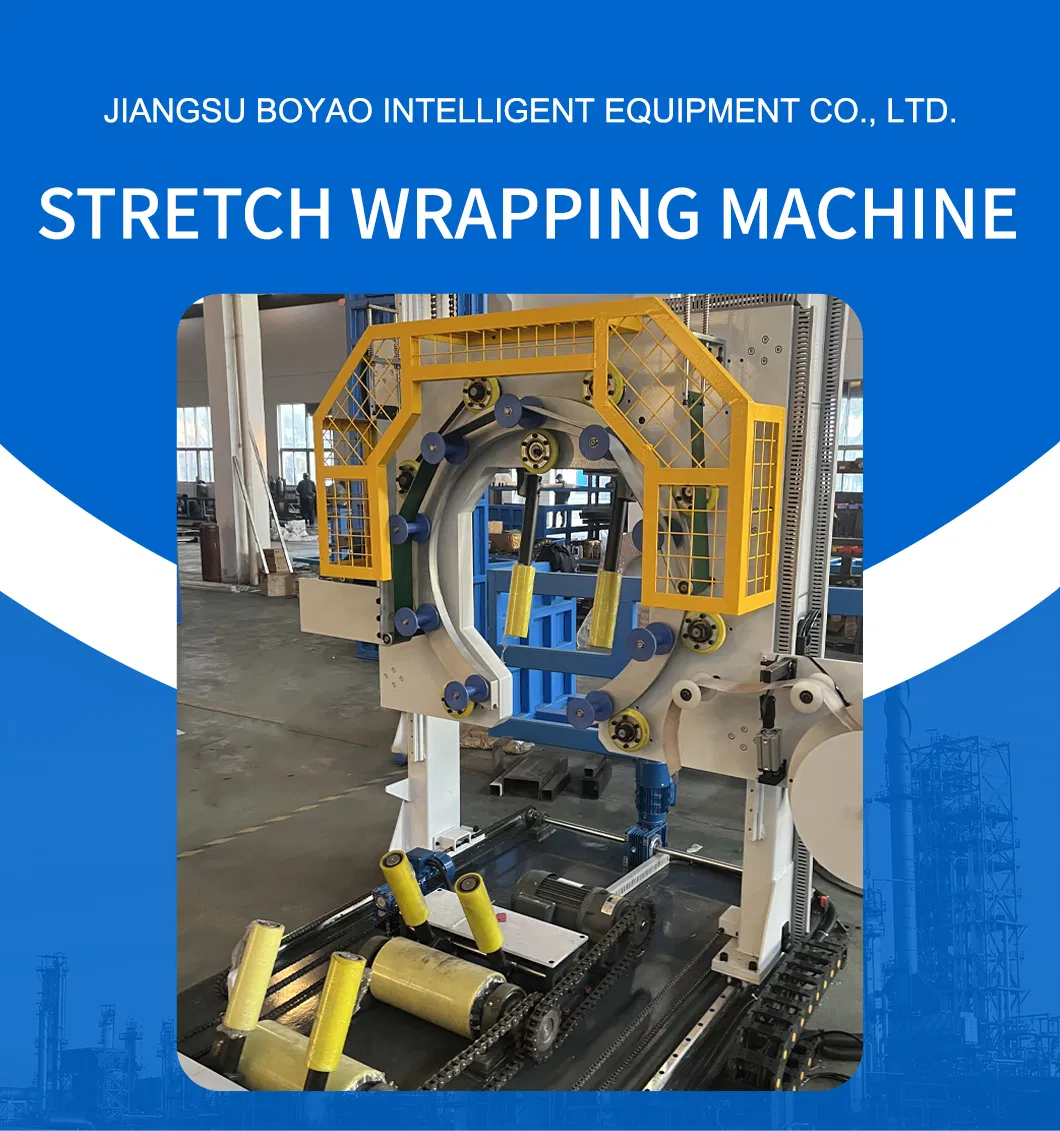

| Parameter Category | Standard Tray Winding Machine | Horizontal Winding Machine |
|---|---|---|
| Maximum Load | 2000kg (Customizable to 5000kg) | 3000kg (Customizable to 8000kg) |
| Package Size Range | L:500-1500, W:500-1200, H:300-2200mm | D:100-600, L:500-3000mm |
| Winding Film Width | 500mm/750mm | 500mm/750mm |
| Packing Speed | 20-40 sec/pallet | 15-30 sec/piece |
| Tension Range | 5-50N | 10-60N |
| Control Mode | PLC + Touch Screen | PLC + Touch Screen |
| Power Supply | 220V/380V, 1.5-3kW | 380V, 2.2-4kW |
| Safety Certification | CE, ISO 9001 | CE, ISO 14001 |
