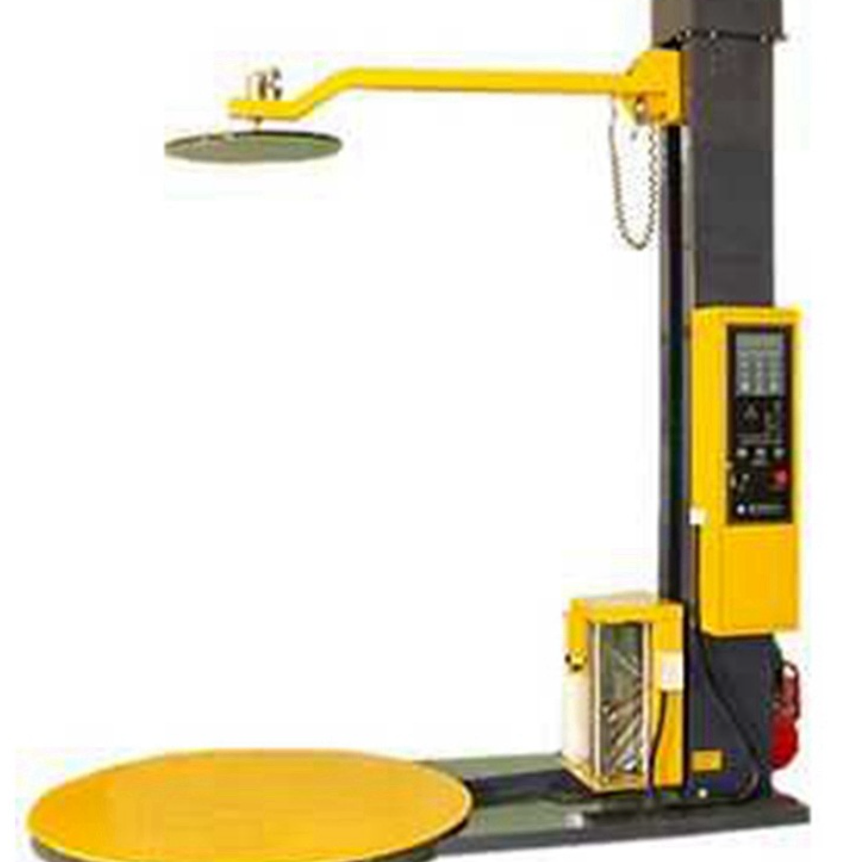

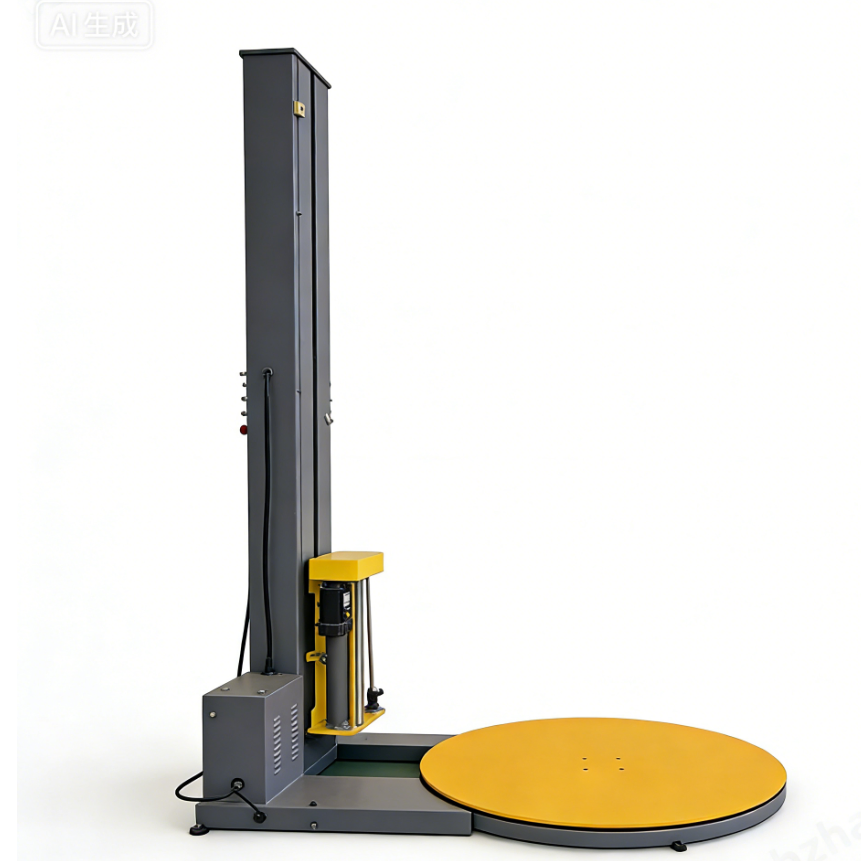

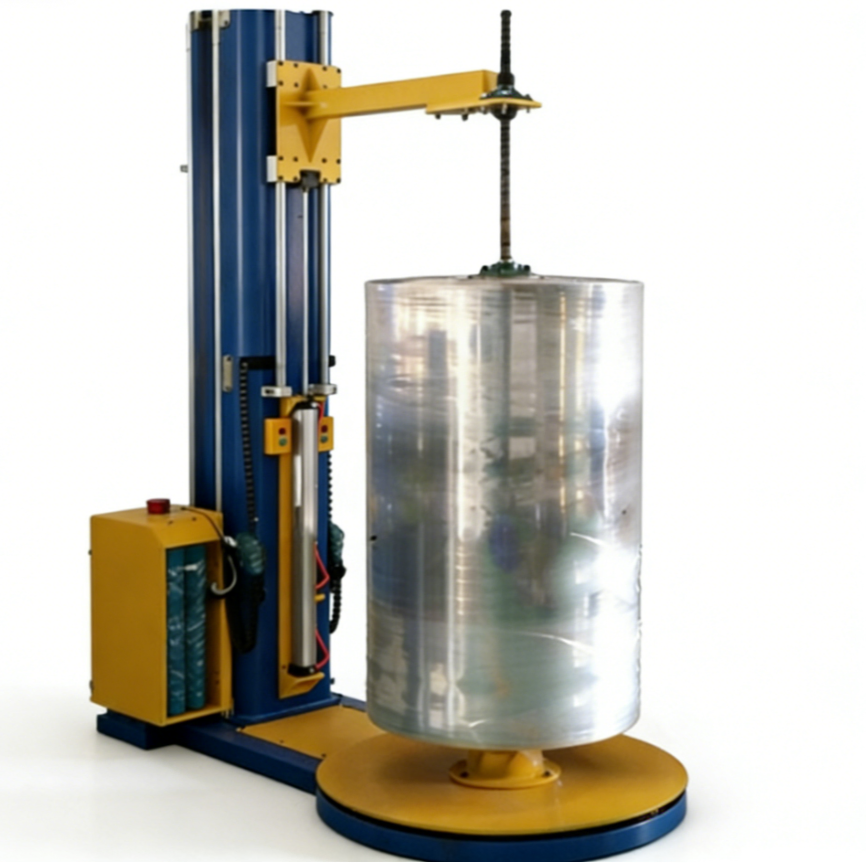

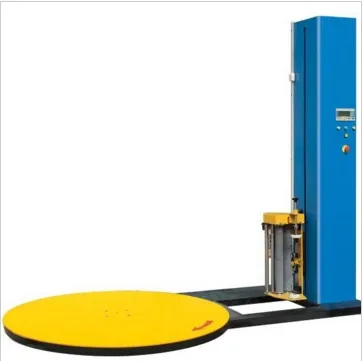

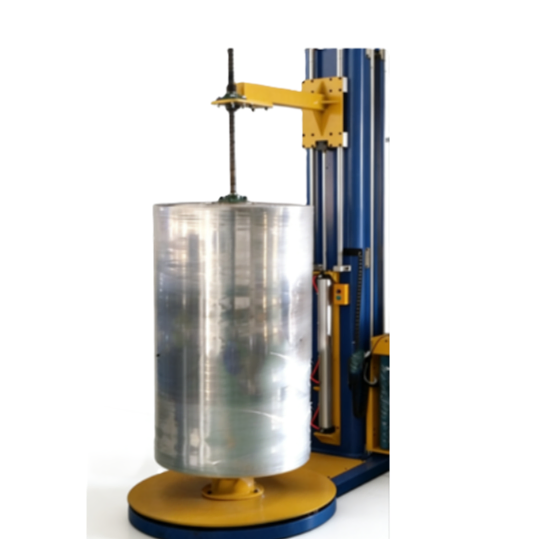

Wrapping Machine: An advanced packaging equipment that automatically secures goods through winding film. Widely utilized in warehousing, logistics, food & beverage, medical, chemical, and building materials. It replaces manual operations, reducing film waste and improving packaging efficiency and stability for safe transportation.

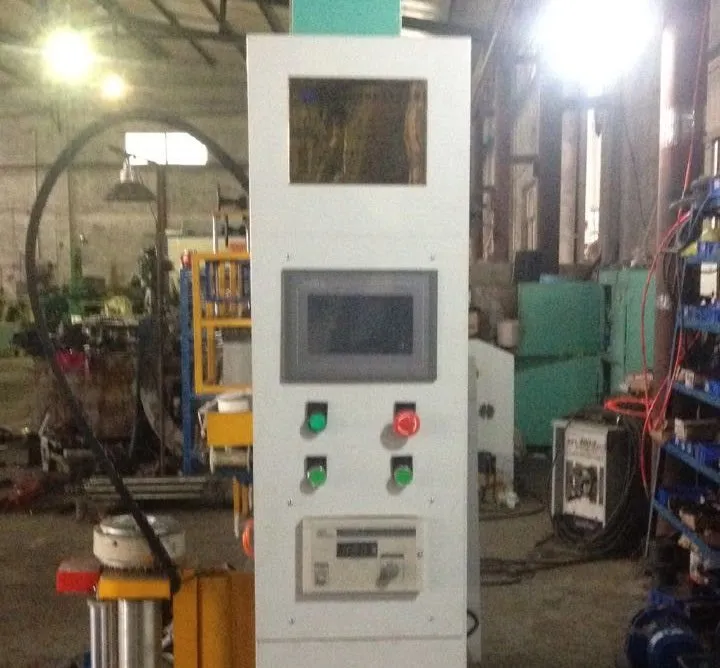

Utilizing PLC control and servo drive technology, the cycle for a single pallet is only 20-40 seconds. Processing capacity reaches 90-180 pallets per hour, delivering 10-15 times higher efficiency than manual labor. Supports automatic film application and breaking.
Adjustable tension control (5-50N) ensures the perfect winding force for various goods, from fragile items to heavy machinery. Intelligent layer settings allow customized winding (1-10 layers) to protect key areas, while photoelectric sensors optimize film use by 15%-20%.

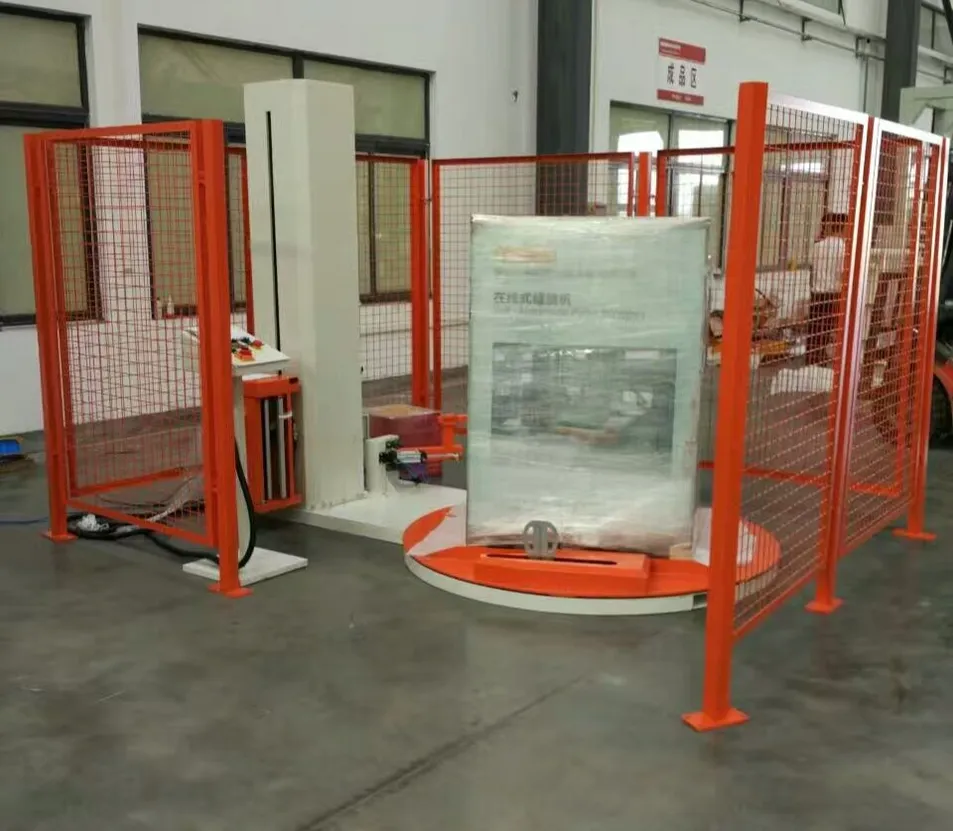

Welded with high-quality steel, the turntable supports 2000-5000kg. Safety features include emergency stop buttons, safety fences, and photoelectric hand guards, complying with CE and ISO 12100 standards.
| Parameter Category | Standard Tray Winding Machine | Horizontal Winding Machine |
|---|---|---|
| Maximum Load | 2000kg (Customizable to 5000kg) | 3000kg (Customizable to 8000kg) |
| Package Size Range | L:500-1500mm, W:500-1200mm, H:300-2200mm | D:100-600mm, L:500-3000mm |
| Winding Film Width | 500mm/750mm (Optional) | 500mm/750mm (Optional) |
| Packing Speed | 20-40 sec/Pallet | 15-30 sec/Piece |
| Control Mode | PLC + Touch Screen | PLC + Touch Screen |
| Power Requirements | 220V/380V/50Hz, 1.5-3kW | 380V/50Hz, 2.2-4kW |
