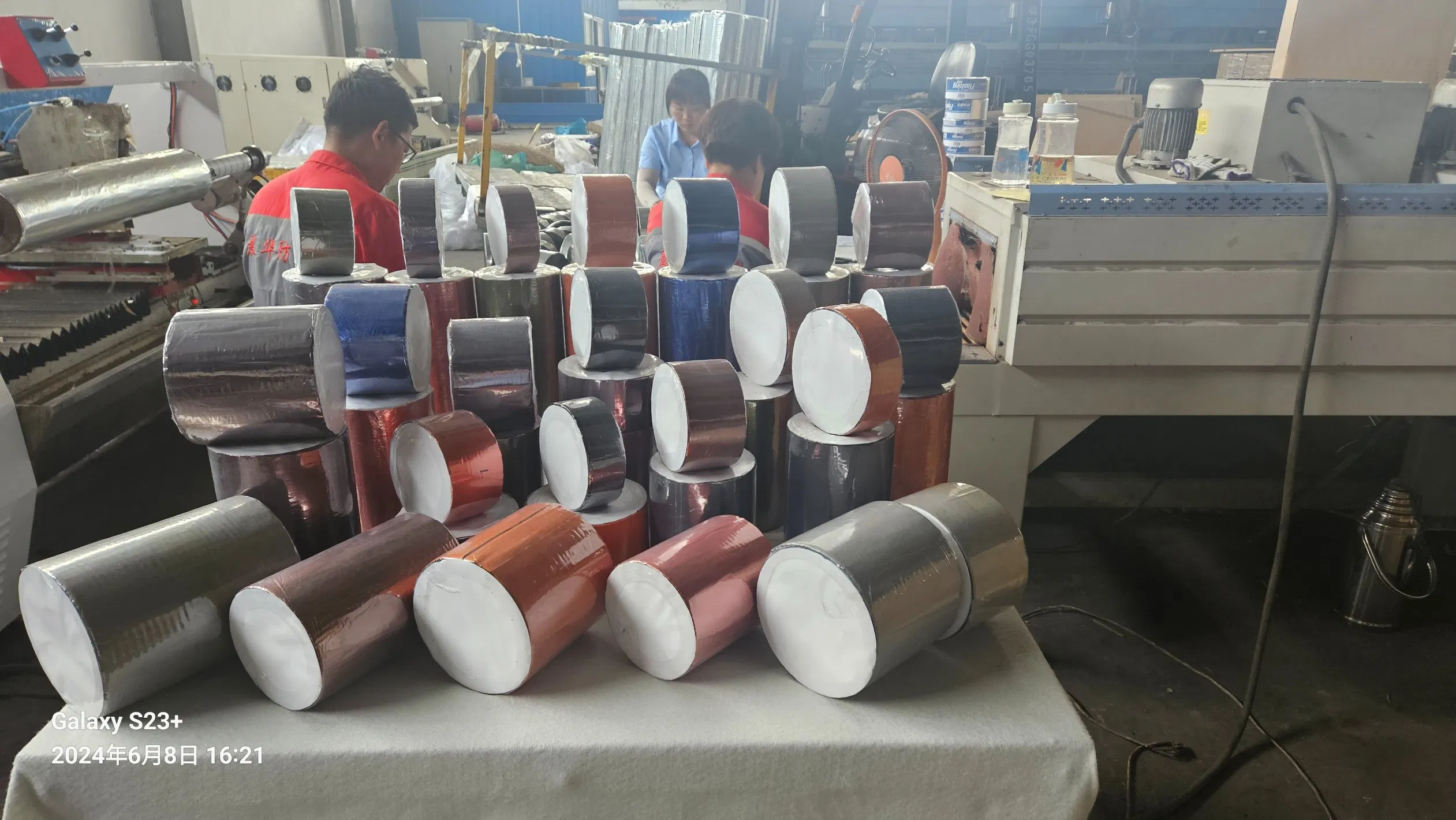

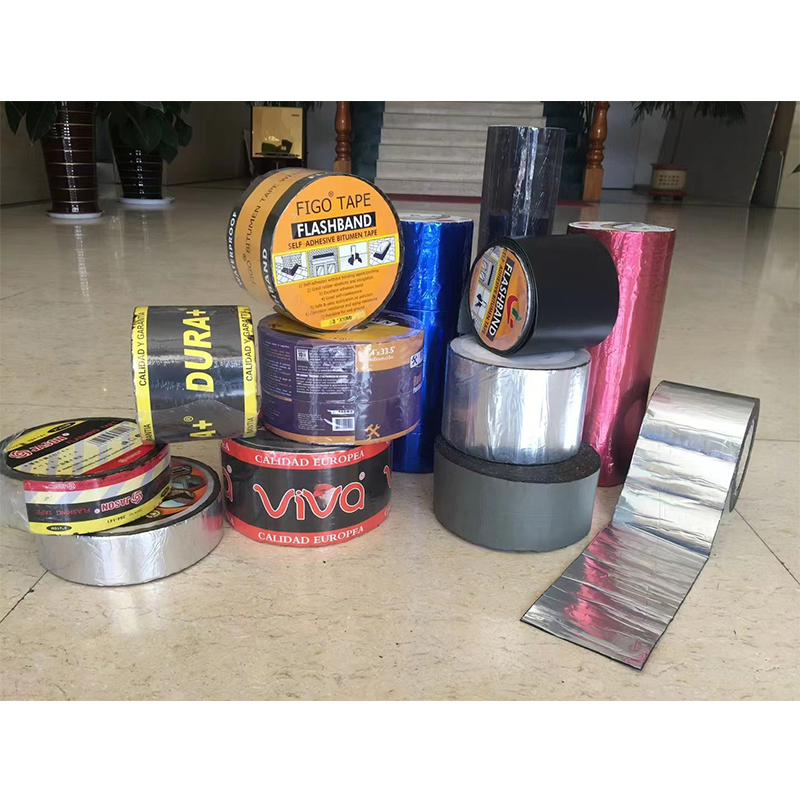

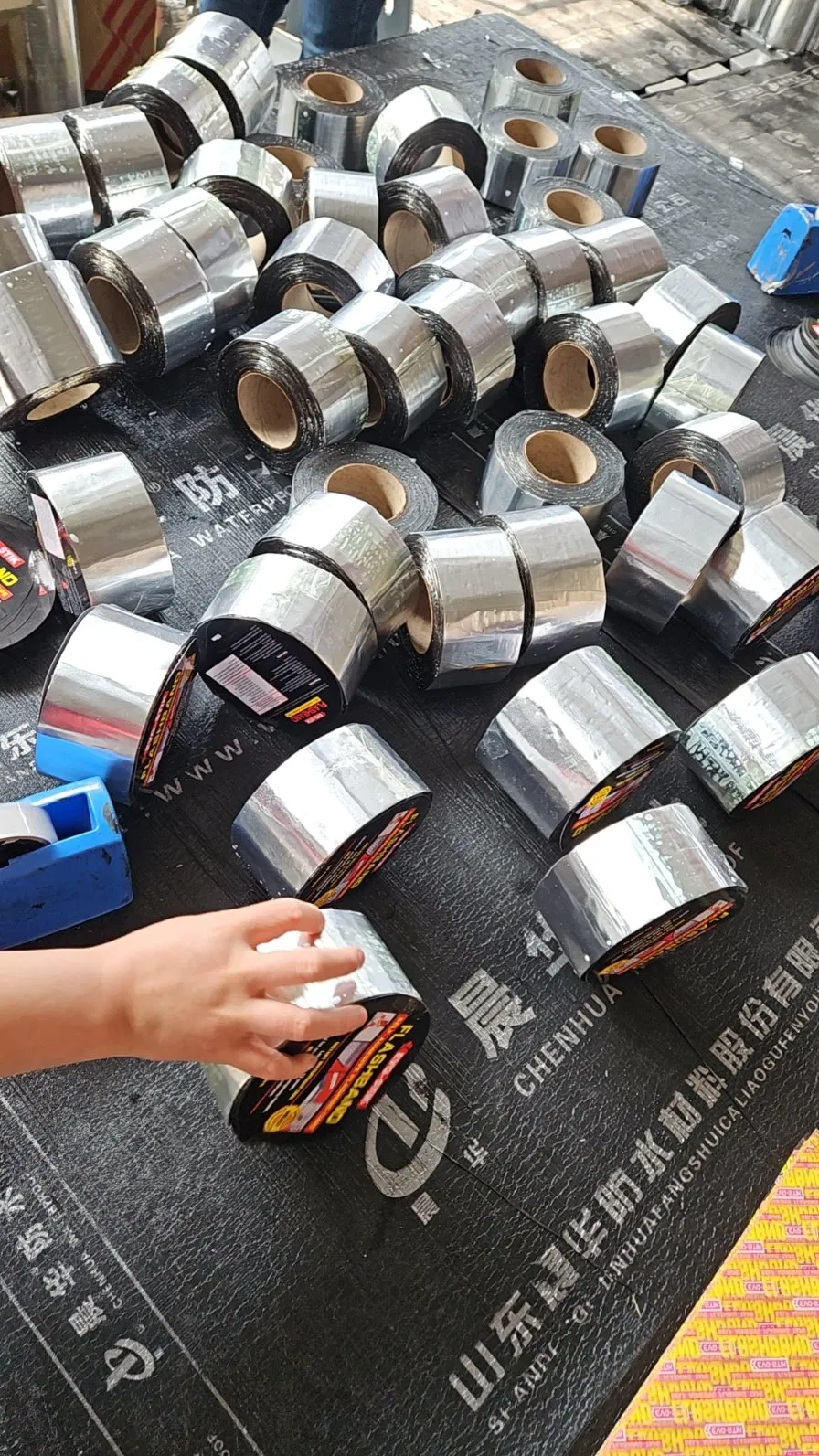

Premium Aluminum Foil Leak Barrier Wrap with Self-Adhesive Backing

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview & Basic Info
Model NO.
CH-BT
Project Capability
Total Solution for Projects
Service Life
> 10-20 years
After-Sale
Online Technical Support
Thickness
1.0mm - 3.0mm
OEM
Available
Surface
Anti-UV Aluminum / Films
Width
50mm - 300mm+

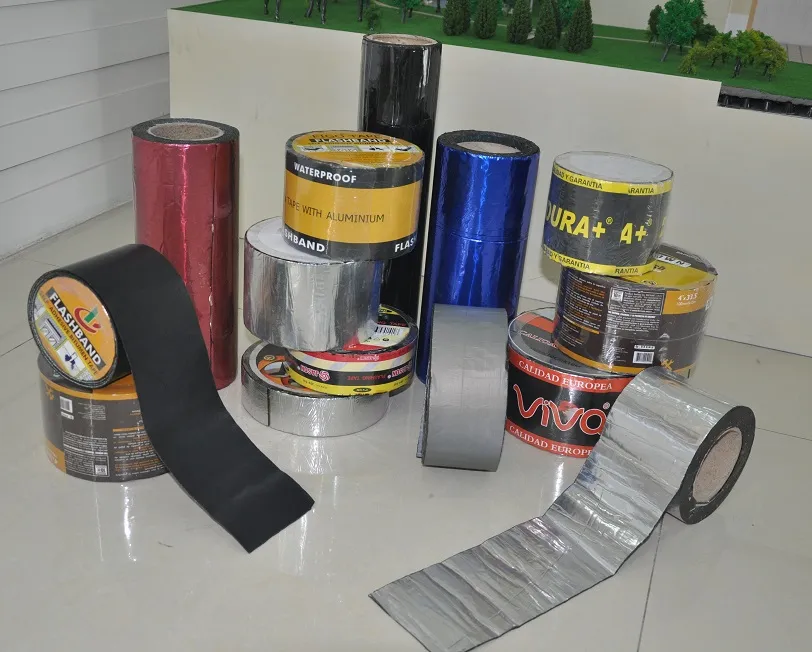

Premium Aluminum Foil Leak Barrier
Product Specifications

Professional Handbook on Asphalt Waterproofing Standards and Specifications.

ParameterDetails
Top CoverAnti-UV Aluminum film or foil (different colors) / other films
Thickness (mm)1.0, 1.2, 1.5, 2.0, 2.5, 3.0...
Width (mm)50, 75, 100, 150, 200, 300...
ReinforcementAvailable without (1.0-3.0mm) or with nonwoven (1.2-4.0mm)
AdhesiveSBR Modified Bitumen

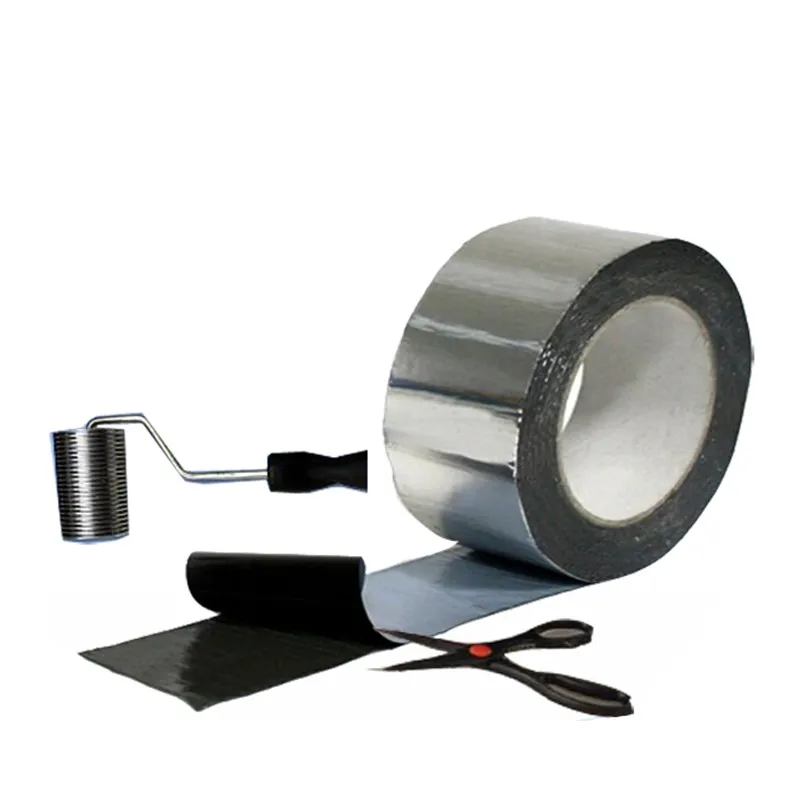

Waterproofing Tape Detail
Key Features

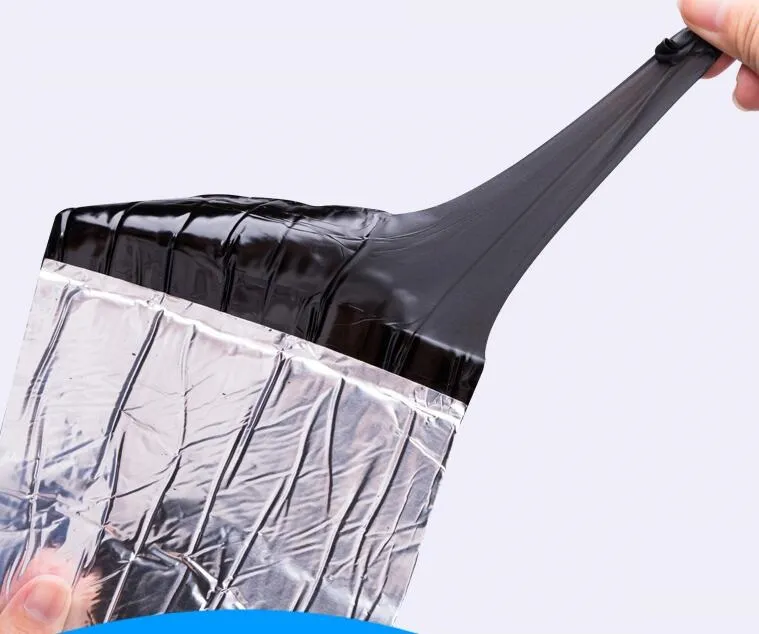

Feature Display
Self-Adhesion: Easy application without torch; zero pollution.
Elasticity: Excellent rubber elasticity, elongation, and self-healing properties.
Durability: Sticks permanently; warehouse life >5 years; application life >20 years.
Moisture Seal: Effectively seals out moisture to prevent mould growth.

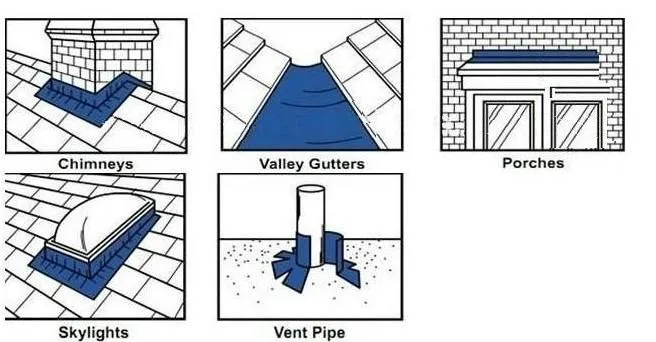

Application Scope
Outdoor Structures Weatherproof garages, tool sheds, glasshouses, and outhouses.
Vehicles & Tanks Seal leaks in caravans, cars, trucks, metal water tanks, or troughs.
Roofing & Gaps Seal window sills, sliding doors, air vents, chimneys, and corrugated roofing.
Maintenance Repair downpipes, guttering, and joints between carports and walls.
Application Scope
Installation Guide
1
Clean surface: Ensure it is free from dirt, dust, and contamination.
2
Preparation: Remove loose material using a scraper or wire brush.
3
Temperature: Apply between +5°C to +45°C.
4
Cut: Unwind and cut the tape to the required length.
5
Apply: Peel the liner and press firmly; ensure no air bubbles are trapped.
6
Seal: Use a roller on edges and overlaps (minimum 25mm overlap).

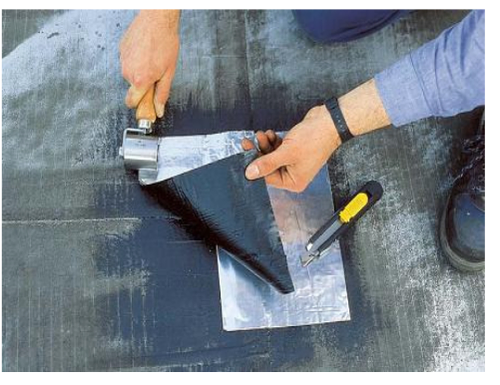

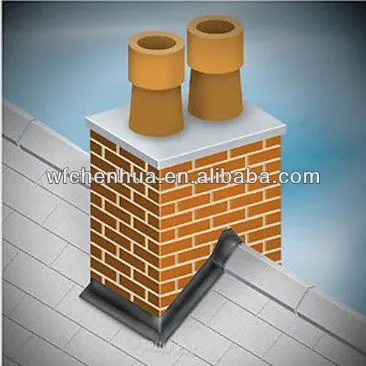

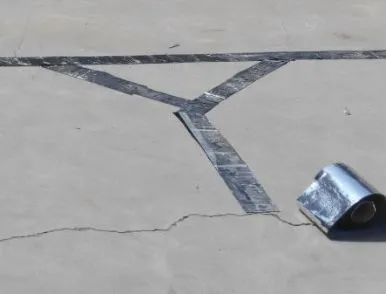

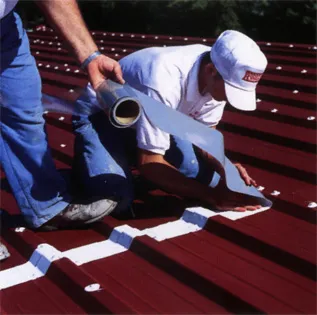

Application Cases

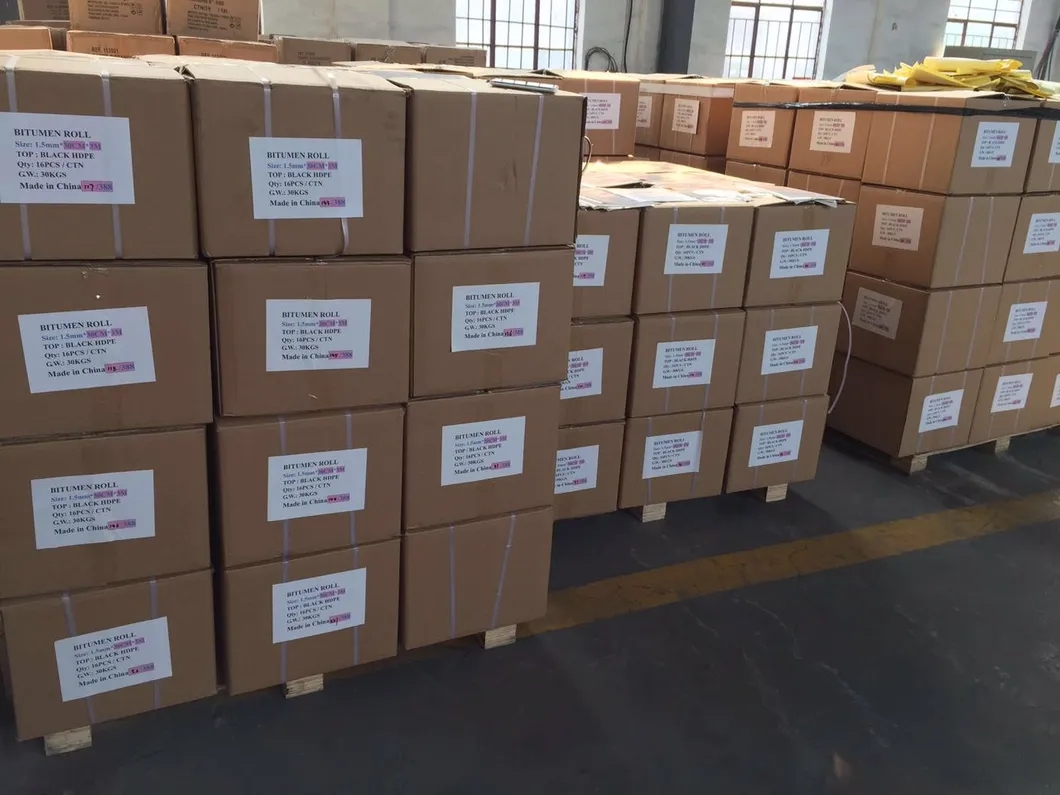

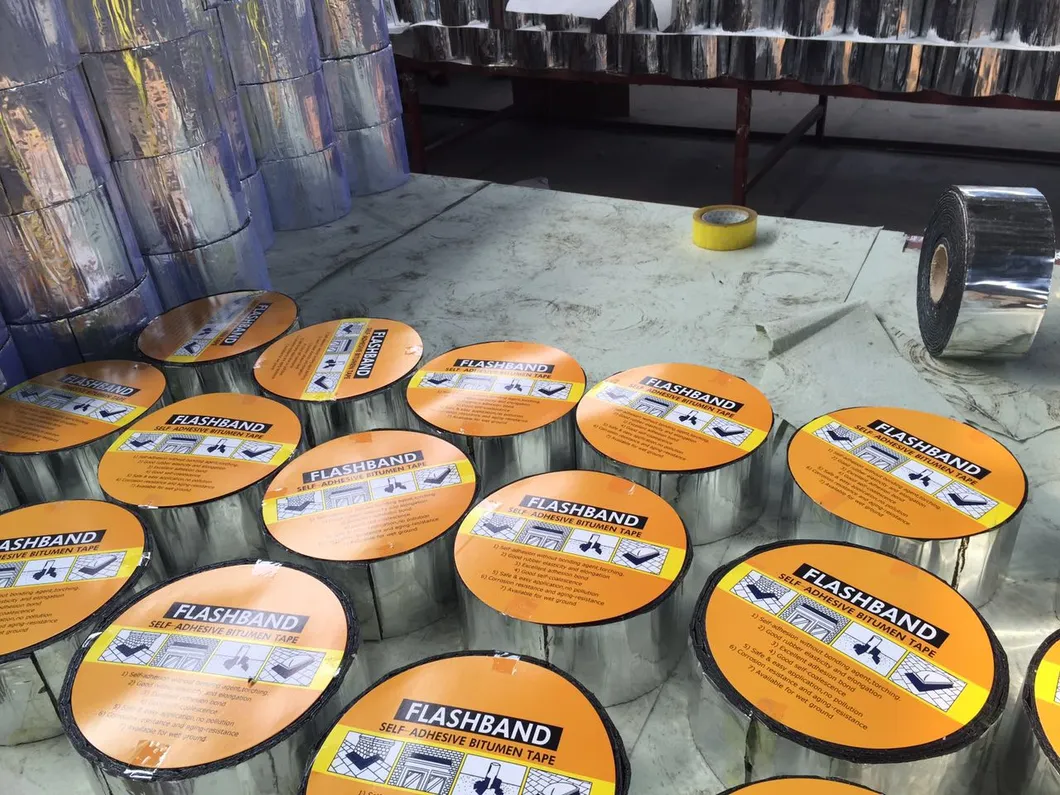

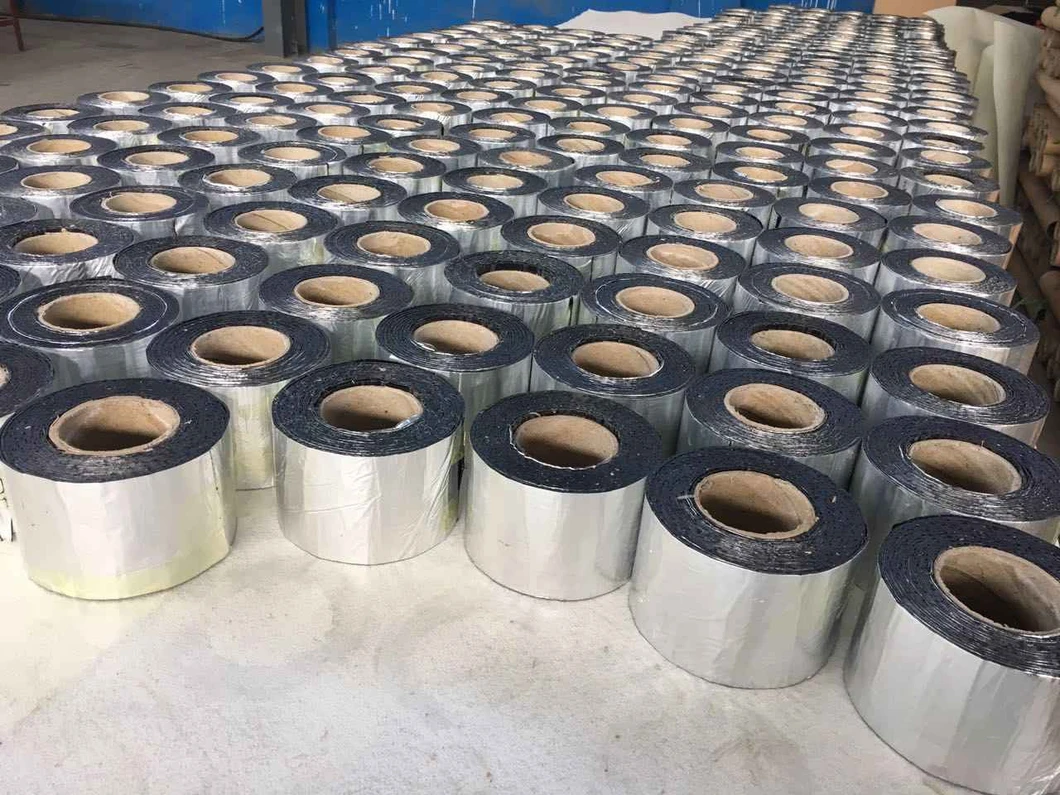

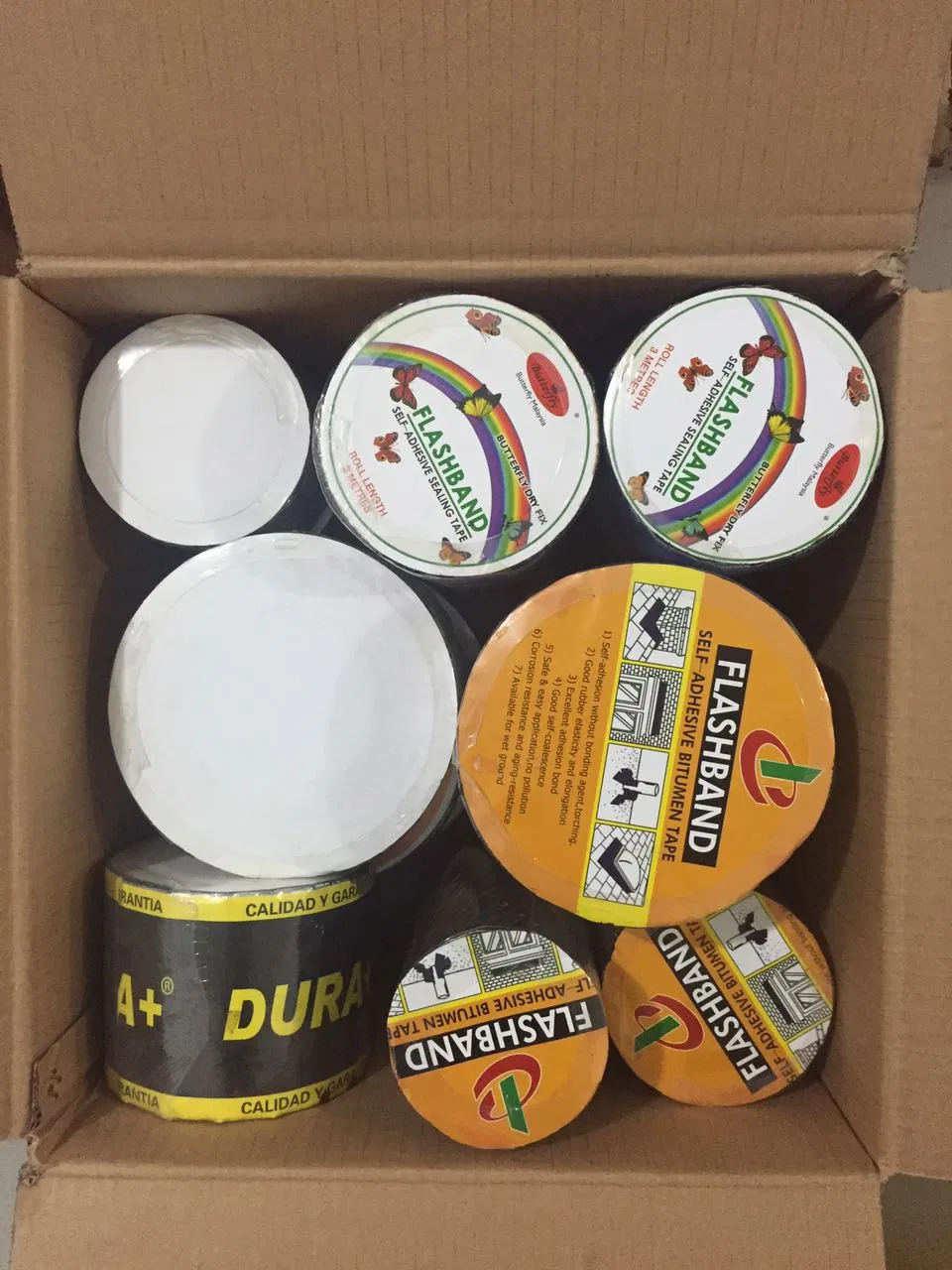

Transportation and Packing
Loading TypeDetails
LCLSeaworthy plywood pallet packing.
20FCL / 40GPLimited weight: 28 tons; with or without pallets based on policy.
Manufacturing Excellence

Operating since 1994, the facility spans 70,000 square meters with state-of-the-art technology. Key offerings include:

  • Bitumen Waterproofing Membranes (SBS/APP)
  • Self-adhesive Bitumen Tapes
  • Butyl Sealing Membranes
  • PVC & TPO Waterproofing Membranes
  • Production Line Machinery
Frequently Asked Questions
Q: What is the estimated lifespan of the waterproofing tape?
A: The product is designed for longevity, typically lasting more than 10 to 20 years after application, depending on environmental conditions.
Q: Is a heating torch required for installation?
A: No, this is a self-adhesive membrane. It does not require a torch, making it safer and pollution-free during installation.
Q: Can it be applied on damp surfaces?
A: For the best adhesion, the surface must be clean and dry. Removing dust and loose material is essential for a permanent seal.
Q: What are the ideal temperatures for application?
A: The ideal application temperature range is between +5°C and +45°C.
Q: Can the tape be used on corrugated metal roofing?
A: Yes, it is highly effective for sealing gaps in corrugated roofing sheets, chimneys, and air vents.
Q: How should the rolls be stored before use?
A: Rolls should be stored in a cool, dry place. The warehouse life is more than 5 years without performance degradation.
