Peek Interference Screw System with Sheath-7-10mm for Ligament Reconstruction by Meditech

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
R001.001
Guarantee Period
One Year
Group
Adult & Children
Product Name
Peek Interference Screw System
Application
for Graft Fixation in Ligament Reconstruction
Function
Complete Implant and Fixation Surgical System
MOQ
1 Set
Certificate
CE ISO13485
OEM
Available
Transport Package
PE Inner Bag + Carton
Product Description

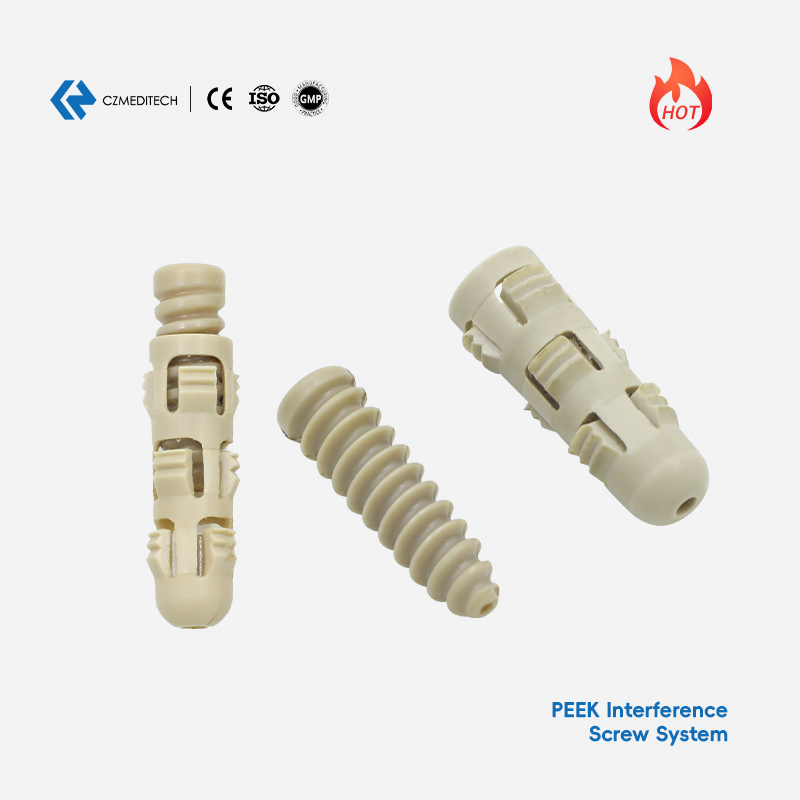

PEEK Interference Screw System Component

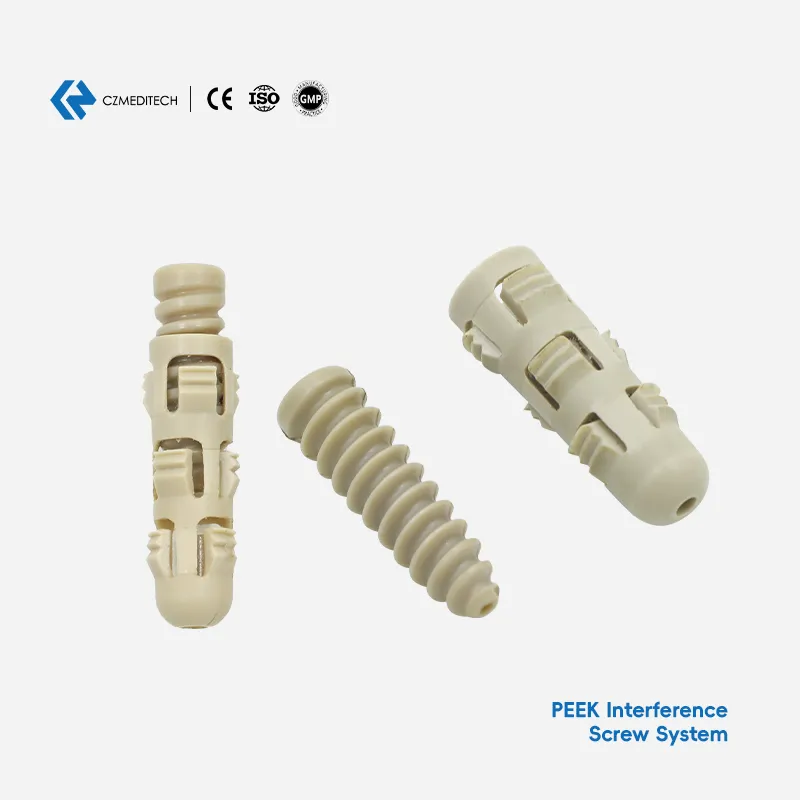

PEEK Interference Screw System View
The PEEK Interference Screw System with Sheath provides an advanced solution for graft fixation in ligament reconstruction procedures. The system features a unique sheath that protects the soft tissue graft during screw insertion, reducing friction and potential damage while ensuring uniform fixation pressure. Made from medical-grade PEEK, both sheath and screw are radiolucent and biocompatible. Available in four sizes (7mm to 10mm sheath diameters with matching screws), this system offers versatility for various graft sizes and surgical techniques. The dedicated 275mm cannulated screwdriver ensures precise placement.
Key Features
Sheath + Screw Design: Sheath protects graft during insertion, screw provides secure interference fixation
PEEK Material: Radiolucent, biocompatible, MRI-compatible, with mechanical properties similar to bone
Multiple Size Options: Sheath diameters from 7mm to 10mm, lengths 25-30mm; matching screw sizes
Graft Protection: Sheath reduces friction and damage to graft during screw insertion
Uniform Fixation Pressure: Sheath distributes pressure evenly around graft
Dedicated Screwdriver: 275mm cannulated screwdriver for precise insertion
Technical Specifications
REF. NO. Sheath Size (mm) Screw Size (mm)
R001.001Sheath 7×25Screw 6×23
R002.001Sheath 8×30Screw 7×28
R003.001Sheath 9×30Screw 8×28
R004.001Sheath 10×30Screw 9×28

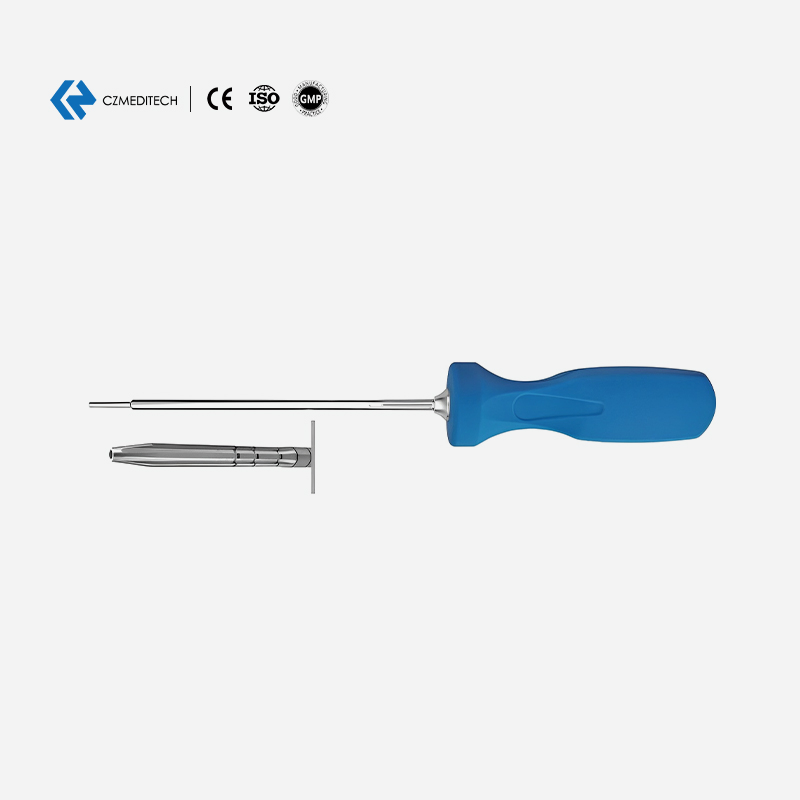

Instrument REF. NO. Specification

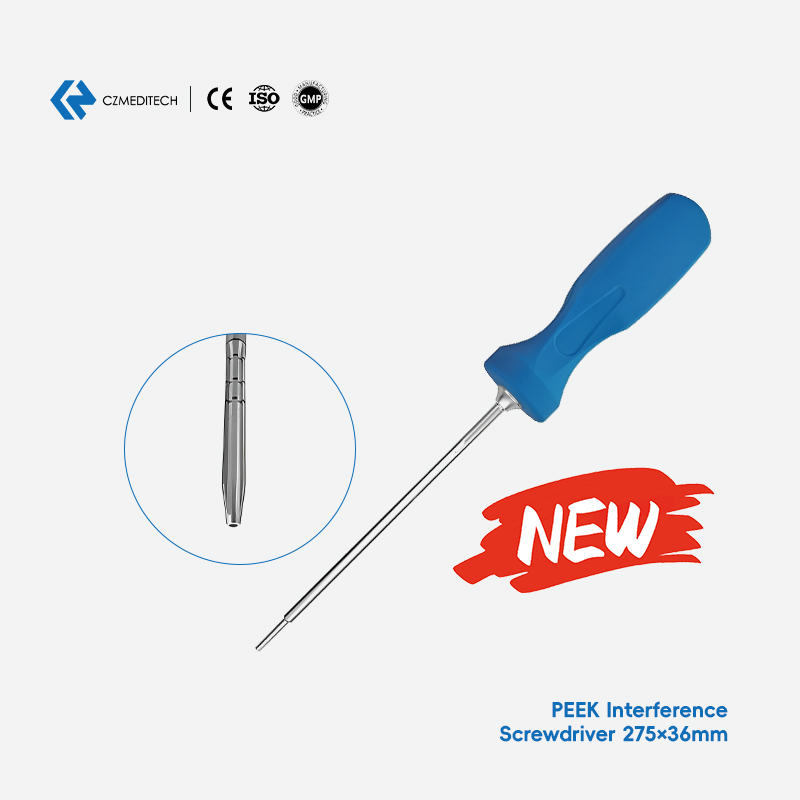

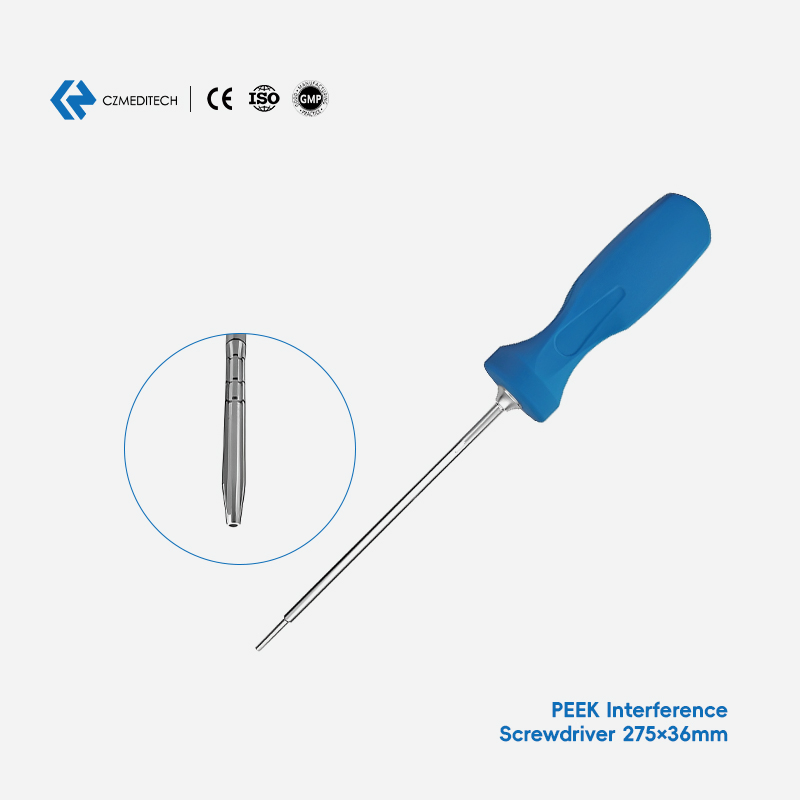

A602022PEEK Interference Screwdriver 275×36mm
Related Products

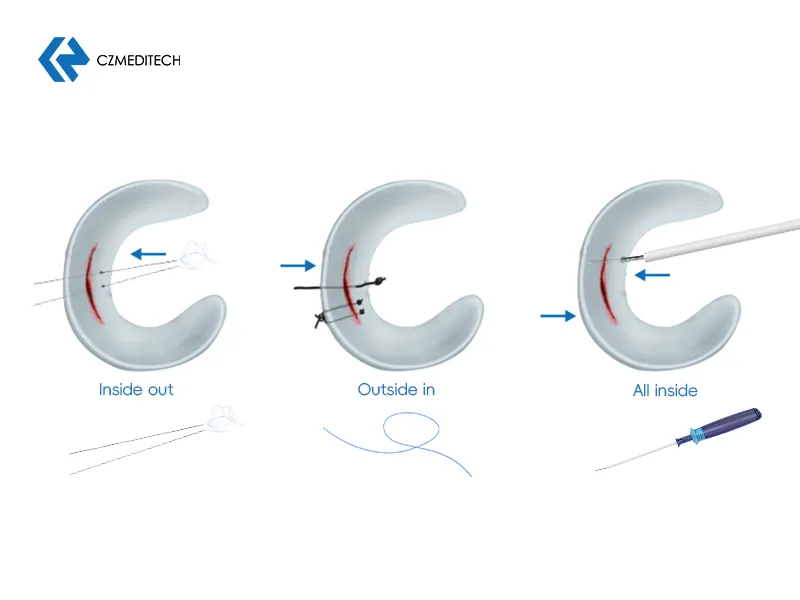

Meniscus Repair Tool

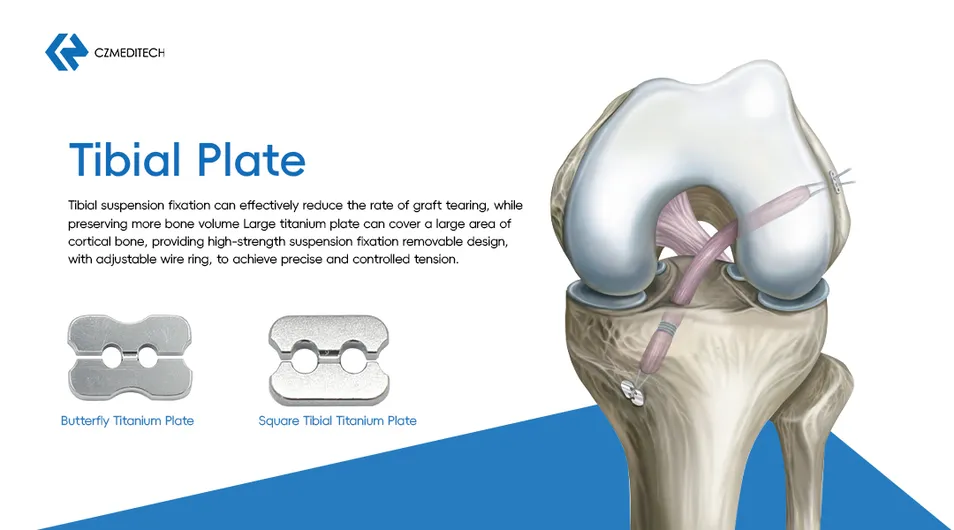

Knotless Button Detail

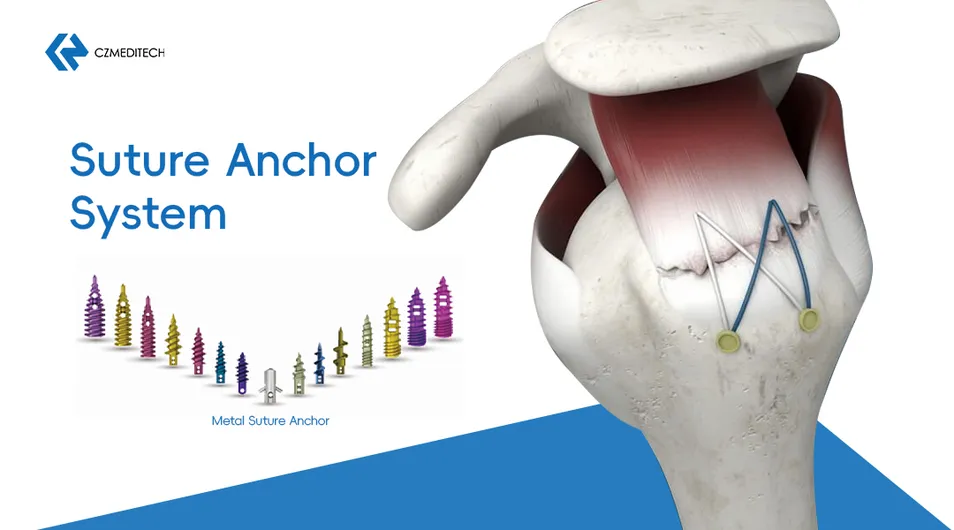

Medical Fixation Device
Suitable for various applications with high brightness and reliability, meeting international standards and certifications for diverse needs.

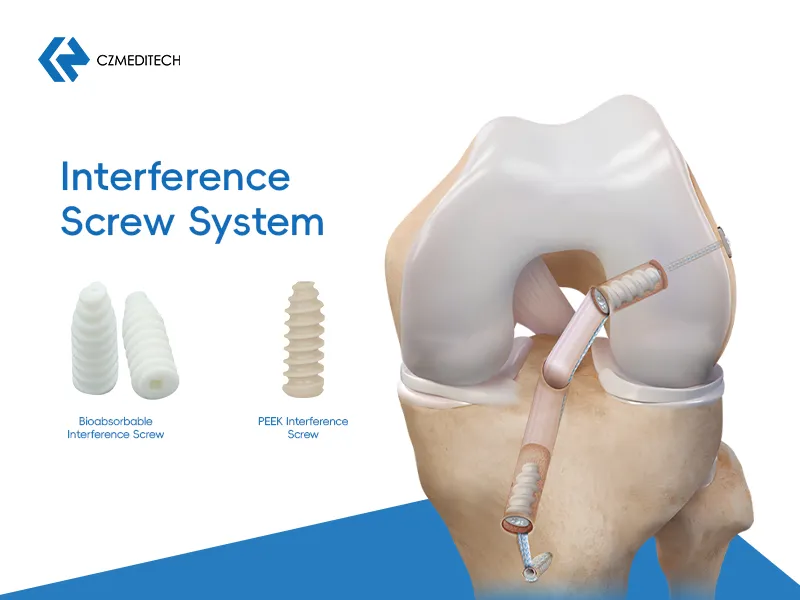

Biocompatible Screws
Highly biocompatible screws vital for restoring joint stability and function in reconstruction procedures.
Frequently Asked Questions
1. What is the advantage of using a sheath with an interference screw? The sheath protects the soft tissue graft during screw insertion, reducing friction and potential damage. It also provides uniform fixation pressure around the graft for optimal healing.
2. How does this system differ from standard interference screws? Standard interference screws contact the graft directly, which can cause damage. This system uses a sheath that is inserted first, then the screw is placed inside, eliminating direct contact between threads and the graft.
3. What sizes are available for this system? The system offers four sizes: 7mm sheath (6×23mm screw), 8mm sheath (7×28mm screw), 9mm sheath (8×28mm screw), and 10mm sheath (9×28mm screw).
4. What material are these implants made of? Both the sheath and screw are manufactured from medical-grade PEEK, which is radiolucent, biocompatible, and MRI-compatible.
5. Are your suture anchors suitable for arthroscopic shoulder surgery? Yes, our anchors are widely used in rotator cuff repair, Bankart repair, and SLAP lesion repair, providing reliable soft tissue fixation under arthroscopy.
6. What certifications do these sports medicine products hold? Our manufacturing system complies with ISO 13485, and selected products are CE-certified, meeting international regulatory and quality standards.
