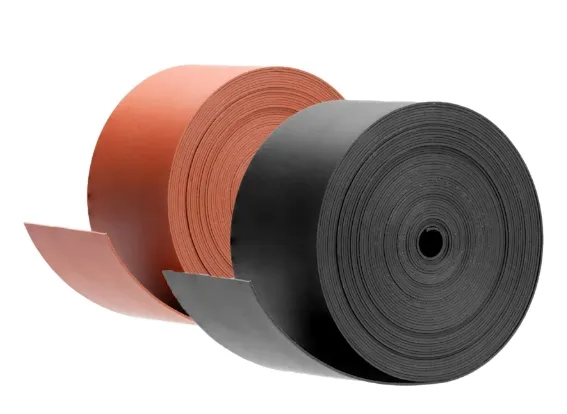

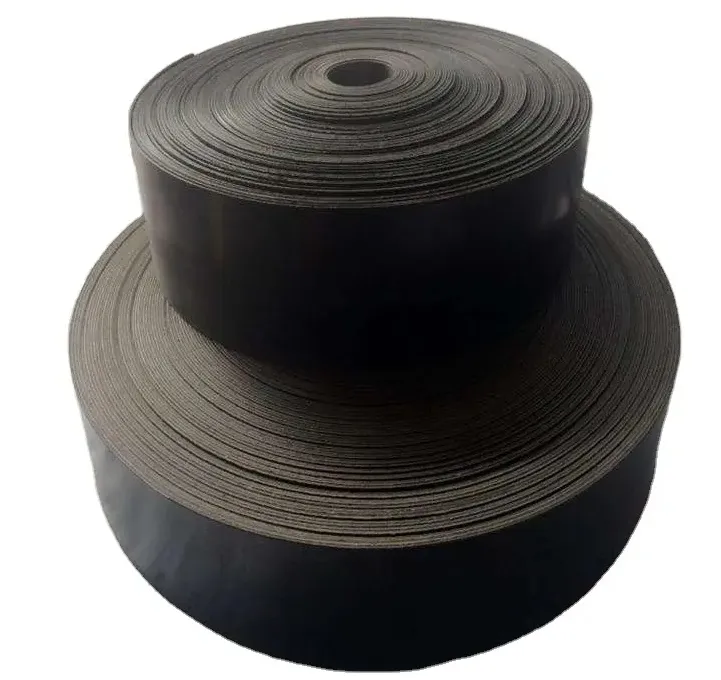

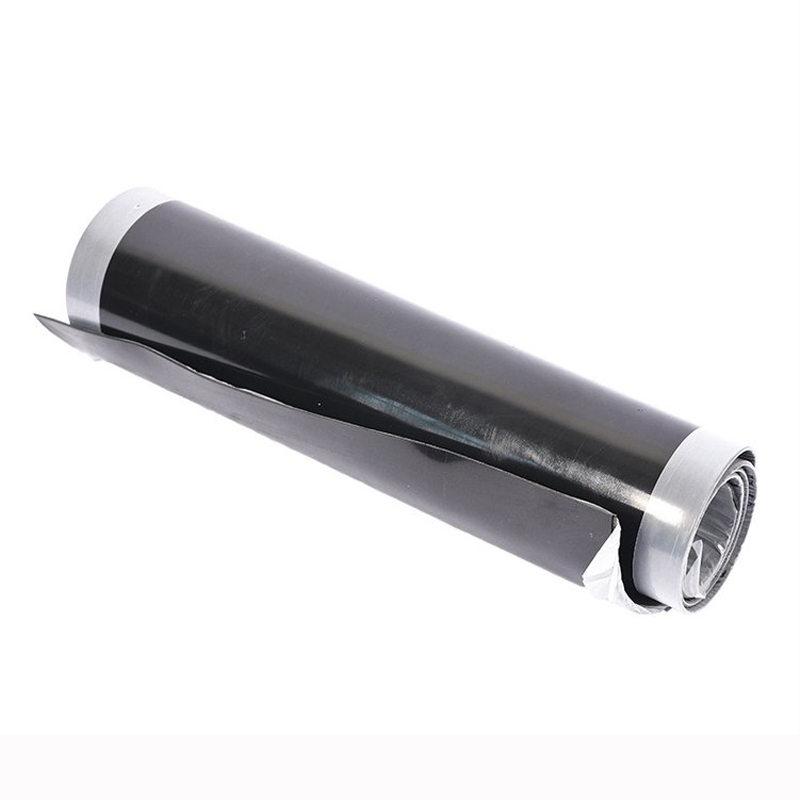

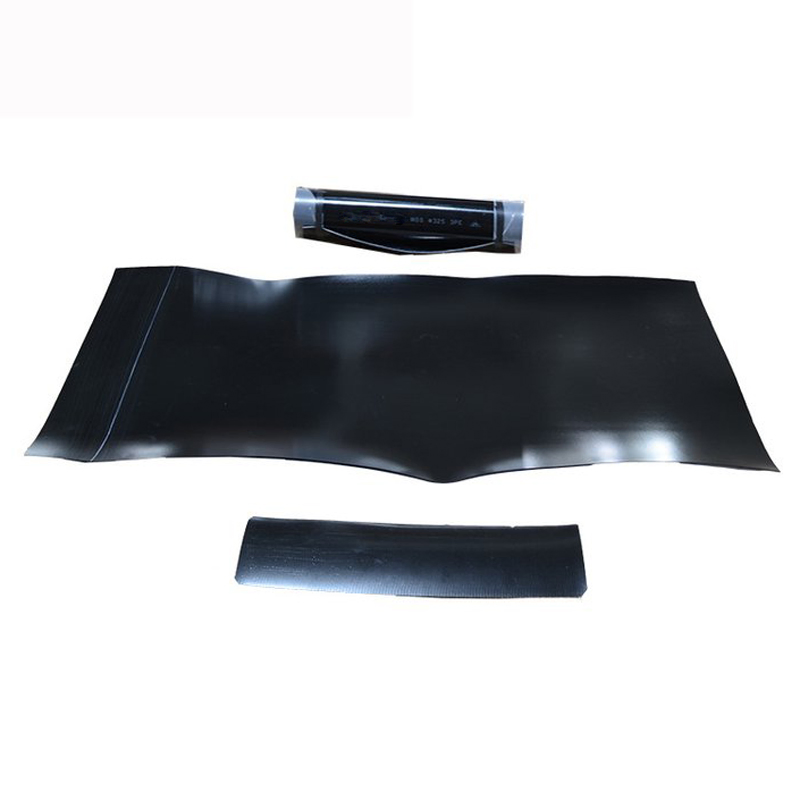

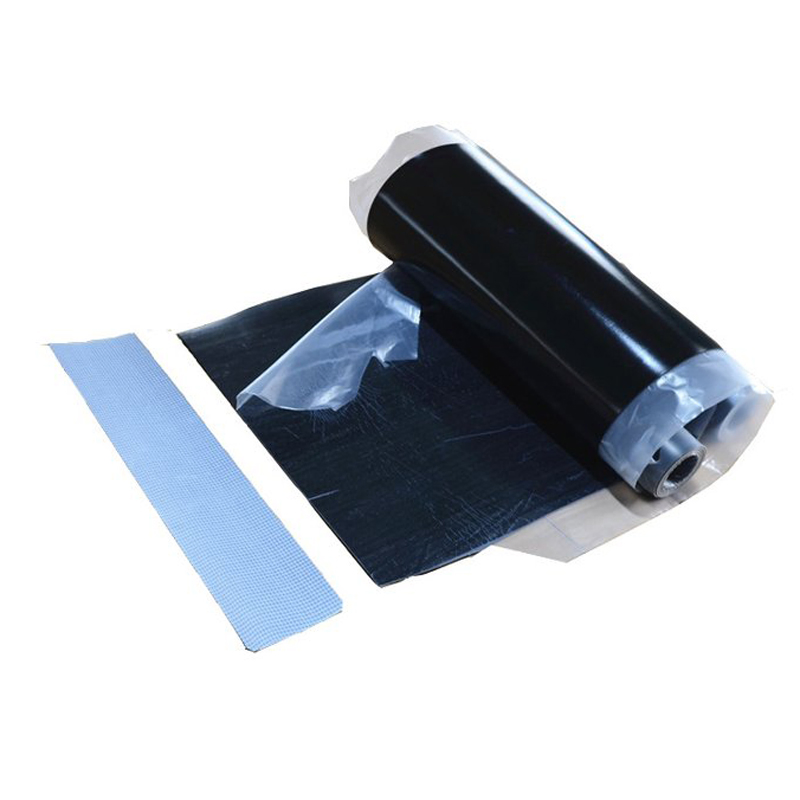

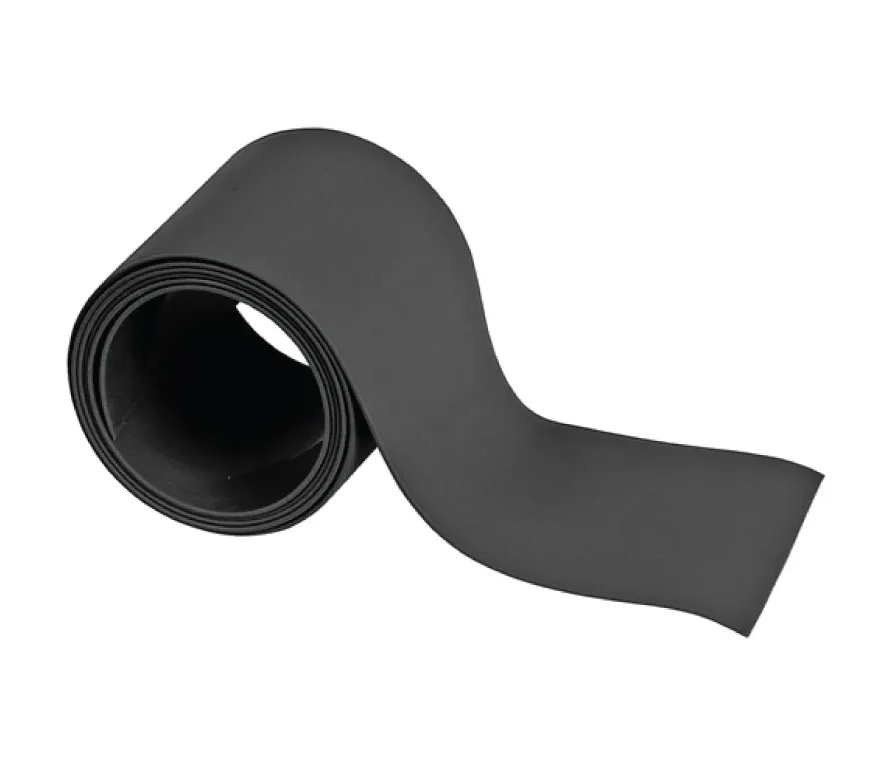

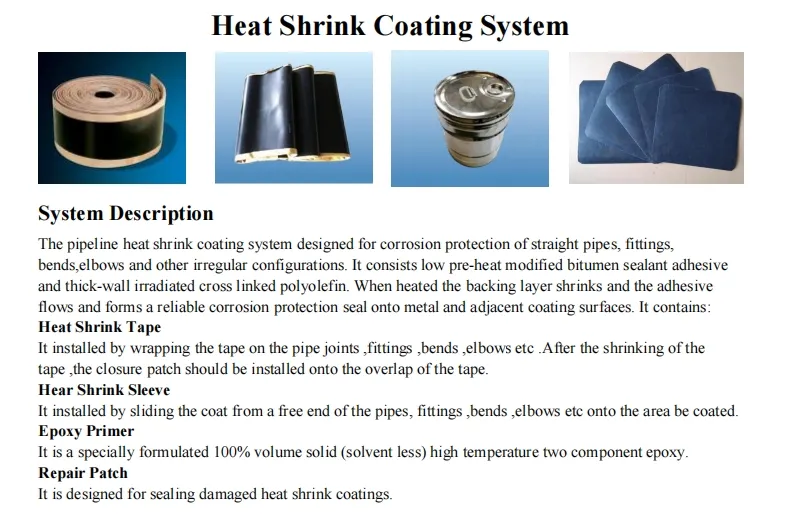

Polyethylene Heat Shrinking Tape for Pipeline Anti-Corrosion is a wrap-around radiation cross-linked tape designed for corrosion protection of straight pipes, fittings, bends, elbows, and other irregular configurations. When heated, the backing layer shrinks and the adhesive flows, forming a reliable corrosion protection seal onto metal and adjacent coating surfaces.

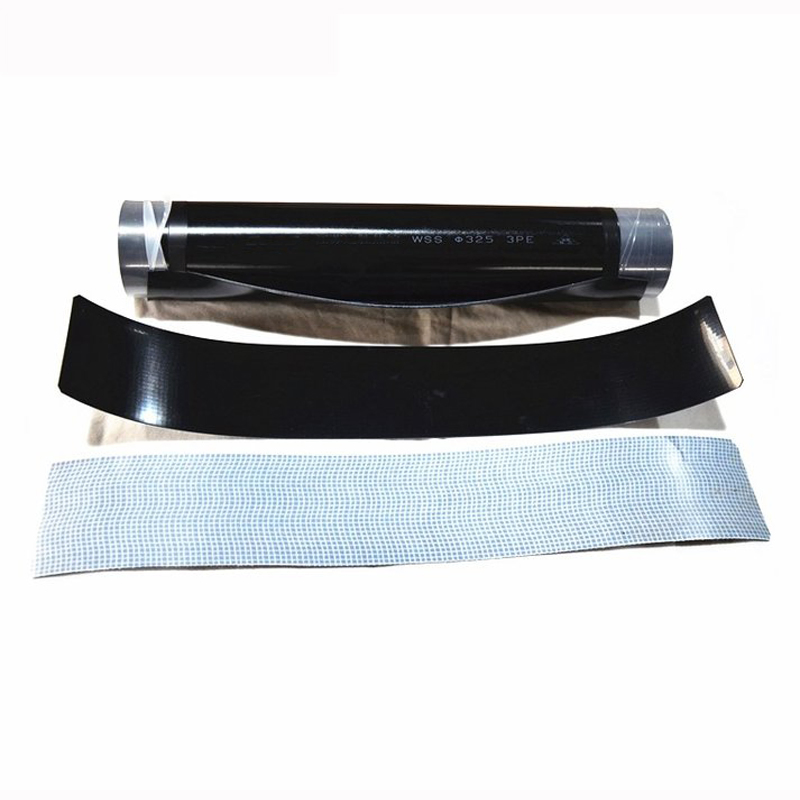

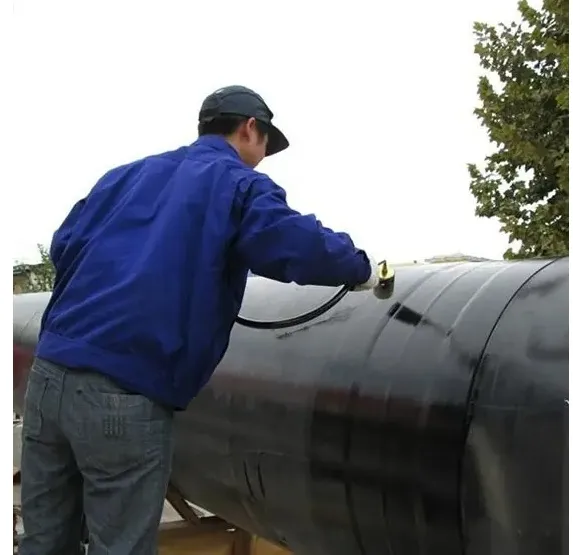

The epoxy primer should be applied to the prepared pipe surface, then the heat shrinkable tape is immediately wrapped around the joint over the wet epoxy. Finally, center the closure patch on the overlap region.
| Property (Backing) | Typical Value | Test Method |
|---|---|---|
| Tensile Strength | 20MPa (2900 psi) | ASTM D-638 |
| Elongation at Break | 550% | ASTM D-638 |
| Specific Gravity | 0.95 | ASTM D-792 |
| Hardness, Shore D | 48 | ASTM D-2240 |
| Dielectric Strength | 20 kv/mm | ASTM D-149 |
| Water Absorption | 0.05% | ASTM D-570 |
| Property (Tape) | Typical Value | Test Method |
|---|---|---|
| Peel to Steel | 35N/cm | ASTM D-4541 |
| Low Temp Flexibility | -20ºC | ASTM D-2671 |
| Cathodic Disbondment | 10mm radius | ASTM G8 |
| Impact Resistance | Pass | DIN EN 12068 |

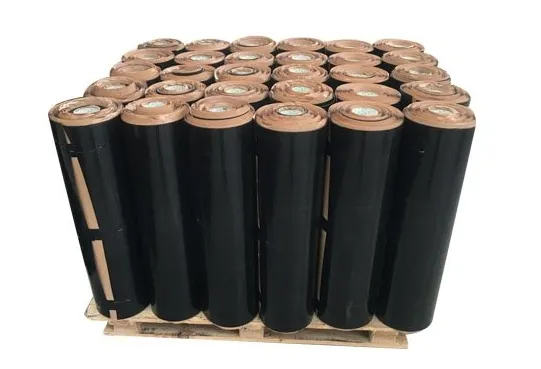

| Product Type | Standard Options |
| Tape Thickness | 2.0mm, 2.5mm or others |
| Tape Width | 450mm, 600mm, 900mm or others |
| Tape Length | 10m, 15m, 20m, 30m or others |
