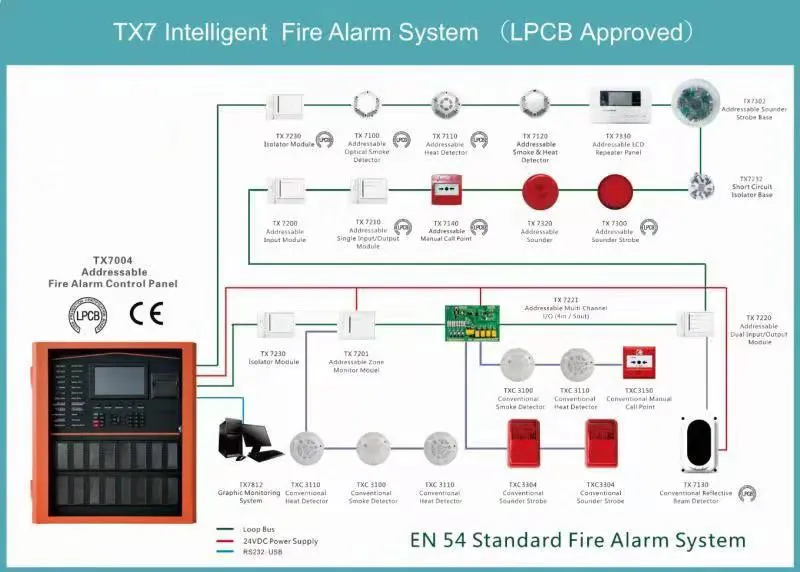

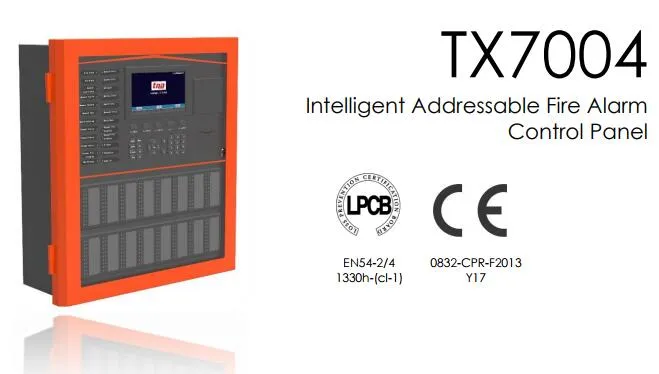

The TX7004 comprises a range of analogue addressable, microprocessor-based fire alarm control equipment to offer flexibility in both design and operation. The System is a modular concept for easy tailoring of system design to meet the full requirements of the project. The TX7004 Intelligent Fire Alarm Control Panel is designed and manufactured to meet the requirements of BS EN54 Part 2 & 4.
The TX7004 is designed to provide early warning fire detection, to quickly identify the location of fire and provide user-definable text informing the occupants of the building of potential smoke spread. Simultaneously, the TX7004 will alert and evacuate the occupants, and control all necessary auxiliary command functions such as elevator control, air handling shut down, gas shut off & damper control, as per the cause and effects requirements configured through Command Builder Set-up.
| Power Rating | Input Voltage 240VAC +10%-15%, 50/60Hz; Input Consumption 1A |
| PSU Output | 24.5 to 28.5 VDC |
| Batteries | 2 x 12V / 24AH |
| Networking | Can Bus [loop]; Up to 512 Panels |
| Interface Ports | USB, RS485 Serial, RS232 Serial, Ethernet |
| System Capacity | 1000 Fire Events, 10,000 General Events; 3,000 Programmable Zones |
| Loop Specs | T&A Protocol; 1 to 254 Addressing; 4 Loops; 4kV Surge Protection |
| Input/Outputs | 4 Programmable Relays; 1 Programmable Input; 2 Fixed Circuits (FPE/Sounder) |
| Display & Keypad | 7" TFT Touch Screen; 5 Brigade buttons and Programming Keypad |
| Physical | Metal with glass door; 530 x 490 x 135 mm; 16.70 Kg |
