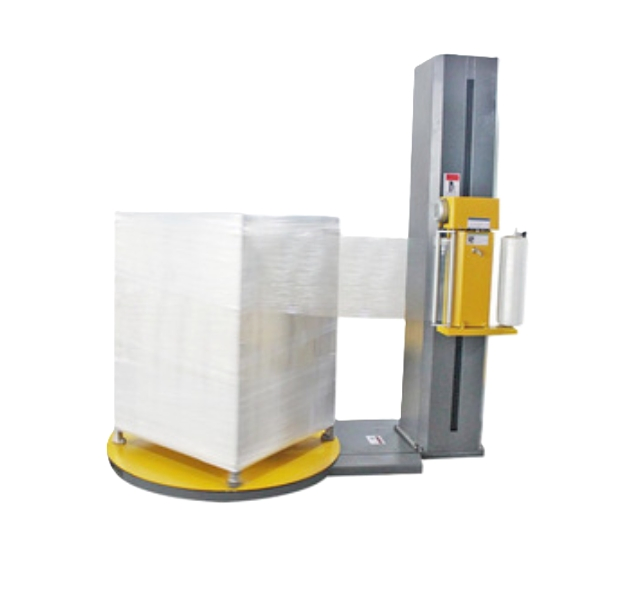

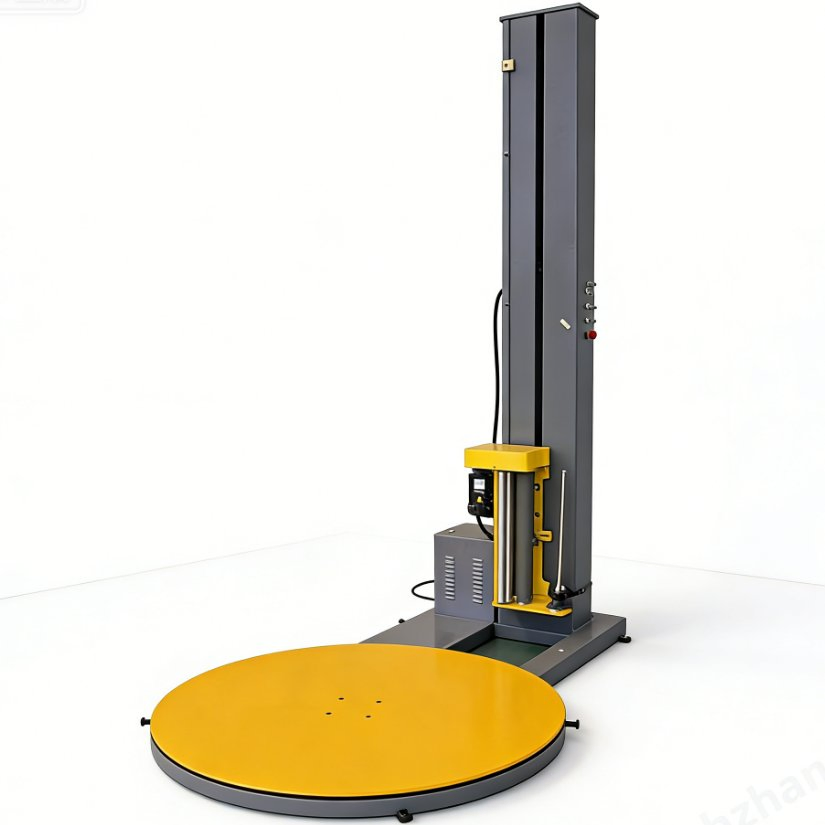

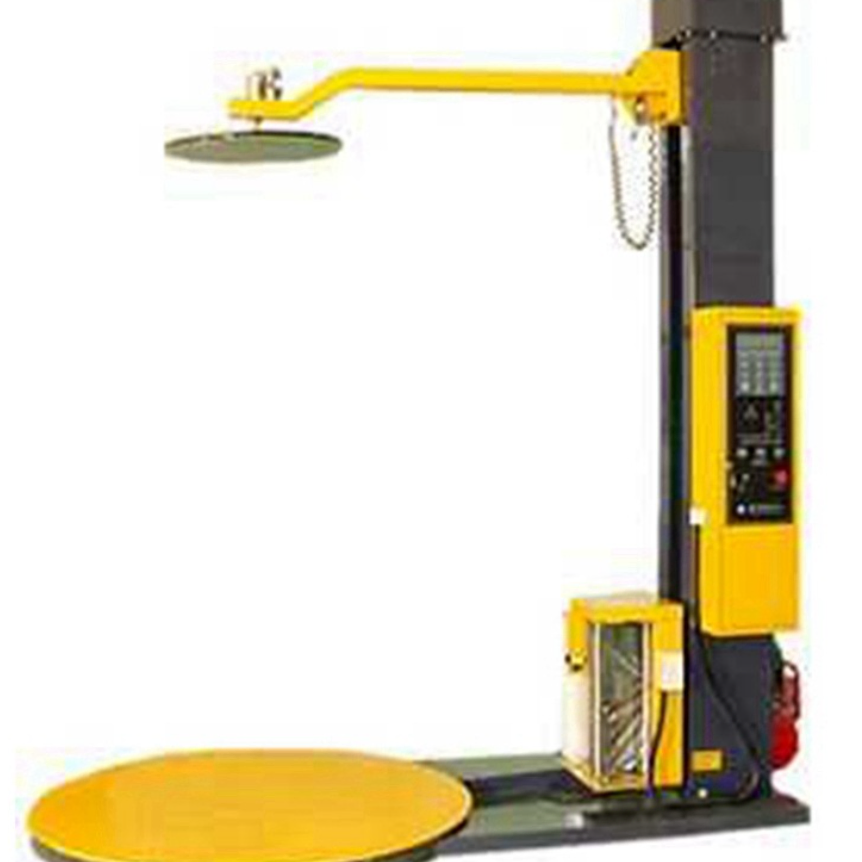

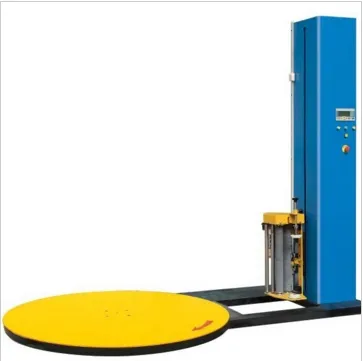

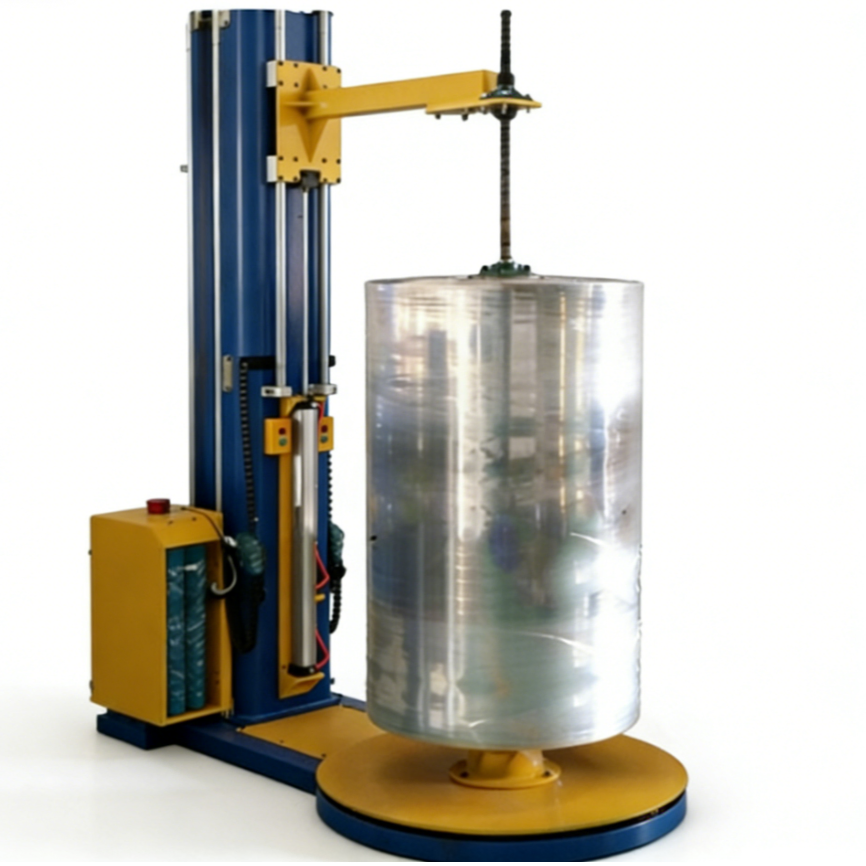

Wrapping machine is a kind of packaging equipment that automatically wraps goods through winding film, which is widely used in warehousing and logistics, food and beverage, medicine and chemical, building materials and home furnishing industries. Its core value is to replace manual winding operations, solve the problems of waste of film materials, low packaging efficiency, and unstable fixation of goods in traditional packaging methods.
Using PLC control system servo drive technology, the packaging cycle of a single pallet can be as low as 20-40 seconds, and the processing capacity per hour can reach 90-180 pallets, which is 10-15 times more efficient than manual labor. Supports automatic film application and film breaking without manual intervention.
Adjustable tension control: The tension of the film rack can be adjusted steplessly in the range of 5-50N. Intelligent layer setting allows presetting the number of top and bottom reinforced winding layers. The film-saving design increases the utilization rate of film materials by 15%-20%.

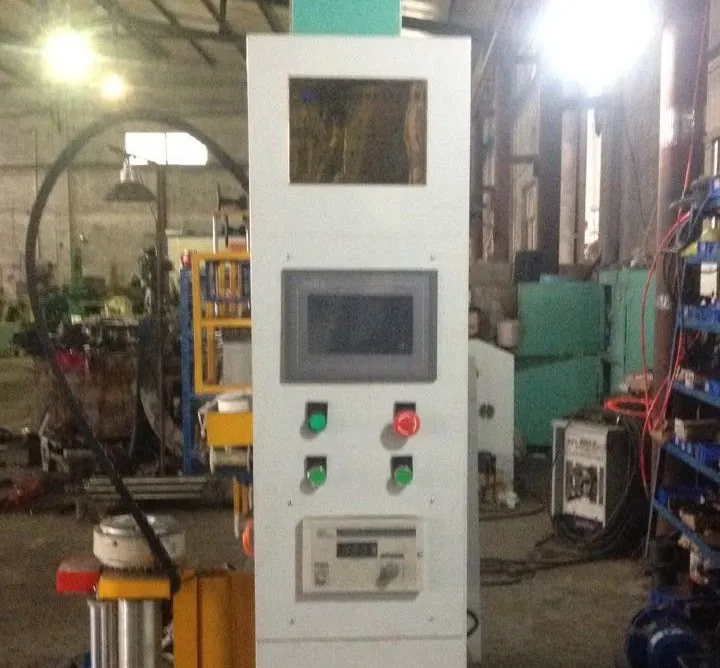

Automatically detect the height (300-2200mm) and width (500-1500mm) of goods through infrared sensors. Equipped with a 7-inch color touch screen supporting 50 sets of commonly used packaging programs.
| Parameter Category | Standard Tray Winding Machine | Horizontal Winding Machine |
|---|---|---|
| Maximum Load | 2000kg (customizable to 5000kg) | 3000kg (customizable to 8000kg) |
| Package Size Range | L 500-1500, W 500-1200, H 300-2200mm | D 100-600mm, L 500-3000mm |
| Winding Film Width | 500mm/750mm | 500mm/750mm |
| Packing Speed | 20-40 sec/pallet | 15-30 sec/piece |
| Control Mode | PLC + Touch Screen | PLC + Touch Screen |
| Safety Certification | CE, ISO 9001 | CE, ISO 14001 |
