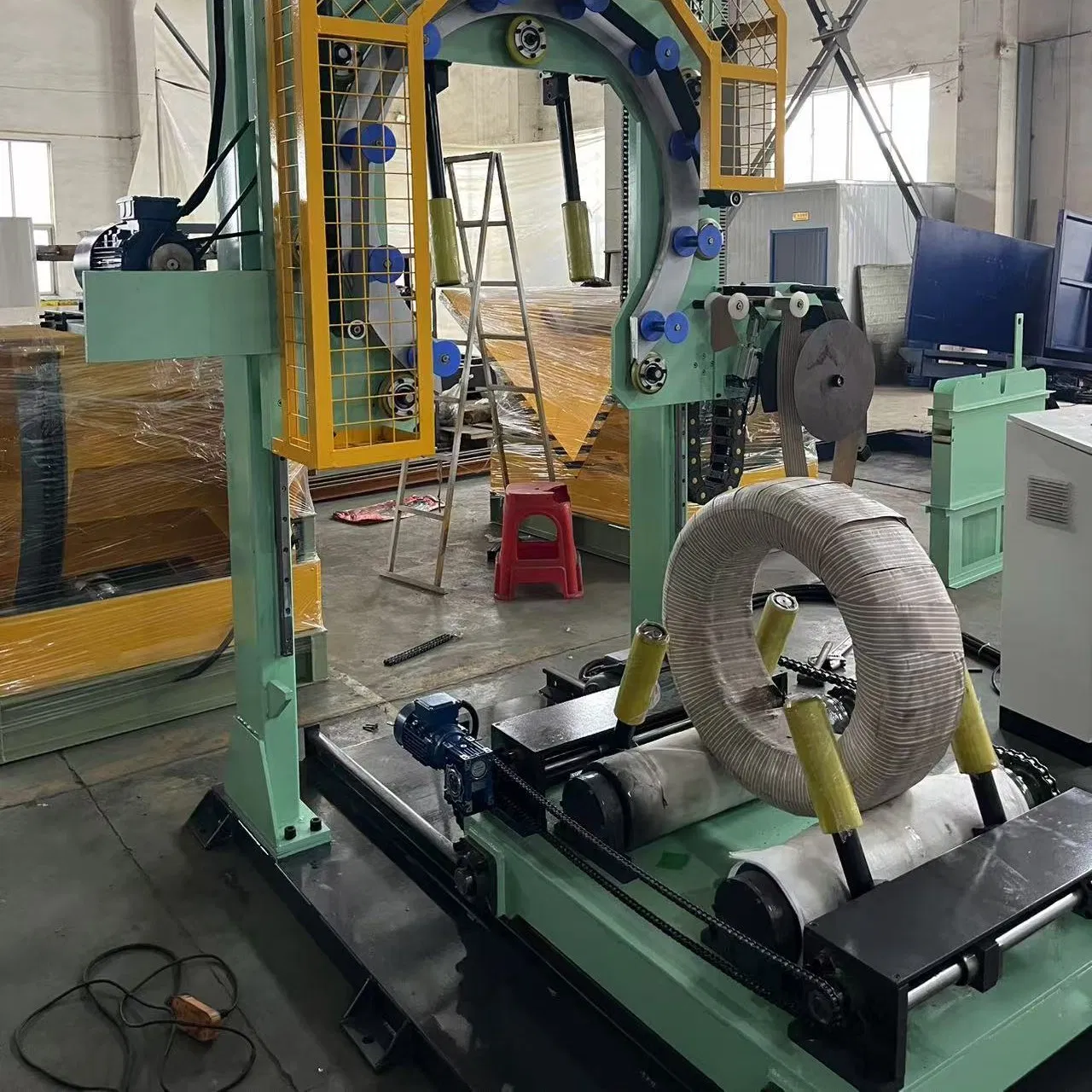

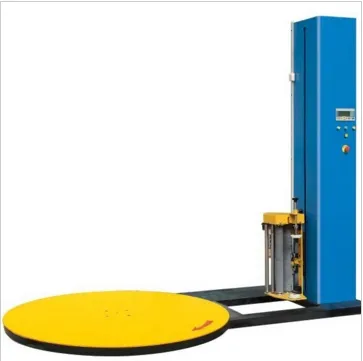

Wrapping machine is a kind of packaging equipment that automatically wraps goods through winding film, which is widely used in warehousing and logistics, food and beverage, medicine and chemical, building materials and home furnishing industries. Its core value is to replace manual winding operations, solve the problems of waste of film materials, low packaging efficiency, and unstable fixation of goods in traditional packaging methods, and realize the standardization, intensification and protection of goods packaging through automation technology.
Using PLC control system servo drive technology, the packaging cycle of a single pallet can be as low as 20-40 seconds, and the processing capacity per hour can reach 90-180 pallets, which is 10-15 times more efficient than manual labor. Supports automatic film application, film breaking, and mucous film integration operation.
Adjustable tension control: Stepless adjustment (5-50N) to match the best winding force for fragile or heavy goods.
Intelligent layer setting: Preset reinforced winding layers (2-5 layers) for key parts protection.
Film-saving design: Photoelectric sensors increase utilization rate by 15%-20%.
Adaptive cargo size: Automatically detect height (300-2200mm) and width (500-1500mm).

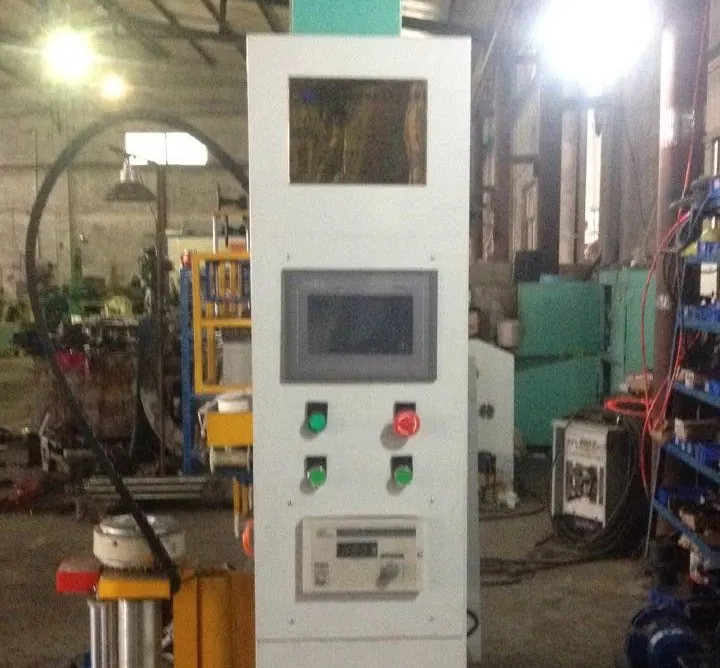

User-friendly interface: 7-inch color touch screen with 50 sets of stored programs.
Heavy load stable frame: Turntable supports 2000-5000kg.

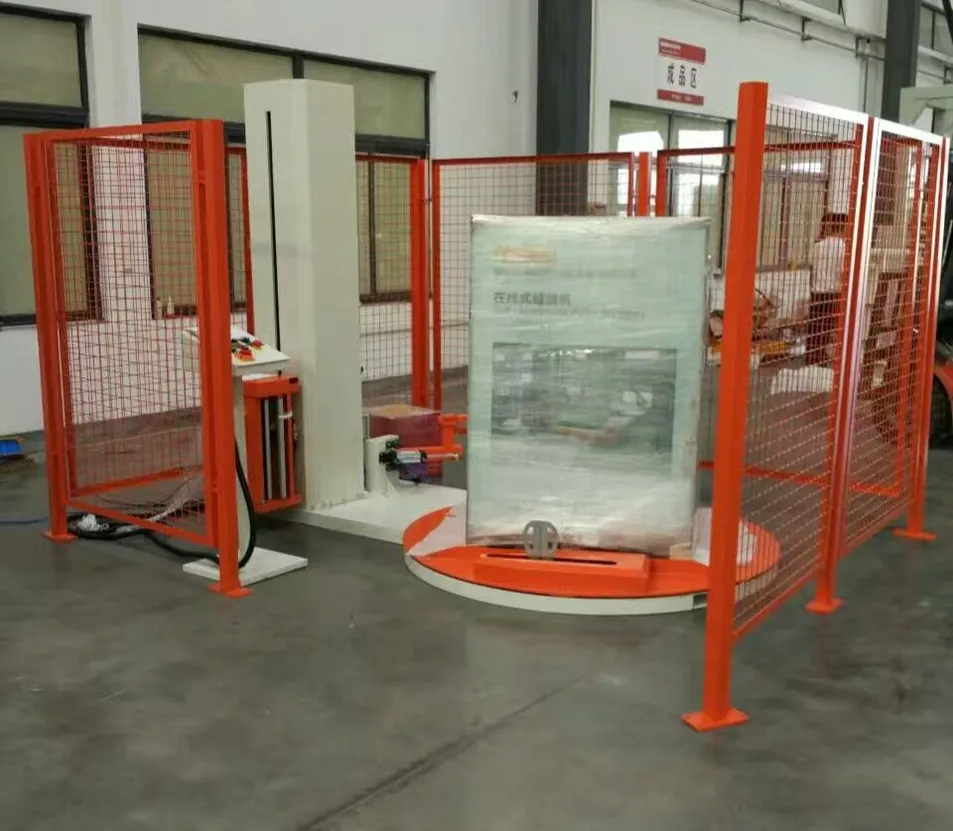

Safety protection: Emergency stop, safety fence, and photoelectric hand guard compliant with international standards.
| Parameter Category | Standard Tray Winding Machine | Horizontal Winding Machine |
|---|---|---|
| Maximum Load | 2000kg (Customizable to 5000kg) | 3000kg (Customizable to 8000kg) |
| Package Size Range | L:500-1500mm, W:500-1200mm, H:300-2200mm | D:100-600mm, L:500-3000mm |
| Winding Film Width | 500mm/750mm (Optional) | 500mm/750mm (Optional) |
| Packing Speed | 20-40 sec/Pallet | 15-30 sec/Piece |
| Tension Range | 5-50N | 10-60N |
| Control Mode | PLC + Touch Screen | PLC + Touch Screen |
| Safety Certification | CE, ISO 9001 | CE, ISO 14001 |
