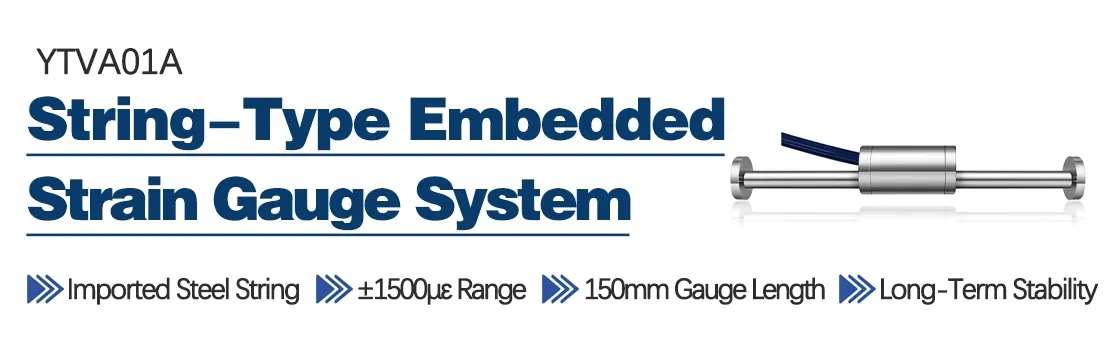

Product Introduction

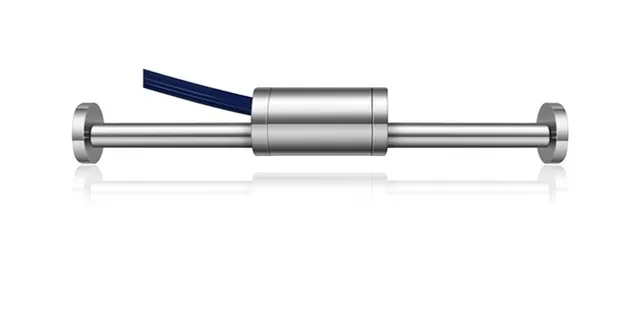

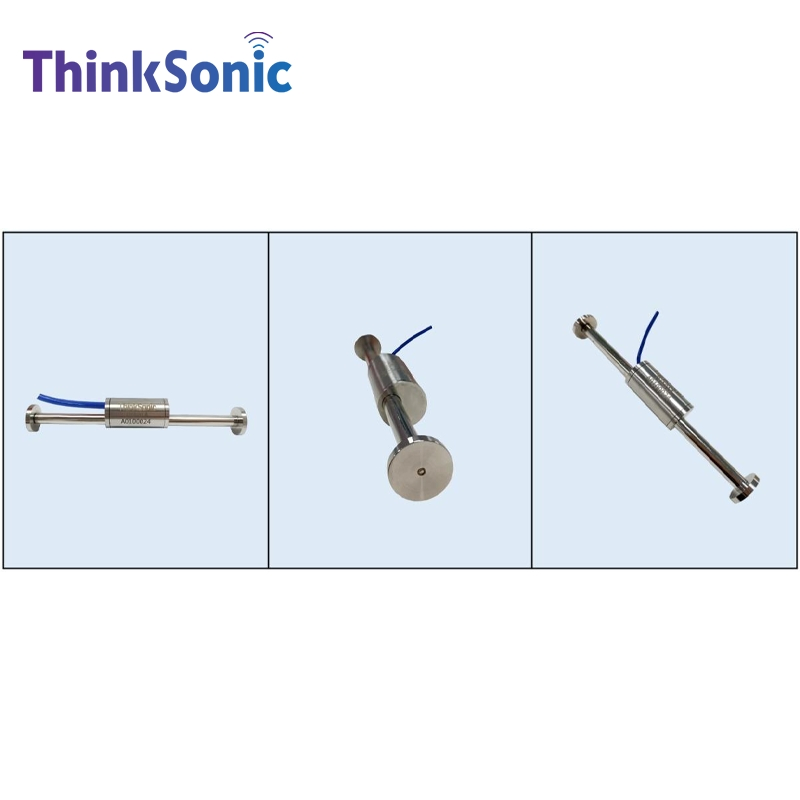

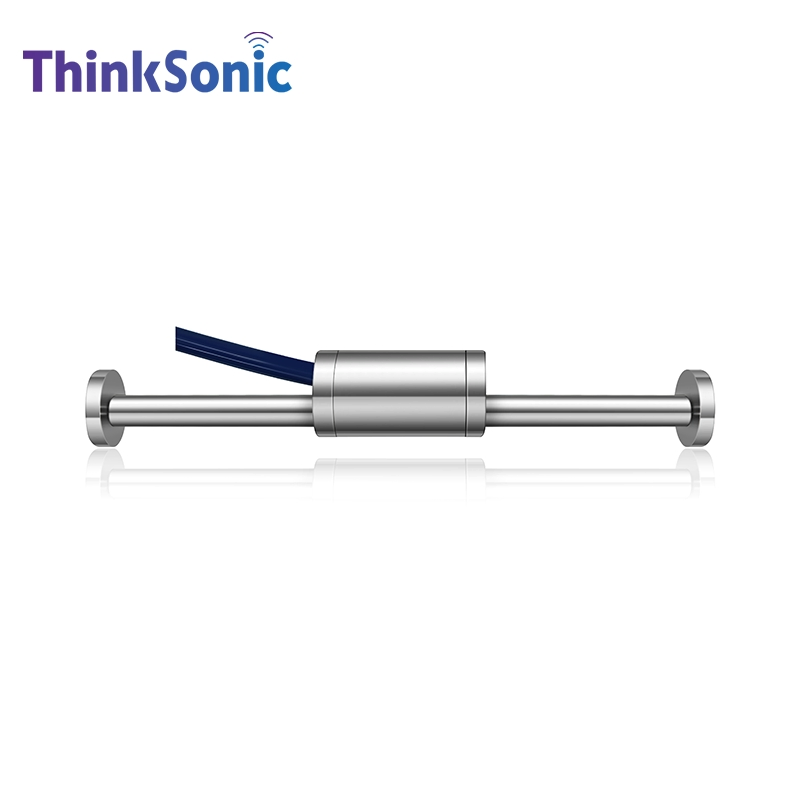

The embedded strain gauge system is a high-precision measuring instrument used to measure internal strain changes in concrete structures. It is a string-type sensor suitable for long-term and stable monitoring in geotechnical, hydraulic structure, and structural safety monitoring projects. It is primarily applied for monitoring internal concrete strain in projects such as dams, bridges, foundations, and slopes.
⚙
Technical Specification
| Parameter Name |
Specification |

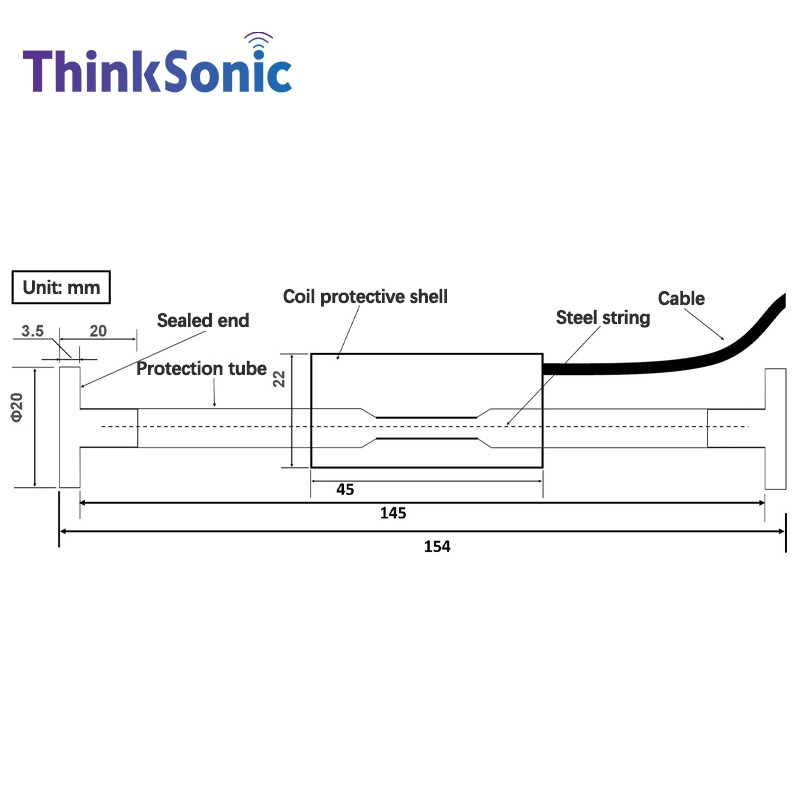

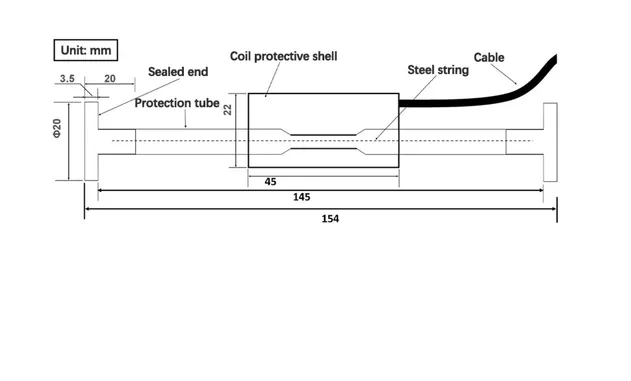

| Gauge Length | 150mm |
| Measurement Range | ±1500 μ ε |
| Accuracy | 0.1%F.S |
| Temperature Measurement Range | -40~+80℃ |
| Temperature Accuracy | 0.5℃ |
| Electrical Connection | Hydrological Observation Cable |
| Insulation Resistance | ≥50MΩ |
| Main Material | 304 Stainless Steel |
| Protection Grade | IP68 |
Accuracy: Refers to factory calibration environment verification.
Resolution: The minimum detectable change value within the measurement range.
💡

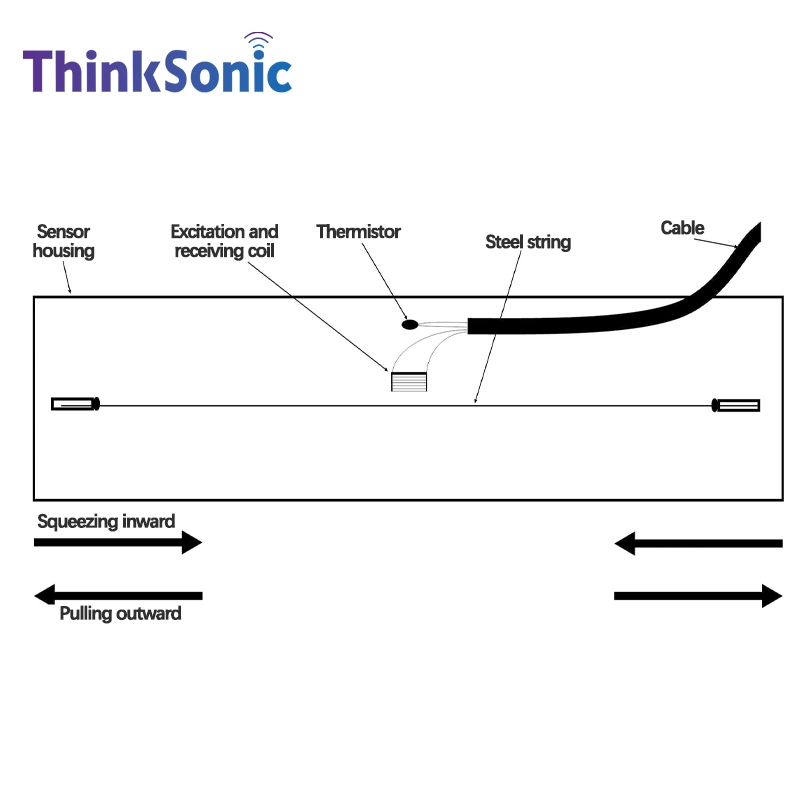

Working Principle

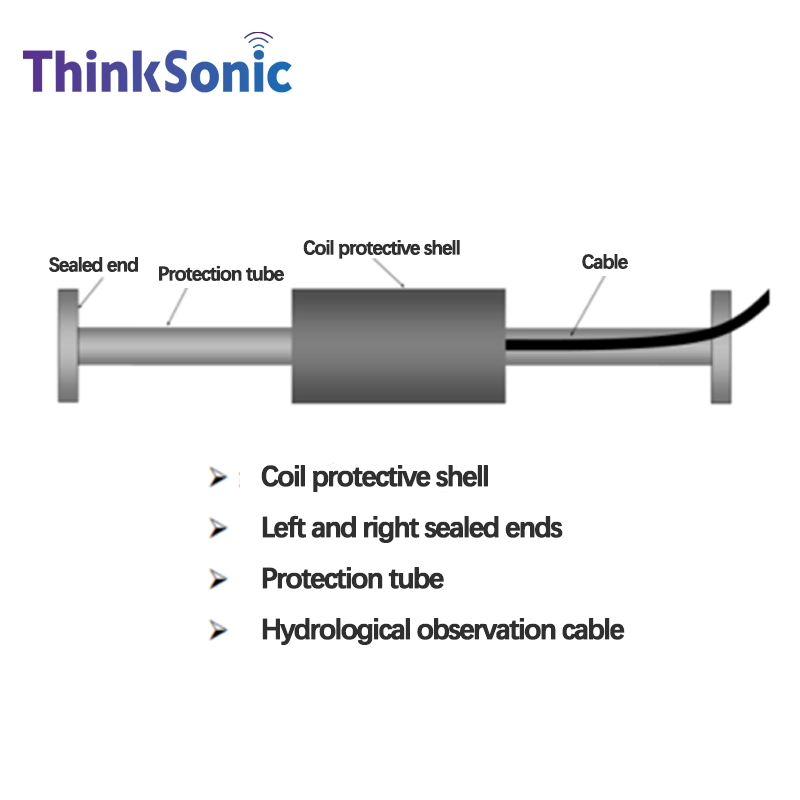

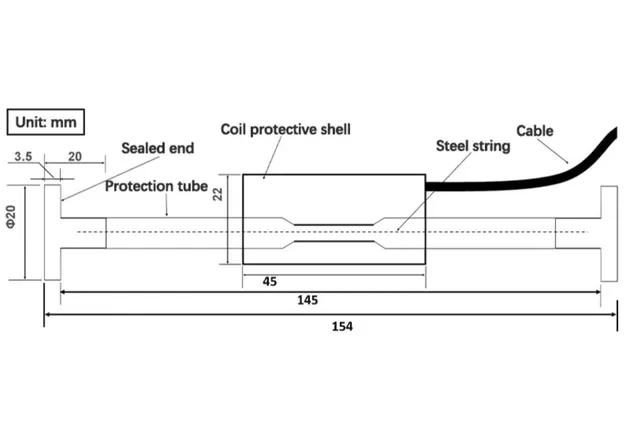

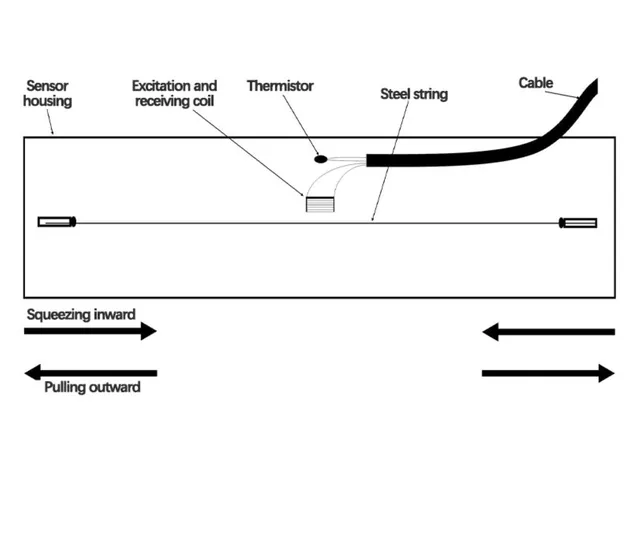

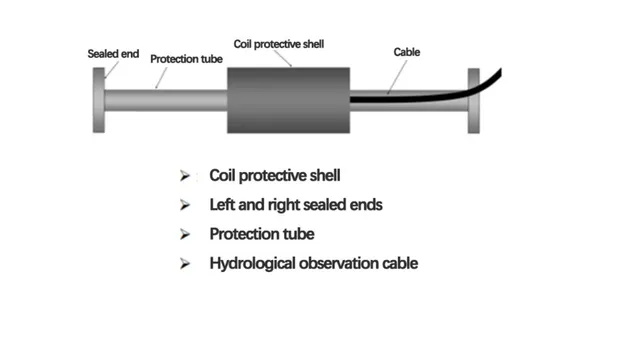

Based on the vibrating wire principle, the sensor consists of a force-bearing elastic housing, a steel wire, excitation components, and a receiving coil. The frequency of the vibrating wire changes relative to the tension magnitude. Once determined, variation in vibration frequency characterizes the strain magnitude of the measured structure. The YTVA01A features a grounded double-protective-sheath and shielded polyurethane design for resistance to mechanical wear and interference.
🏗
Application Fields
The embedded strain gauge is extensively used for strain monitoring in concrete structures across projects such as reservoirs, dams, high-rise buildings, foundations, tunnels, bridges, and slopes.
❓
Frequently Asked Questions
What is your core business?
We specialize in R&D and manufacturing of precision sensors and IoT solutions, including Automotive IoT (ultrasonic sensors) and Structural Monitoring (strain/pressure gauges, hydrostatic level gauges).
Are you a manufacturer?

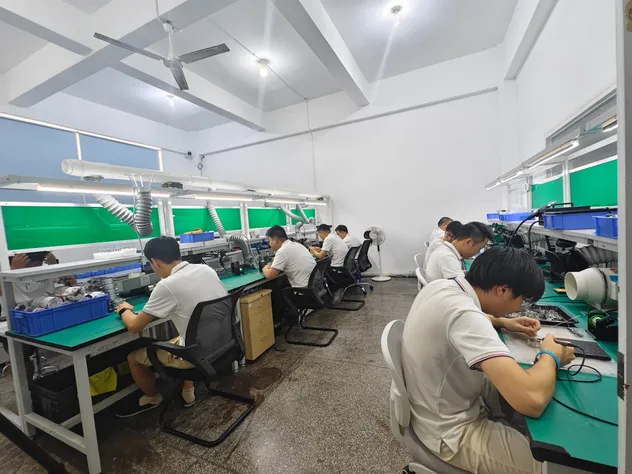

Yes, we are a manufacturer with an in-house R&D center and production facilities. All products are independently designed and strictly quality-controlled.
What is your minimum order quantity (MOQ)?
Standard products typically start from 10 units. MOQ for customized items varies by project complexity.
How long is the typical lead time?
Standard products usually ship within 15-30 days after order confirmation. We maintain flexibility based on specific order requirements.
Can you customize products?
Yes, we offer customization including logo printing, packaging redesign, technical parameter adjustments, and private labeling.
How do you handle after-sales support?
Our support includes online troubleshooting, comprehensive technical documentation, and video guides to assist with installation and maintenance.
