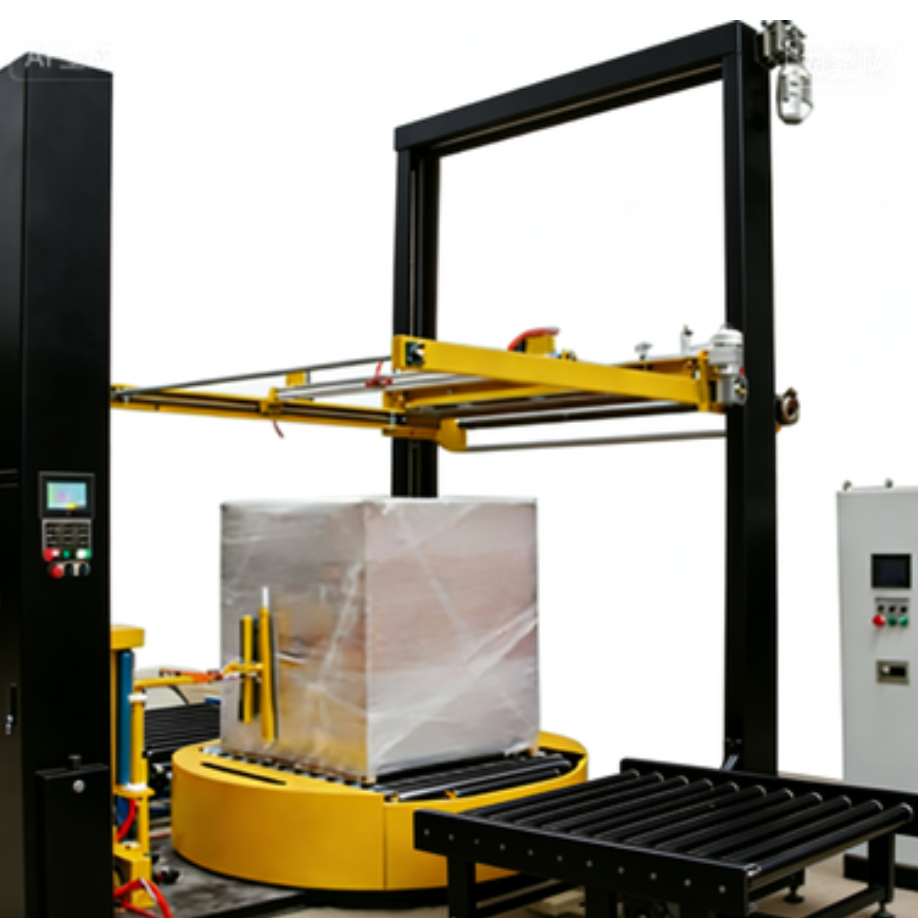

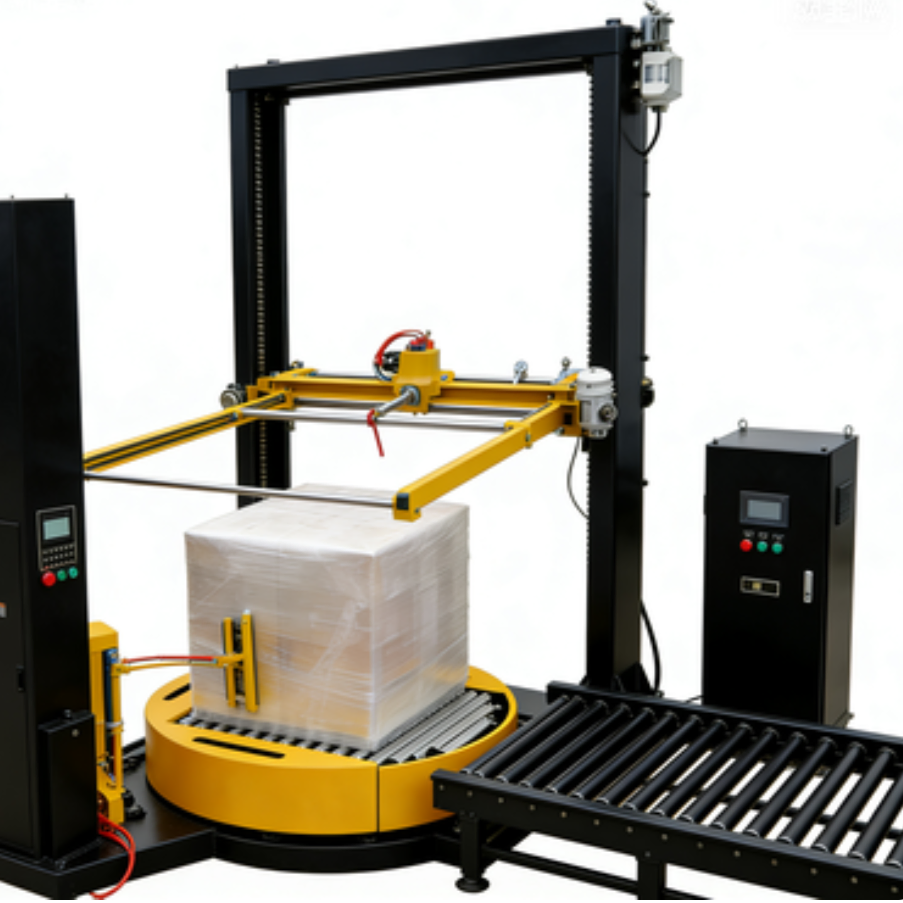

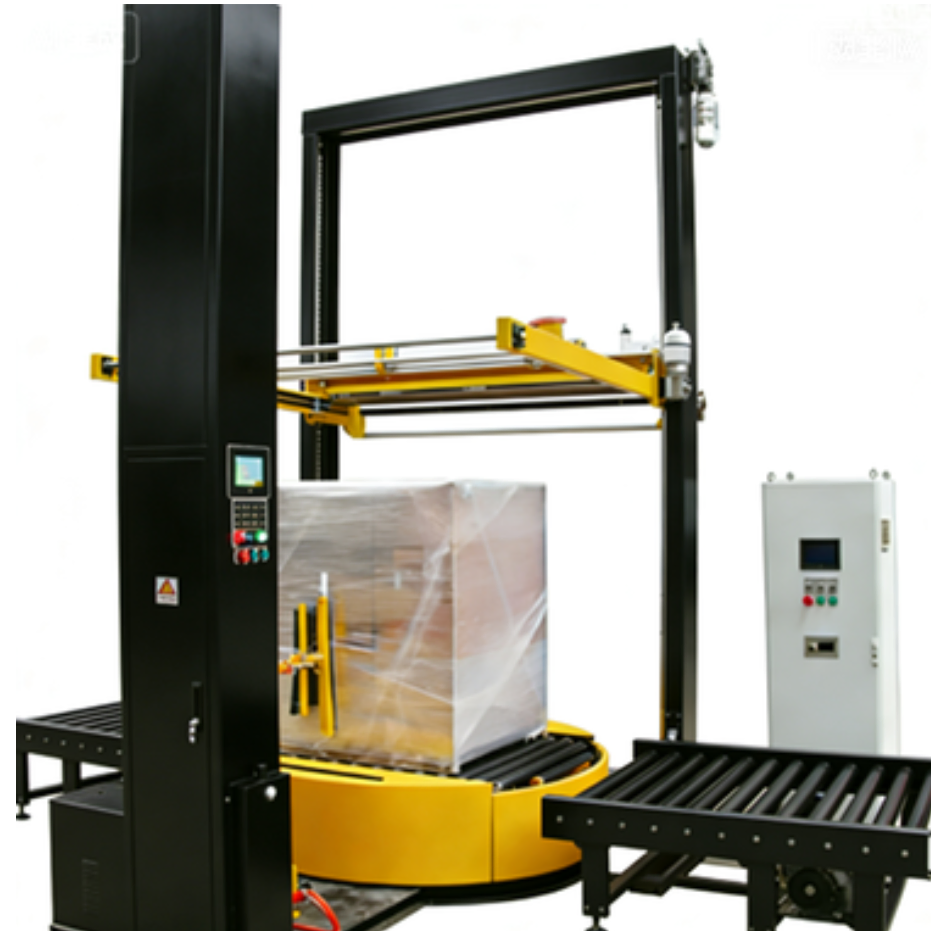

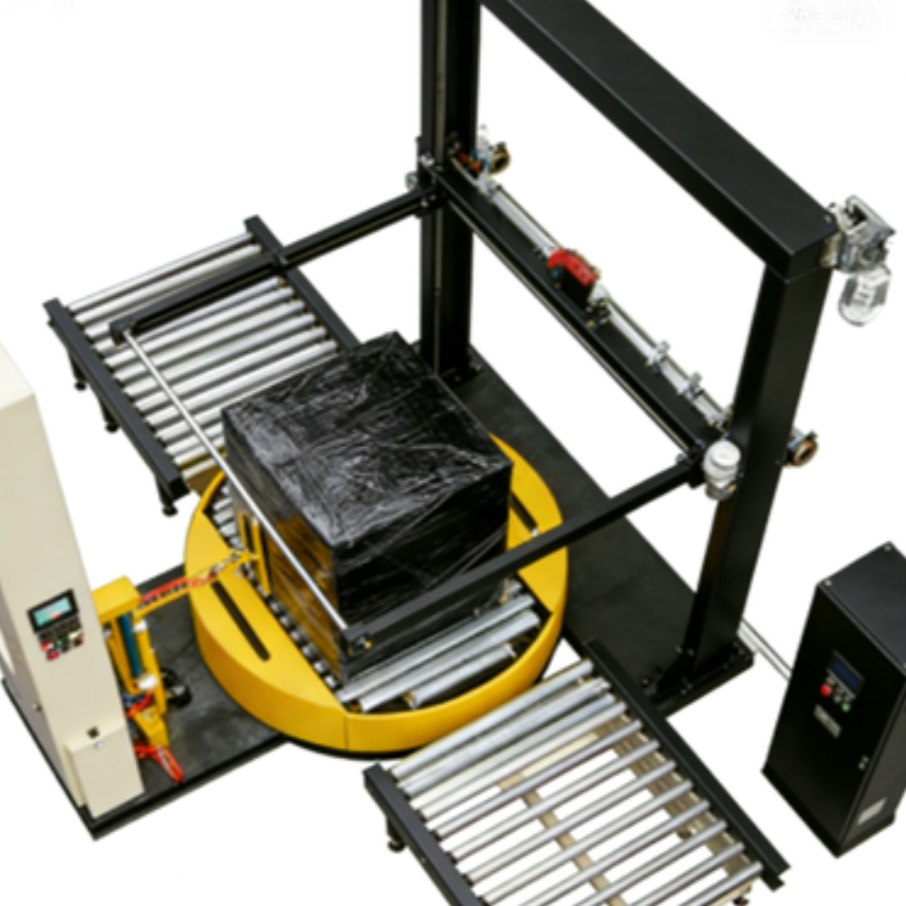

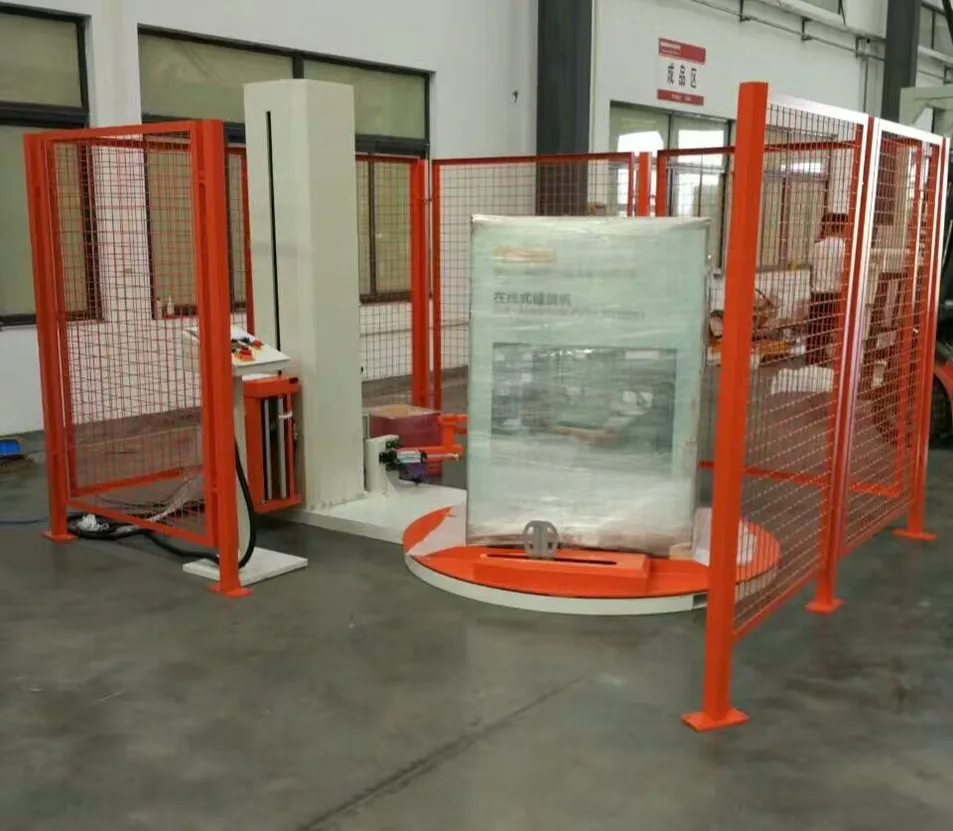

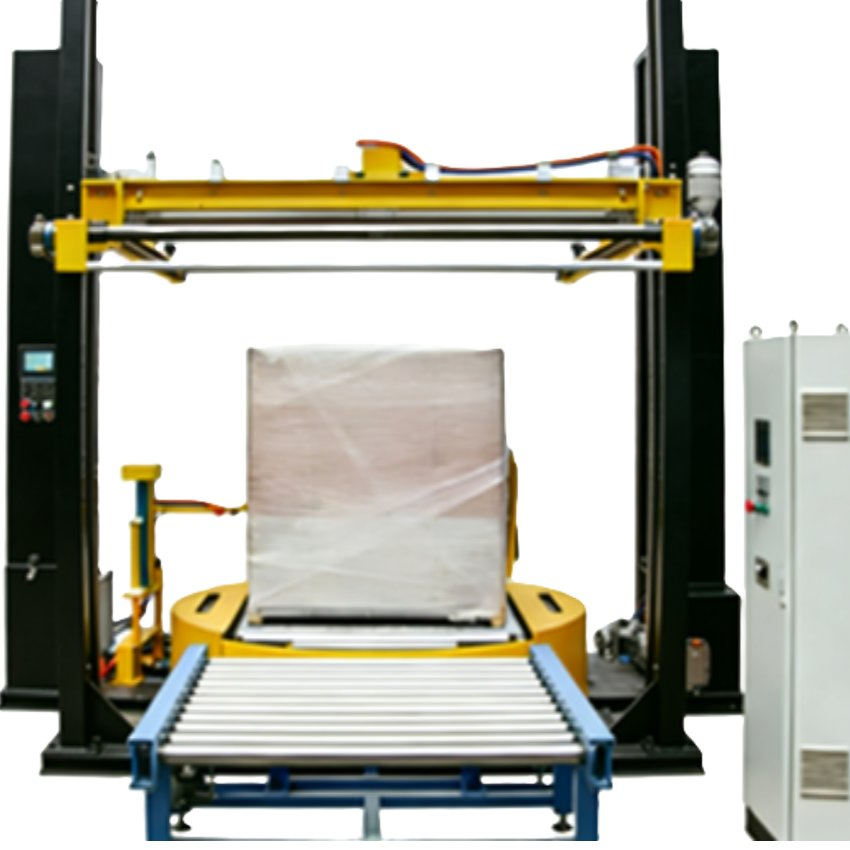

Wrapping machine is a kind of packaging equipment that automatically wraps goods through winding film, which is widely used in warehousing and logistics, food and beverage, medicine and chemical, building materials and home furnishing industries. Its core value is to replace manual winding operations, solve the problems of waste of film materials, low packaging efficiency, and unstable fixation of goods in traditional packaging methods.
Using PLC control system servo drive technology, the packaging cycle of a single pallet can be as low as 20-40 seconds, and the processing capacity per hour can reach 90-180 pallets, which is 10-15 times more efficient than manual labor.
Support automatic film application, film breaking, and mucous film integration operation, without manual intervention, reducing labor costs and packaging consistency errors.
Adjustable tension control: The tension of the film rack can be adjusted steplessly in the range of 5-50N, matching the best winding force for goods of different strengths.
Intelligent layer setting: The number of top and bottom reinforced winding layers (2-5 layers) and the number of main winding layers (1-10 layers) can be preset to ensure protection strength.
Film-saving design: Accurately identify the height of goods through photoelectric sensors, automatically control the lifting stroke, increasing film utilization by 15%-20%.
Adaptive cargo size: Automatically detect height (300-2200mm) and width (500-1500mm) through infrared sensors.

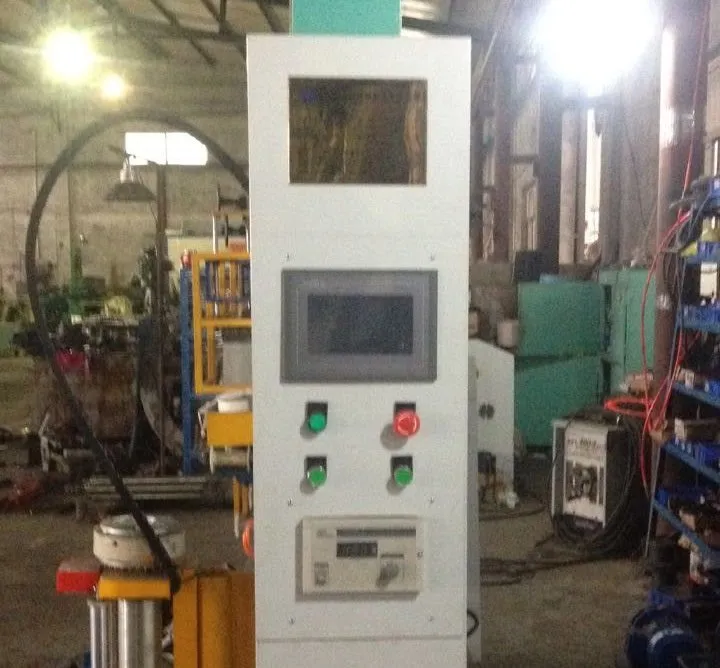

User-friendly interface: Equipped with a 7-inch color touch screen, support 50 sets of commonly used packaging programs.
Multi-functional expansion: Can be equipped with top laminating, topping, and automatic lifting devices.

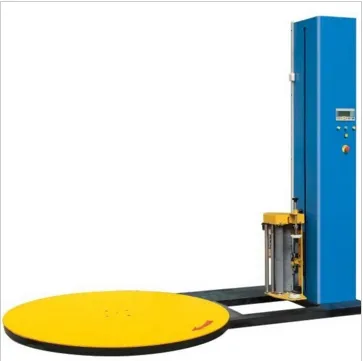

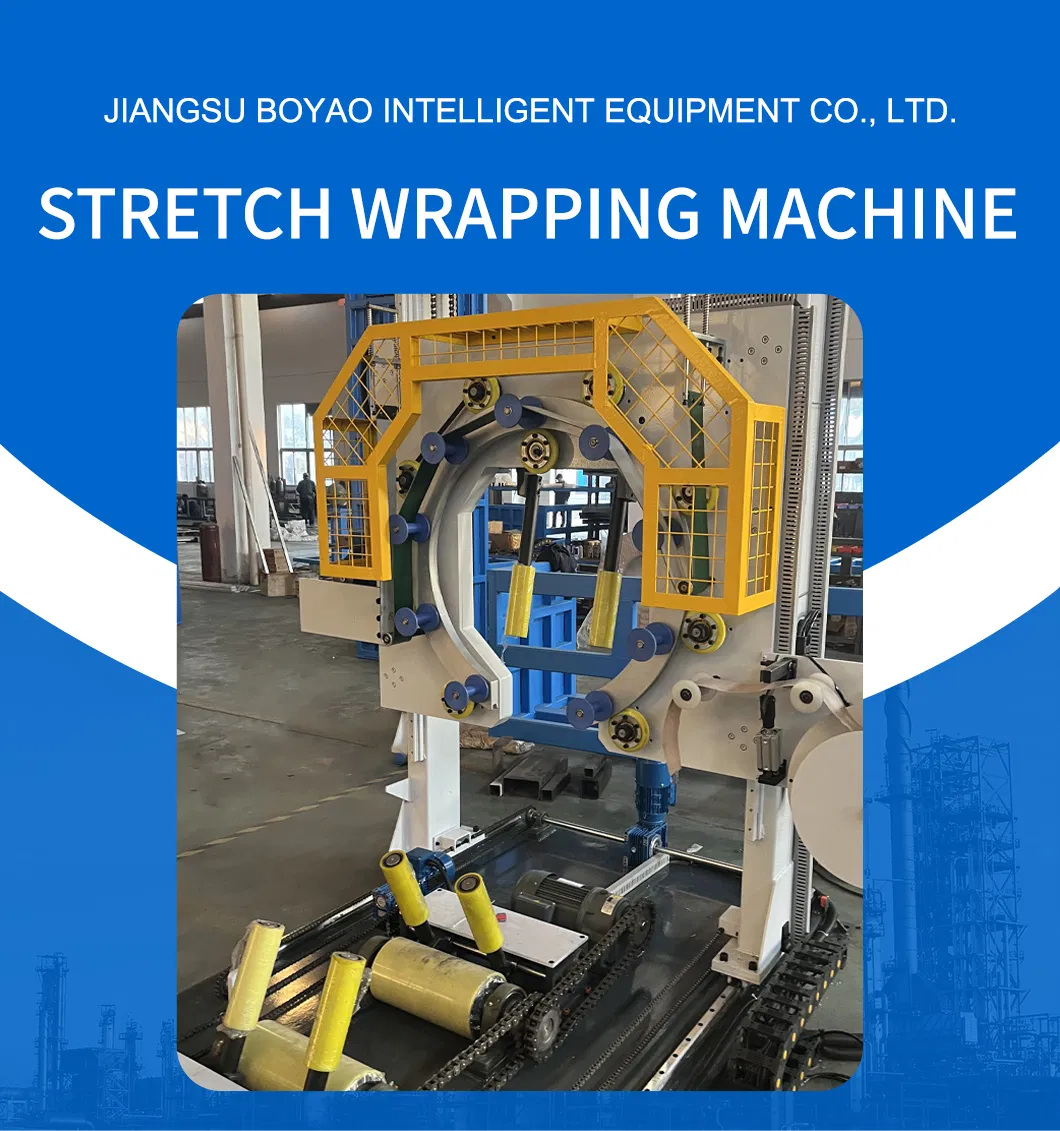

| Parameter Category | Standard Tray Winding Machine | Horizontal Winding Machine |
|---|---|---|
| Maximum Load | 2000kg (customizable to 5000kg) | 3000kg (customizable to 8000kg) |
| Package Size Range | L 500-1500, W 500-1200, H 300-2200mm | Diameter 100-600, L 500-3000mm |
| Winding Film Width | 500mm / 750mm (Optional) | 500mm / 750mm (Optional) |
| Packing Speed | 20-40 sec/Torr | 15-30 sec/piece |
| Tension Range | 5-50N | 10-60N |
| Control Mode | PLC + Touch Screen | PLC + Touch Screen / Key |
| Safety Certification | CE, ISO 9001 | CE, ISO 14001 |
