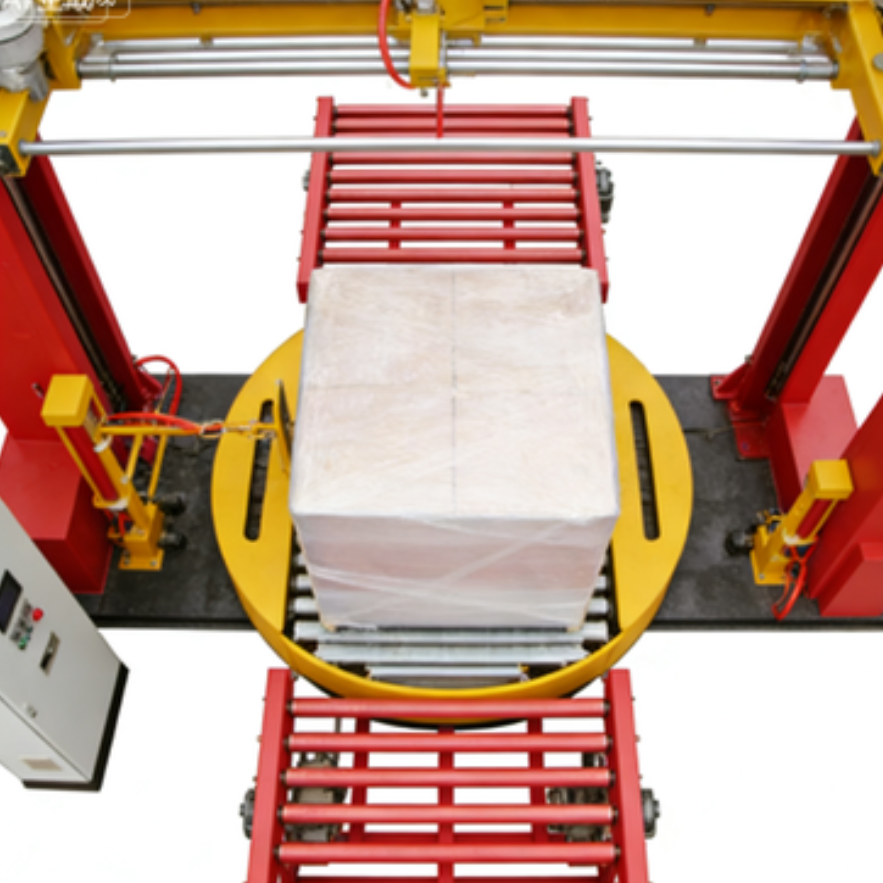

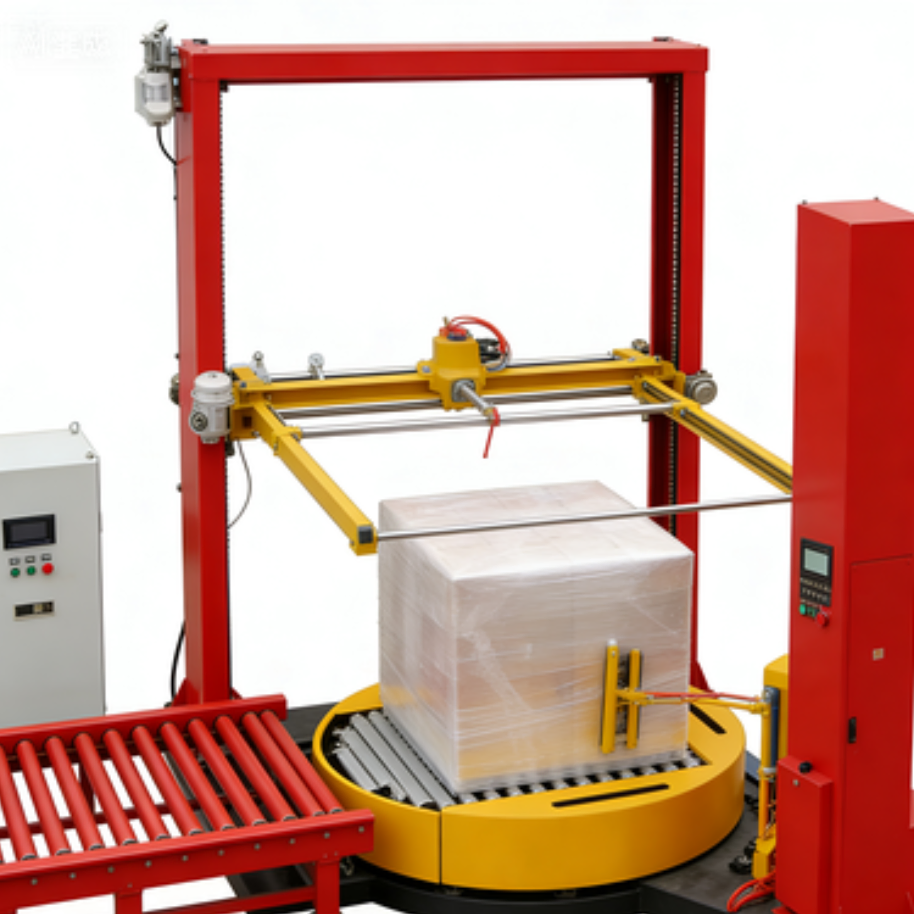

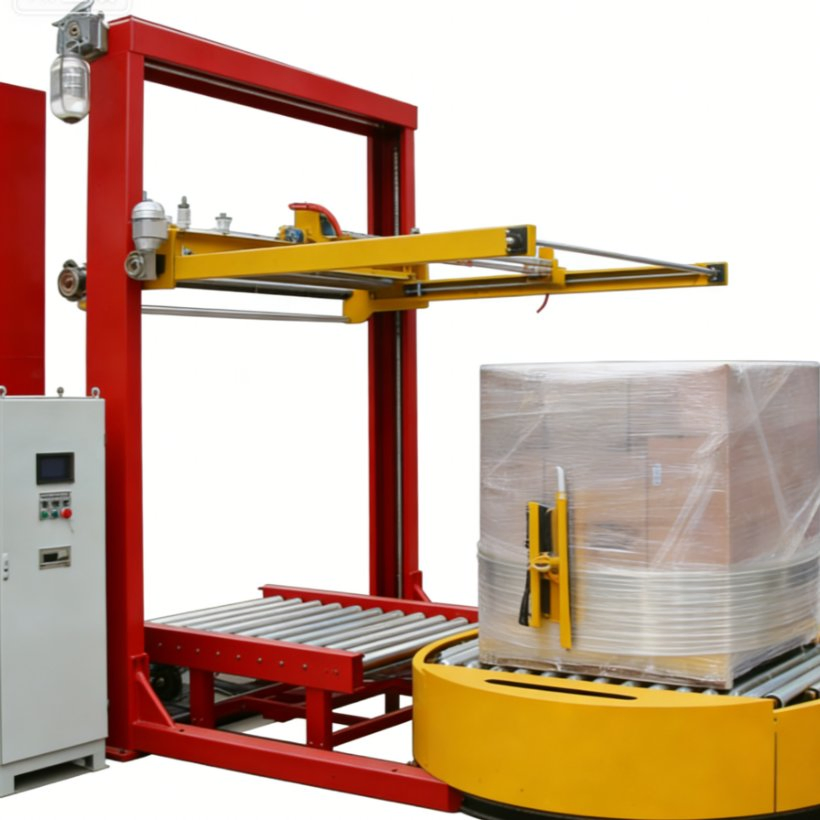

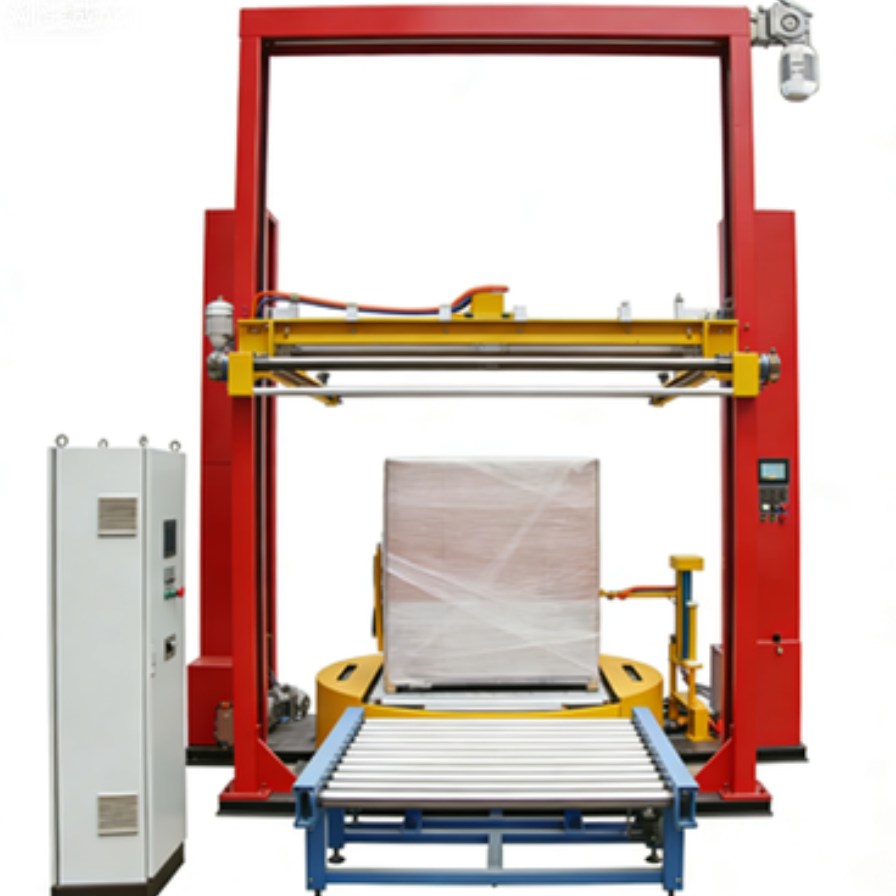

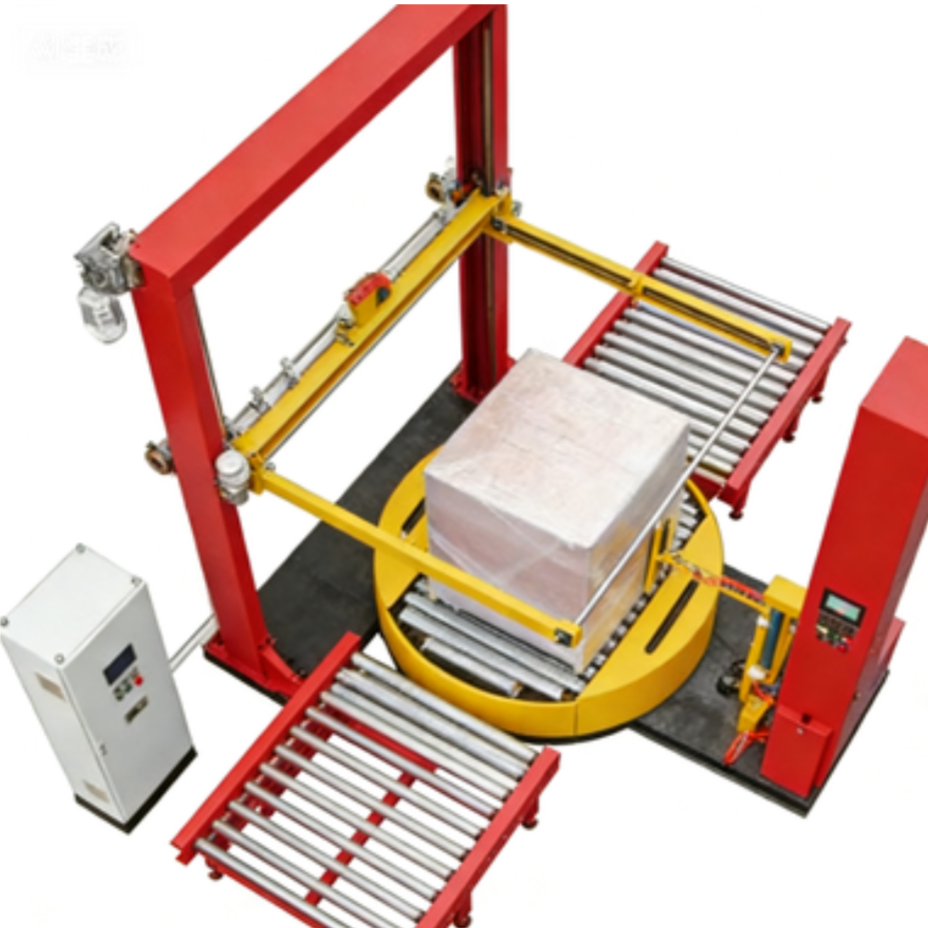

Wrapping machine is a kind of packaging equipment that automatically wraps goods through winding film, which is widely used in warehousing and logistics, food and beverage, medicine and chemical, building materials and home furnishing industries. Its core value is to replace manual winding operations, solve the problems of waste of film materials, low packaging efficiency, and unstable fixation of goods, realizing standardization and safety in transportation and storage.
Using PLC control system servo drive technology, the packaging cycle of a single pallet can be as low as 20-40 seconds, and the processing capacity per hour can reach 90-180 pallets, which is 10-15 times more efficient than manual labor. Supports automatic film application, film breaking, and mucous film integration operation without manual intervention.
Adjustable tension control: Stepless adjustment (5-50N) matches the best winding force for goods ranging from fragile items to heavy machinery.
Intelligent layer setting: Preset winding layers for top, bottom, and main body to ensure maximum protection.
Film-saving design: Photoelectric sensors identify cargo height to reduce waste by 15%-20%.

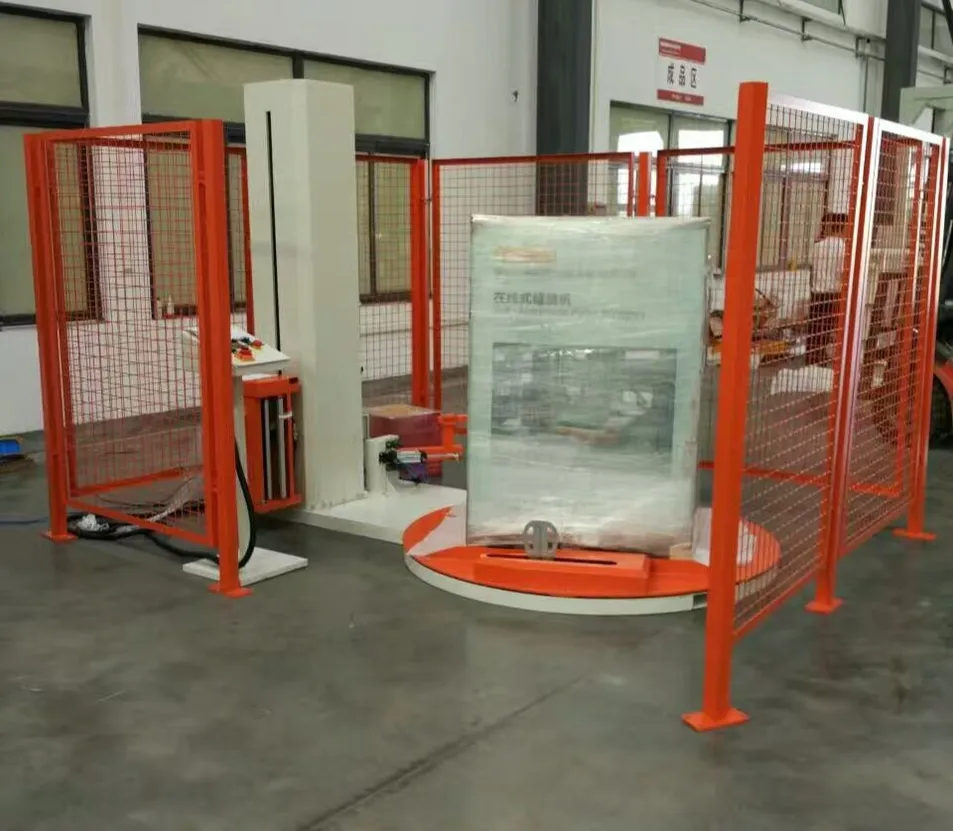

Welded with high-quality steel, the turntable can bear up to 2000-5000kg with minimal running smoothness error (≤2mm). Equipped with emergency stop buttons, safety fences, and photoelectric hand guards, complying with international safety standards (CE, ISO 12100). High MTBF (≥ 1000 hours) ensures low maintenance.
| Parameter Category | Standard Tray Winding Packaging Machine | Horizontal Winding Packing Machine |
|---|---|---|
| Maximum Load | 2000kg (can be customized to 5000kg) | 3000kg (can be customized to 8000kg) |
| Package Size Range | Long 500-1500mm, Width 500-1200mm, High 300-2200mm | Diameter 100-600mm, Length 500-3000mm |
| Winding Film Width | 500mm/750mm (Optional) | 500mm/750mm (Optional) |
| Packing Speed | 20-40 sec/Pallet | 15-30 sec/piece |
| Membrane Frame Tension Range | 5-50N | 10-60N |
| Control Mode | PLC + Touch Screen | PLC + Touch Screen / Key Control |
| Power Requirements | 220V/380V/50Hz, 1.5-3kW | 380V/50Hz, 2.2-4kW |
| Safety Certification | CE, ISO 9001 | CE, ISO 14001 |
