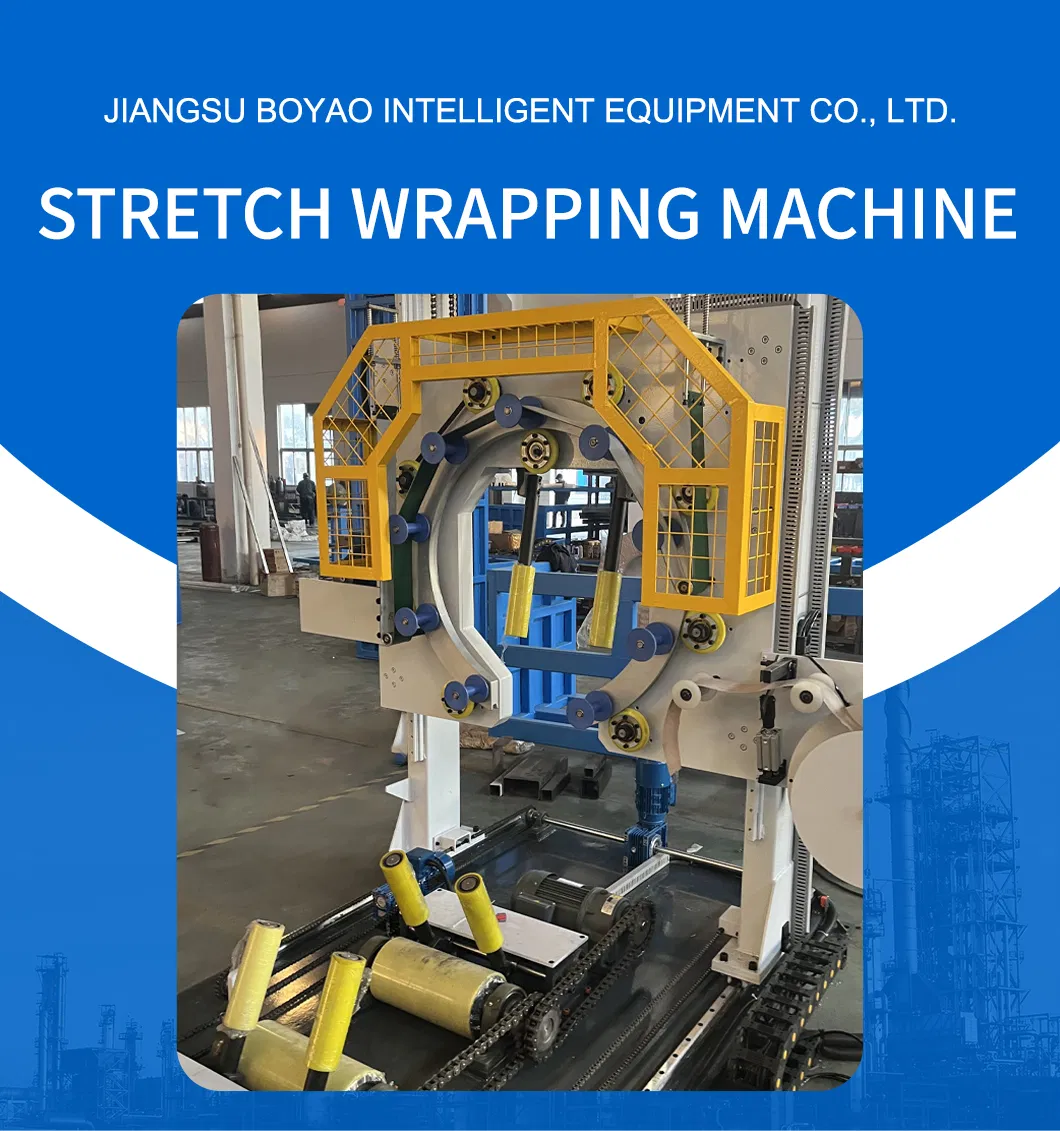

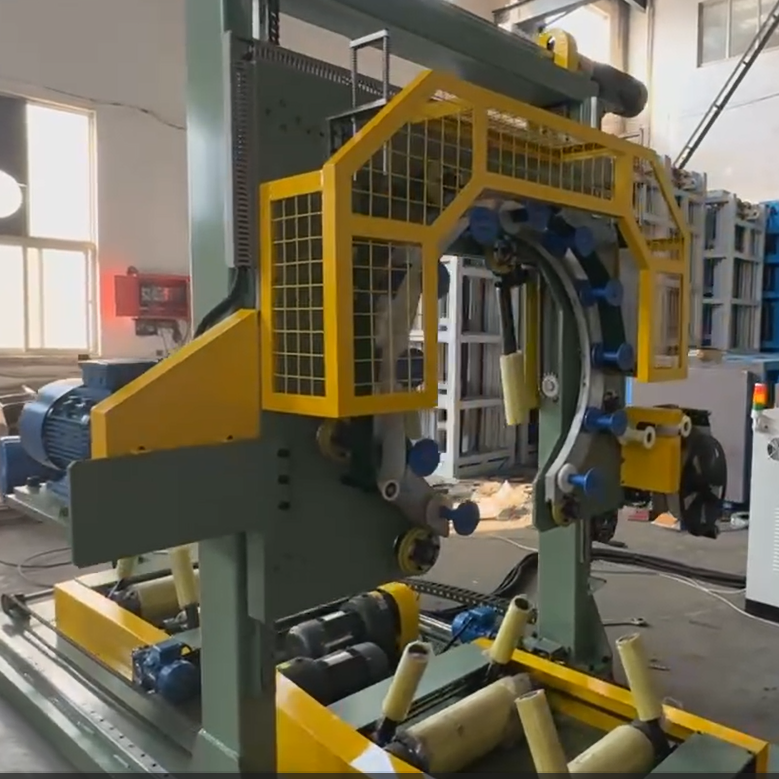

Wrapping machine is a kind of packaging equipment that automatically wraps goods through winding film, which is widely used in warehousing and logistics, food and beverage, medicine and chemical, building materials and home furnishing industries. Its core value is to replace manual winding operations, solve the problems of waste of film materials, low packaging efficiency, and unstable fixation of goods.
Using PLC control system servo drive technology, the packaging cycle of a single pallet can be as low as 20-40 seconds, and the processing capacity per hour can reach 90-180 pallets, which is 10-15 times more efficient than manual labor. Supports automatic film application and breaking without manual intervention.
Adjustable tension control: 5-50N range to match best winding force for different goods. Intelligent layer setting ensures protection strength of key parts. Photoelectric sensors increase film utilization rate by 15%-20%.

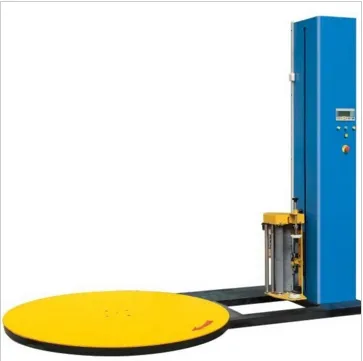

| Parameter Category | Standard Tray Winding Machine | Horizontal Winding Machine |
|---|---|---|
| Maximum Load | 2000kg (Customizable to 5000kg) | 3000kg (Customizable to 8000kg) |
| Package Size Range | L 500-1500mm, W 500-1200mm, H 300-2200mm | Diameter 100-600mm, Length 500-3000mm |
| Winding Film Width | 500mm/750mm (Optional) | 500mm/750mm (Optional) |
| Packing Speed | 20-40 sec/pallet | 15-30 sec/piece |
| Tension Range | 5-50N | 10-60N |
| Control Mode | PLC + Touch Screen | PLC + Touch Screen |
| Power Requirements | 220V/380V, 1.5-3kW | 380V/50Hz, 2.2-4kW |
