Product Description

Basic Information

Driven Type:Electric

Packaging:Case

Transport Package:Wooden Case

HS Code:84224000

Product Overview

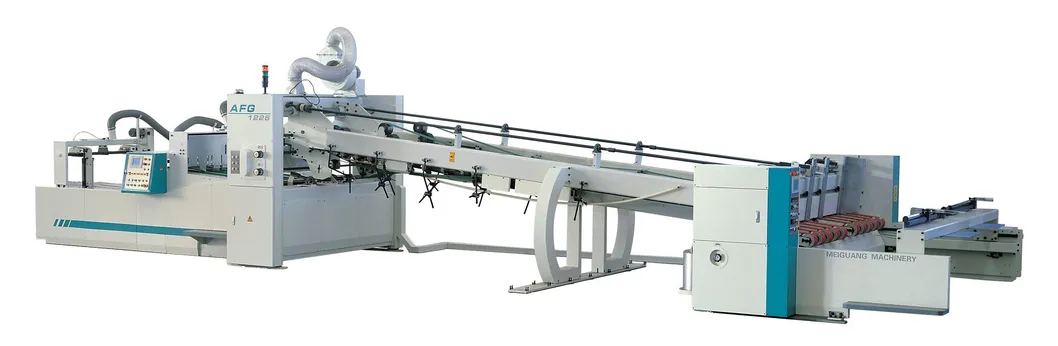

The AFG1226 automatic folder gluer is a heavy-duty single station machine designed for high efficiency and reliability. Engineered for easier adjustment and maintenance, it offers a superior cost-performance ratio for modern packaging automation. The system comprises four primary sections: feeding, folding, power/squaring, and stacking/counting.

It handles cardboard sizes ranging from 260x740mm up to 1200x2600mm, achieving a top speed of 120m/min, significantly improving both working efficiency and production quality.

Key Features

High Capacity: Exceptional processing for thicker and larger cardboards.
Durable Design: Optimized for large batch production with high-quality rubber belts.
Quick Setup: Rapid order switchover within 3-5 minutes with memory function.

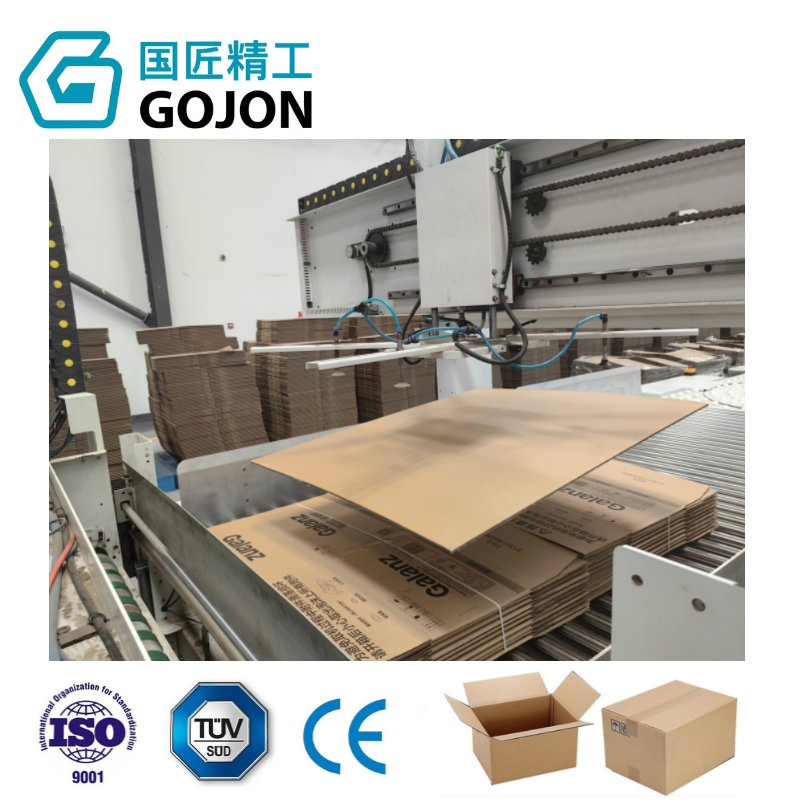

Feeding Section: Vacuum suction feeding with adjustable rear registers for warped blanks.
Gluing Unit: Automatic glue circulation system with optional plasma surface treatment.
Precision Folding: 90-degree structure improves accuracy; creasing wheels feature horizontal fine-tuning (Patented).
Control System: Full PLC automation with original status reset and micro-adjustment functions.

Technical Specifications

Max Machine Speed: 120 m/min

Pasting Speed: 120~220 sheets/min

Paperboard Thickness: A, B, C, AB, BC (3ply & 5ply)

Production Output: 4,000 - 12,000 sheets/h

Total Power: ~20.2 kW (Normal work: 5-10 kW)

Dimensions: 13800mm × 4250mm × 3100mm

Weight: Approx 13.5 Tons

Voltage: 380V, 3P/PE, 50Hz

Output Performance

Sheet Size (C)	Bundle Size	Bundles / min	Sheets / min
Less than 450mm	10 sheets	18	180
Less than 450mm	20 sheets	12	240
451mm - 600mm	10 sheets	16	160
601mm - 800mm	10 sheets	12	120
801mm - 1200mm	10 sheets	9	90

Industry Application

This folder gluer is widely used in the food, beverage, and industrial sectors. It is the ideal solution to replace manual or semi-automatic gluing processes, offering stable quality and reduced manpower costs.

Packing cartons for cigarette manufacturing.
Dairy product packaging (Milk cartons).
Beverage and milky tea cardboard containers.
General industrial product shipping boxes.

Frequently Asked Questions

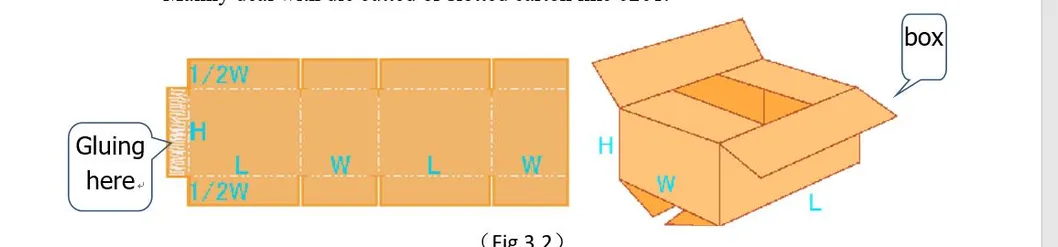

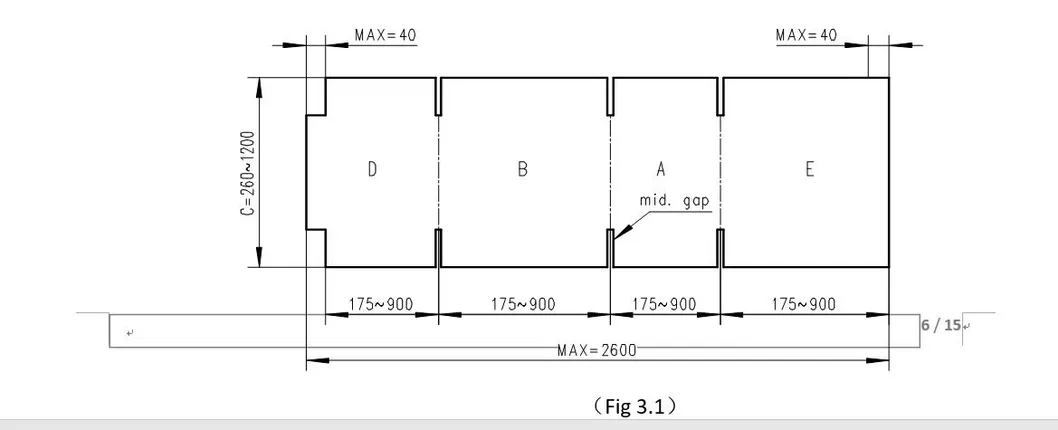

1. What is the maximum size of cardboard this machine can handle? The AFG1226 can process cardboard with a maximum size of 1200mm x 2600mm and a minimum size of 260mm x 740mm.

2. Which types of corrugated board are compatible? It supports A, B, C, AB, and BC flute types, including both 3-ply and 5-ply corrugated boards.

3. How fast can the machine switch between different orders? Thanks to the PLC control and order memory function, a complete order switchover can be finished within 3 to 5 minutes.

4. What are the power requirements for operation? The total installed power is approximately 20.2 kW, though typical power consumption during normal operation ranges between 5-10 kW.

5. What type of glue is recommended? PVA (Polyvinyl Acetate) or other eco-friendly closed-environment protection bonds are suggested for optimal results.

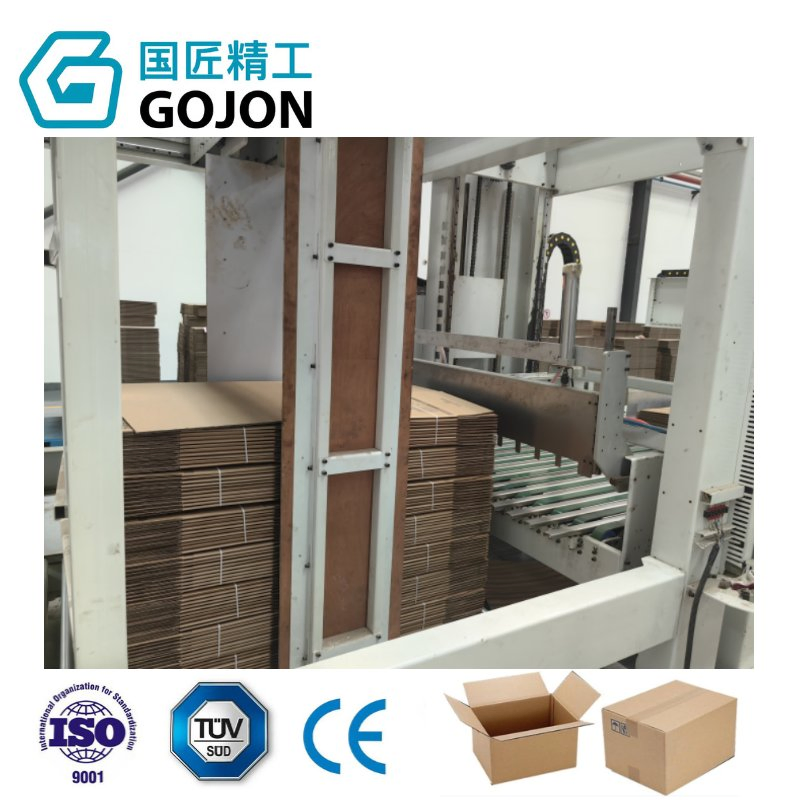

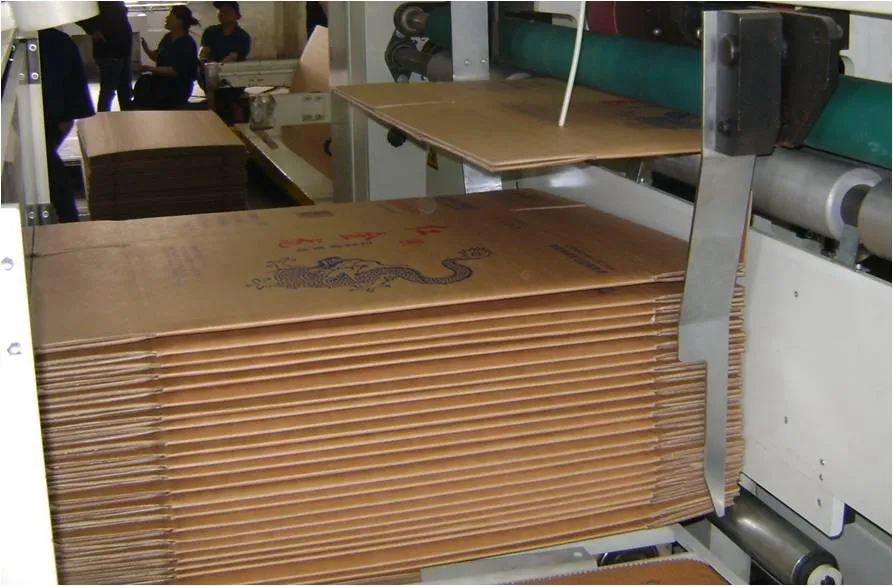

6. Does the machine include a counting and stacking feature? Yes, it features a falling count stacking section which decreases friction on printed boards and ensures high reliability in output.
