| Model NO. | SLA-S-Y |
| Waterproof | Waterproof |
| Type | Antistatic Agents |
| Material | Metal |
| Usage | Combustible & Explosive Area |
| Transport Package | Carton or Plywood Case |
| Specification | 45*35*16 cm |
| Origin | China |
| HS Code | 8537109090 |
| Production Capacity | 50000 PCS/Year |

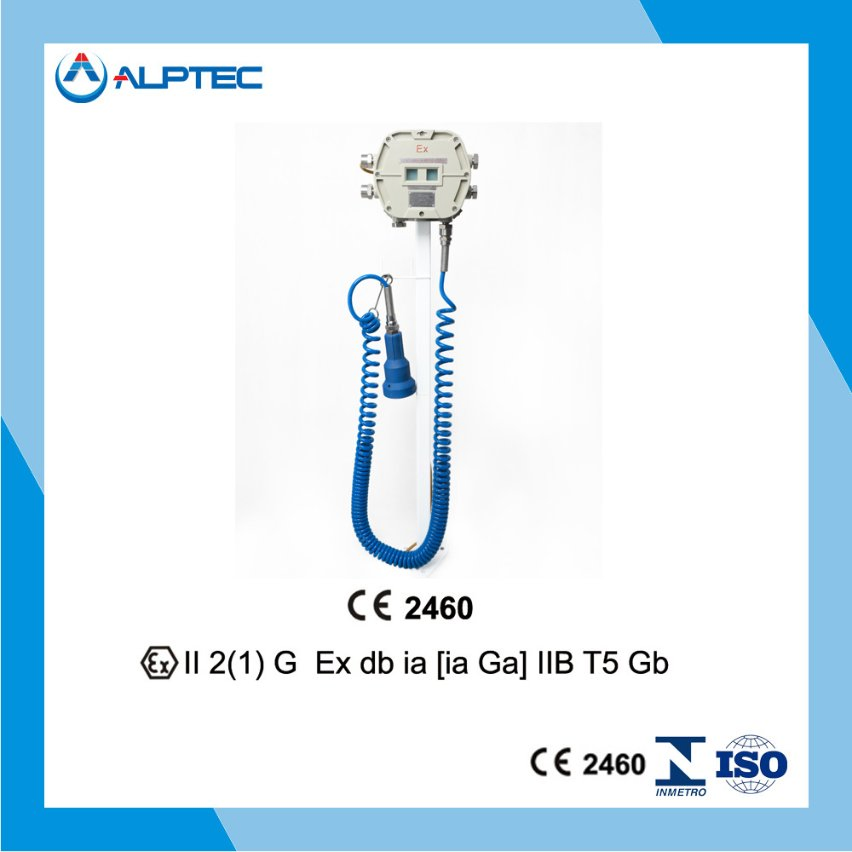

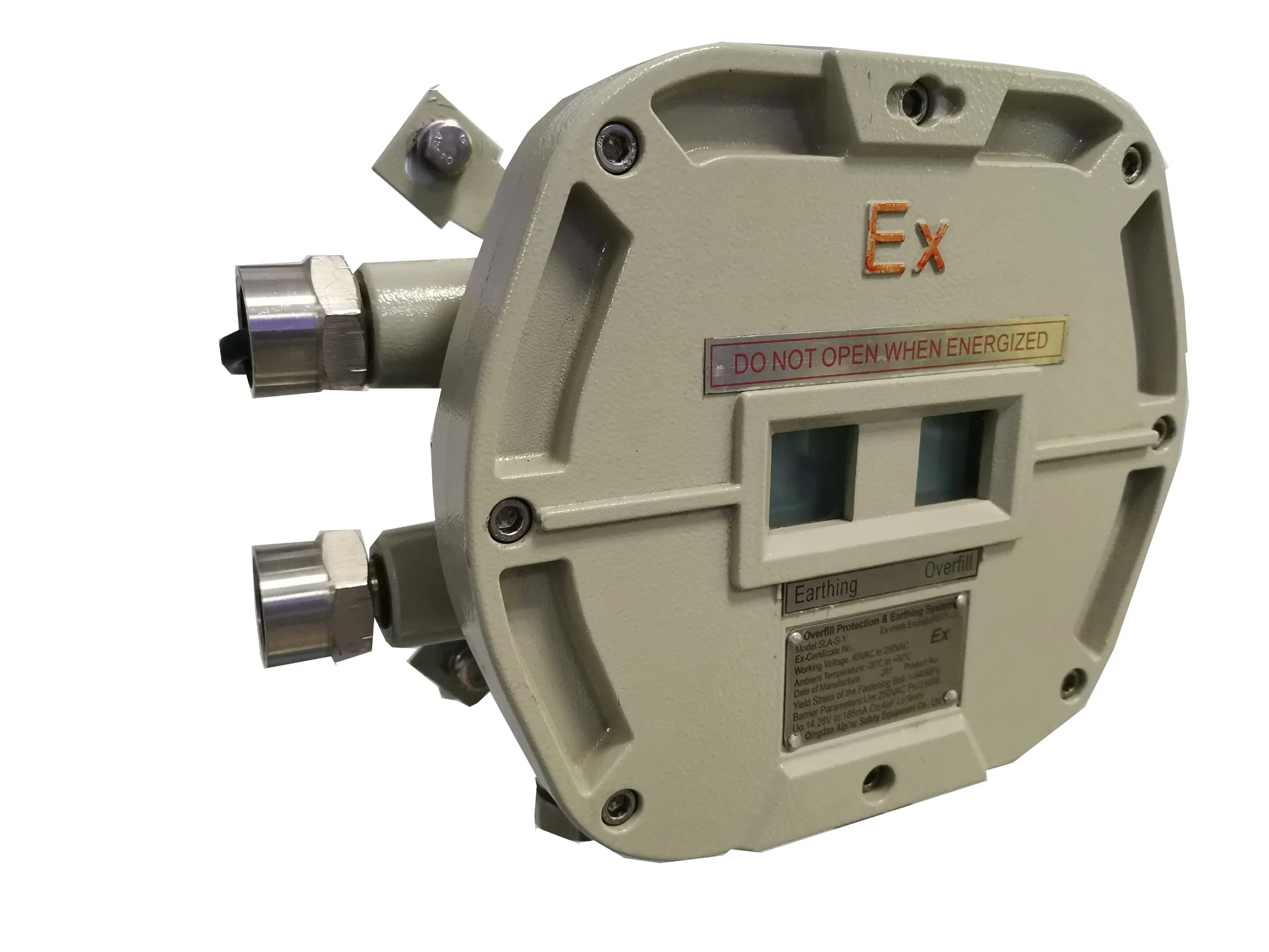

API Standard Approved / Static Earthing / Overfill Prevention / Overfill Protection / Bonding and Grounding System

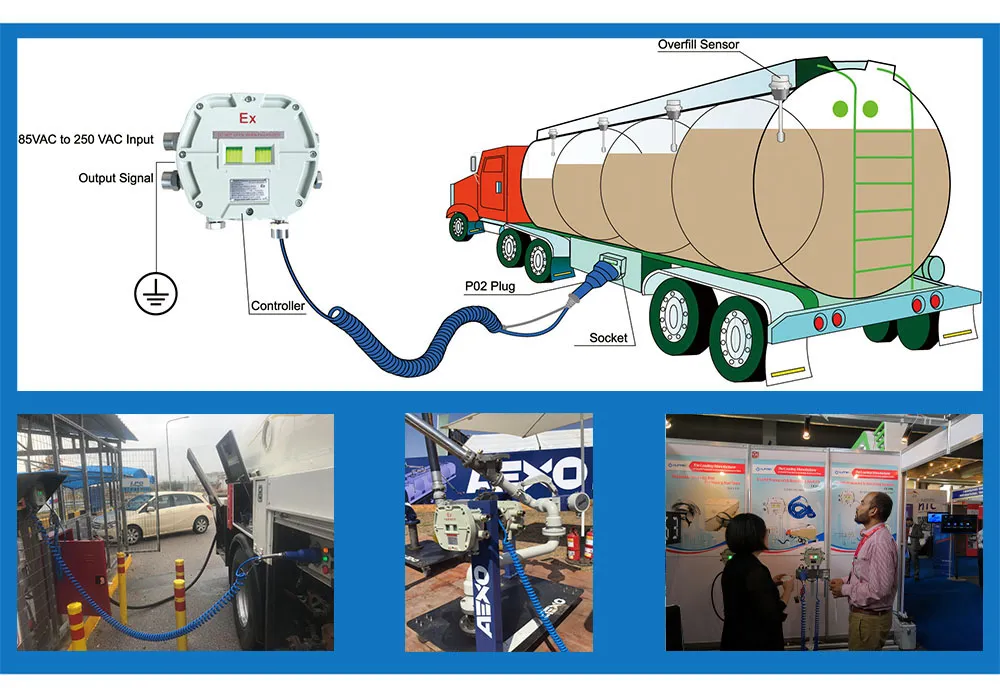

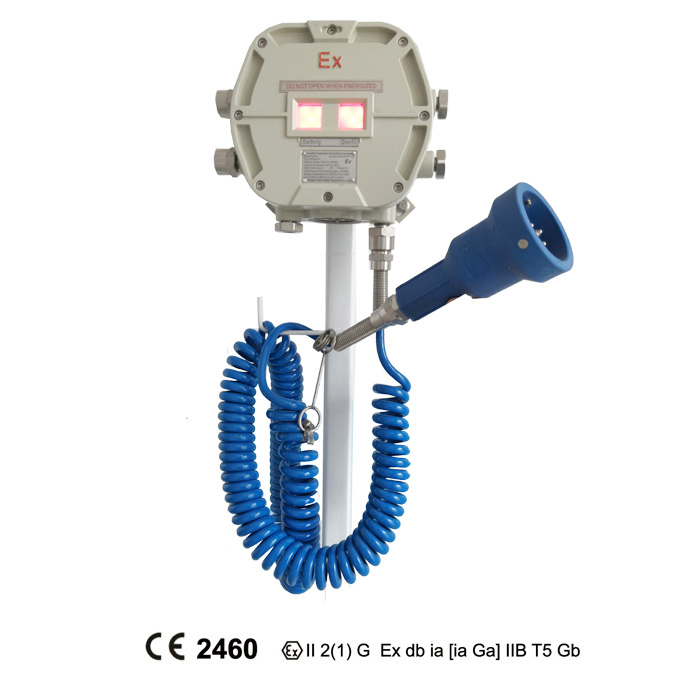

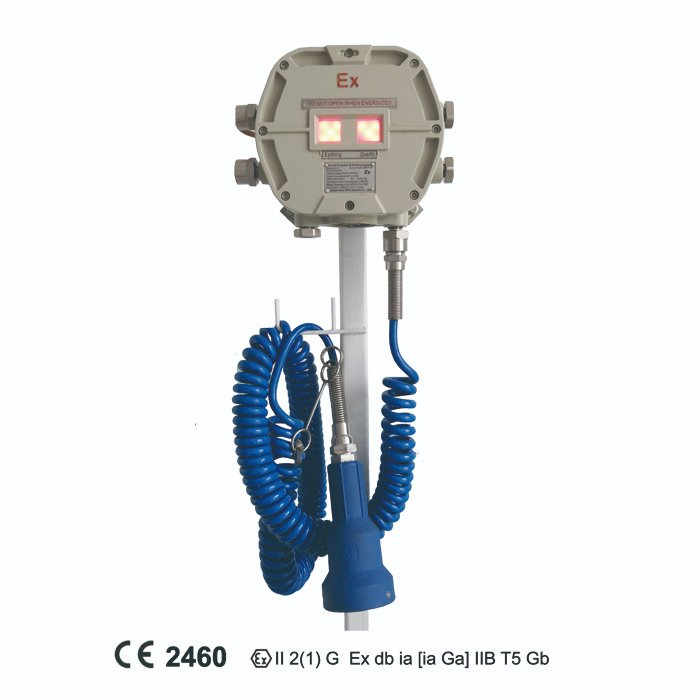

The ATEX approved "Overfill Protection and Earthing Systems" are designed for bottom loading of tank trucks, rail cars, etc. In the event of an overfill condition, the overfill sensor will send a signal through the output relay to the terminal automated loading system to shut down the loading operation. The systems provide overfill protection as well as grounding verification.
| Input Power | 85VAC to 250VAC 50Hz |
| Input Current | < 60mA |
| Output Signal | On-Off signal |
| Monitoring Set Point | 10 ohms |

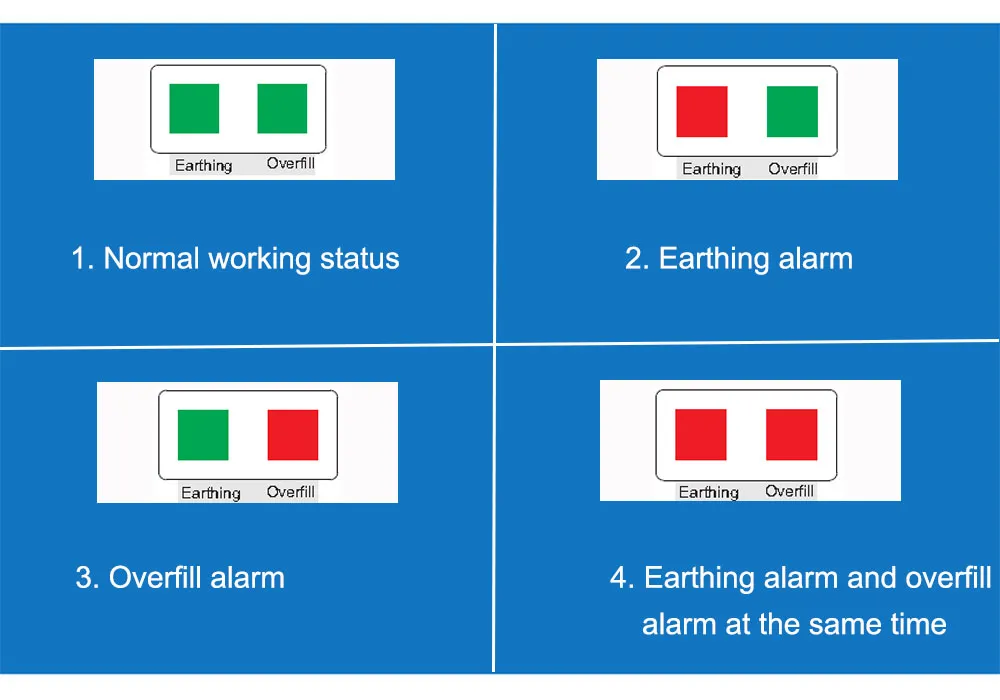

| Alarm | Visible alarm |

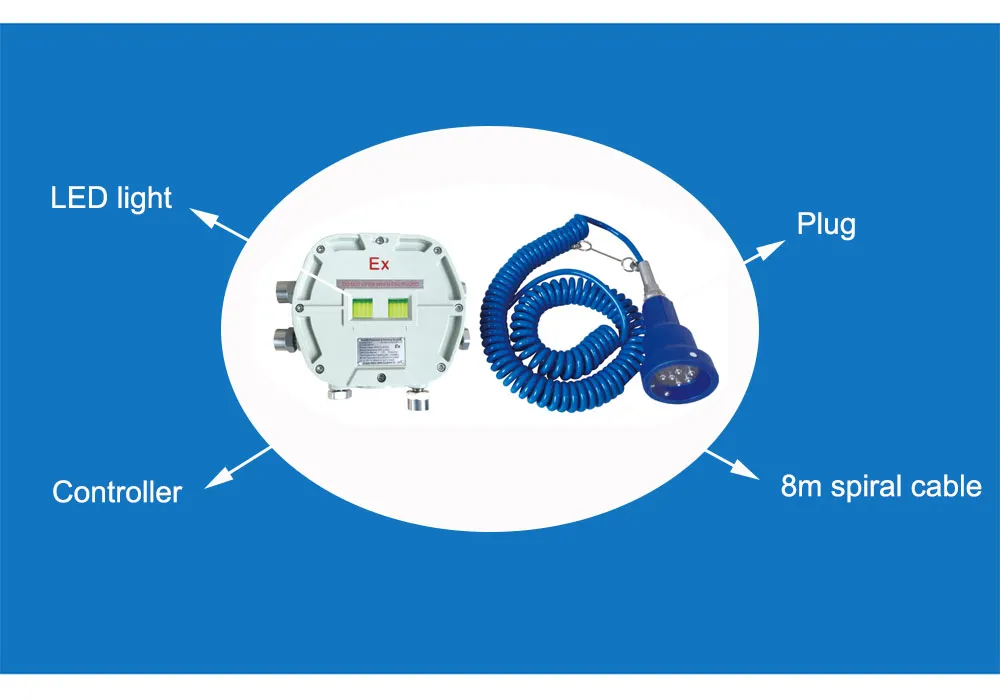

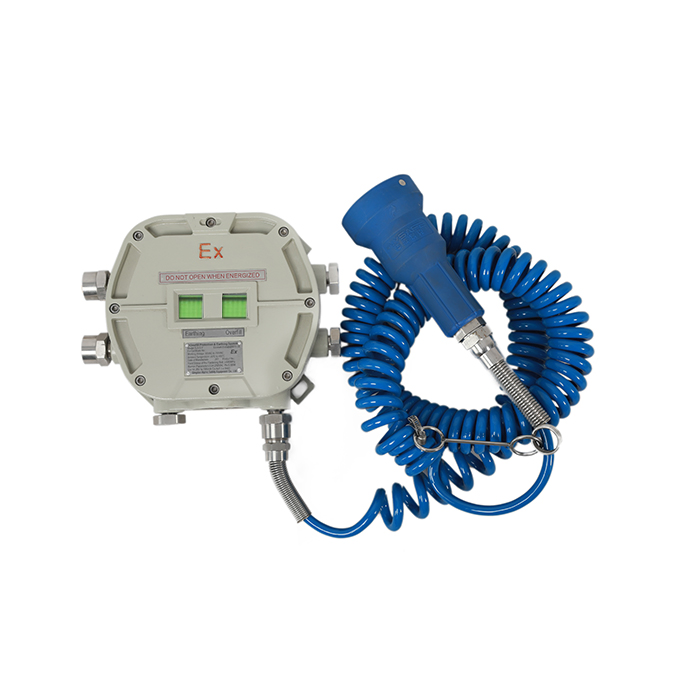

| Spiral Cable | Extendable to 8m (26ft.) |
| Output Safety Parameters | Um:250VAC, Uo:21.42VDC, Io:149mA, Po:798mW, Co:1.19μF, Lo:6.4mH (for overfill sensor) |
| Safety Parameters (Earthing) | Um:250VAC, Uo:14.28VDC, Io:96.2mA, Po:343mW, Co:4.28μF, Lo:15.4mH |
| Ambient Temperature | -20ºC to +55ºC (-4ºF to +131ºF) |

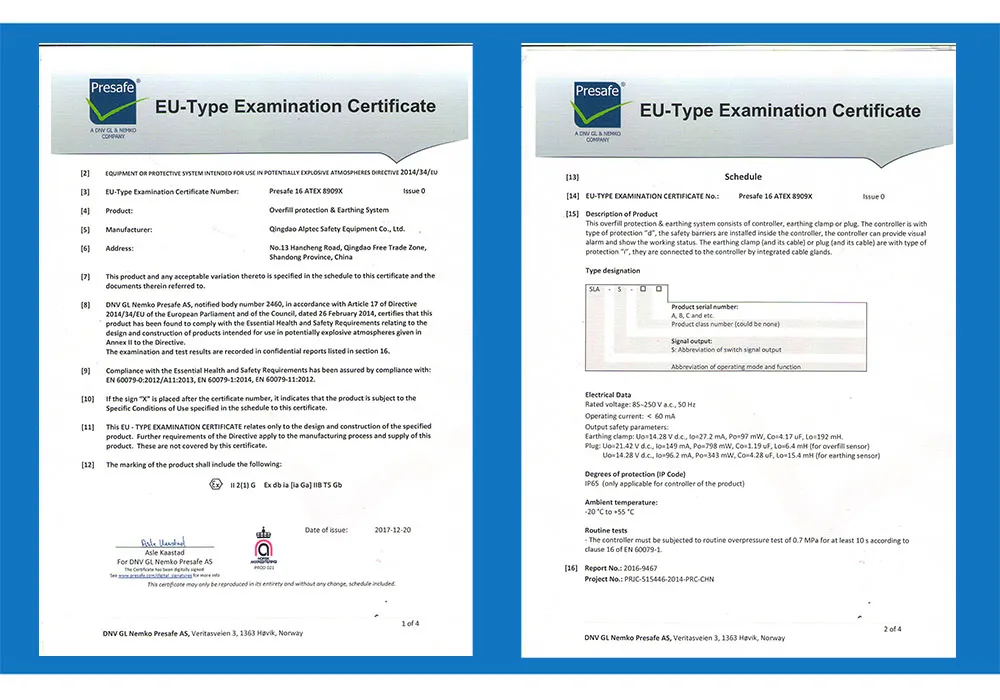

| ATEX Certification | Presafe 16 ATEX 8909X / 7744Q |
| Standard | EN60079-0, EN60079-1, EN60079-11 |
Established in 1996, our company specialises in the design, manufacture, and supply of high-quality Overfill Protection as well as Static Grounding Systems, Earthing Clamps, Reels and accessories for the process industries that transport, store, and transfer flammable liquids in hazardous areas.
We have secured a significant market share in China and began international exporting in 2006 to over 20 countries across Europe, America, Asia, and Africa.
