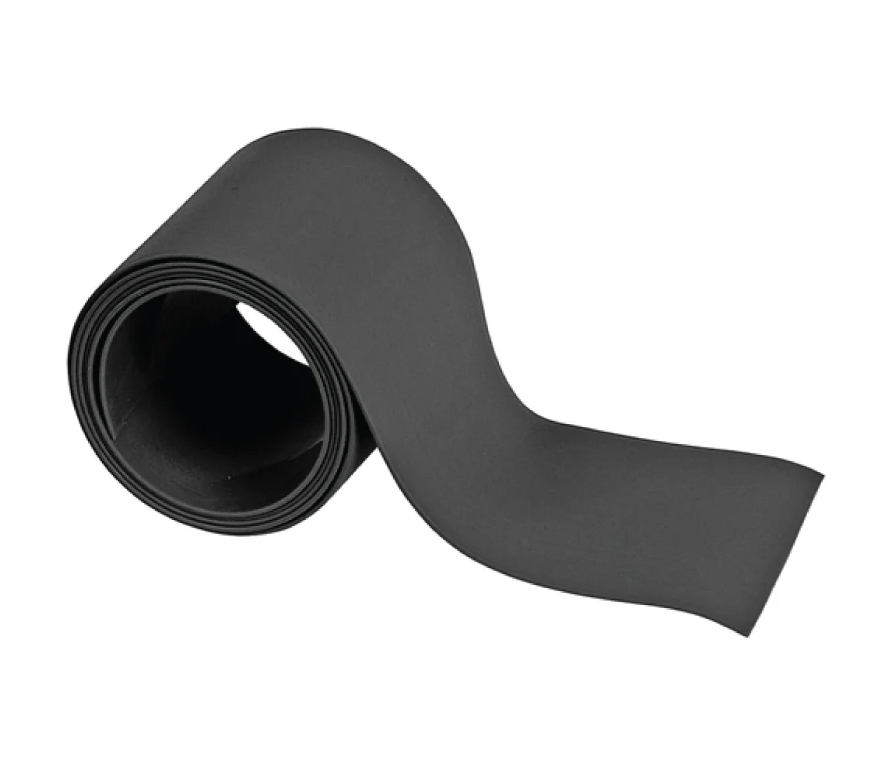

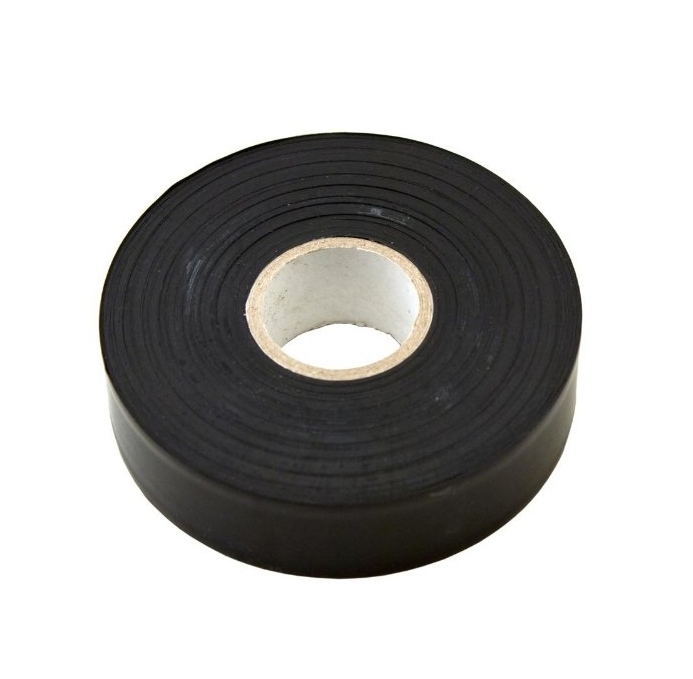

Polyethylene Anti-corrosion Pipeline Heat Shrink Wrap Tape
System Description:

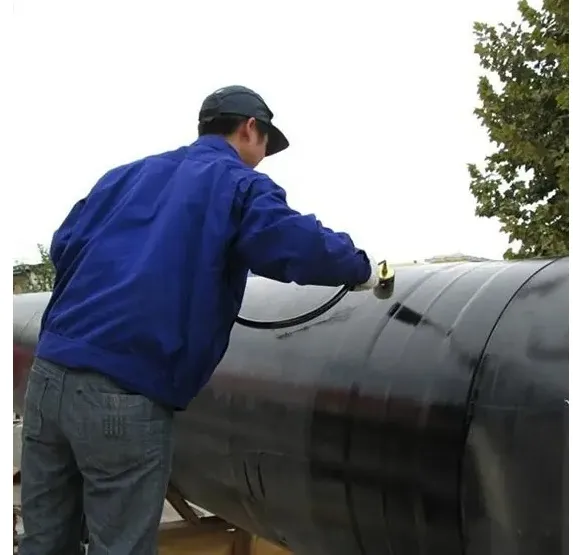

Polyethylene Heat Shrinking Tape is a wrap-around radiation cross-linked tape designed for corrosion protection of straight pipes, fittings, bends, elbows, and irregular configurations. When heated, the backing layer shrinks and the adhesive forms a reliable corrosion protection seal onto metal and adjacent coating surfaces.
Product Composition:
Consists of three layers: Primer layer (Liquid epoxy), Adhesive layer (High shear strength copolymer), and Film backing (Radiation cross-linked high-density polyethylene).
| Property | Typical Value | Test Method |
|---|---|---|
| Tensile Strength | 20MPa (2900 psi) | ASTM D-638 |
| Elongation at Break | 550% | ASTM D-638 |
| Specific Gravity | 0.95 | ASTM D-792 |
| Hardness, Shore D | 48 | ASTM D-2240 |
| Dielectric Strength | 20 kv/mm | ASTM D-149 |
| Water Absorption | 0.05% | ASTM D-570 |
| Softening Point | 85ºC | ASTM E-28 |
| Peel to Steel | 35N/cm | ASTM D-4541 |

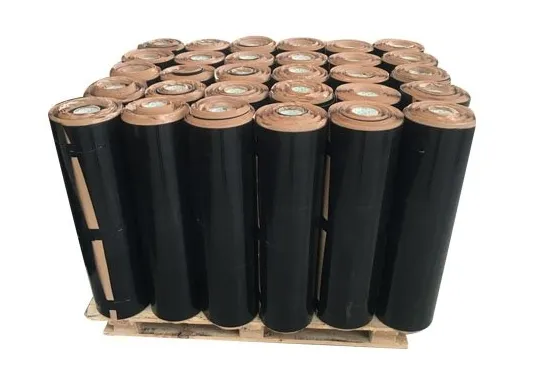

| Product Type | Standard Ordering Options |
|---|---|
| Tape Thickness | 2.0mm, 2.5mm or others |
| Tape Width | 450mm, 600mm, 900mm or others |
| Tape Length | 10m, 15m, 20m, 30m or others |
Our solutions provide expert structural reinforcement, leakage repair, and anticorrosion for industrial pipelines, alongside waterproof materials for construction projects like swimming pools and flooring.
