Ampure EDI Solutions with Global Technical Support and Training

i

Overview & Basic Info

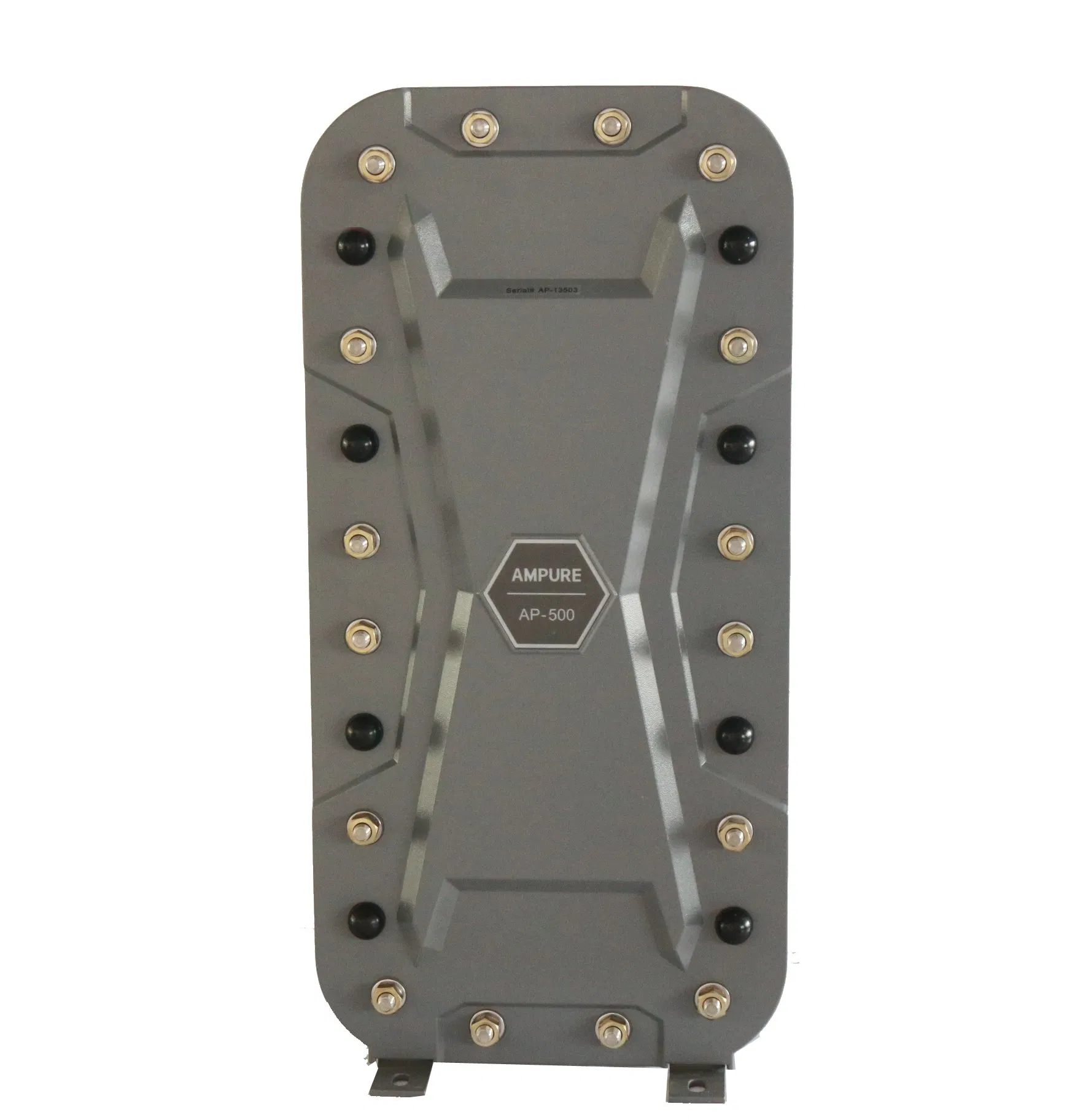

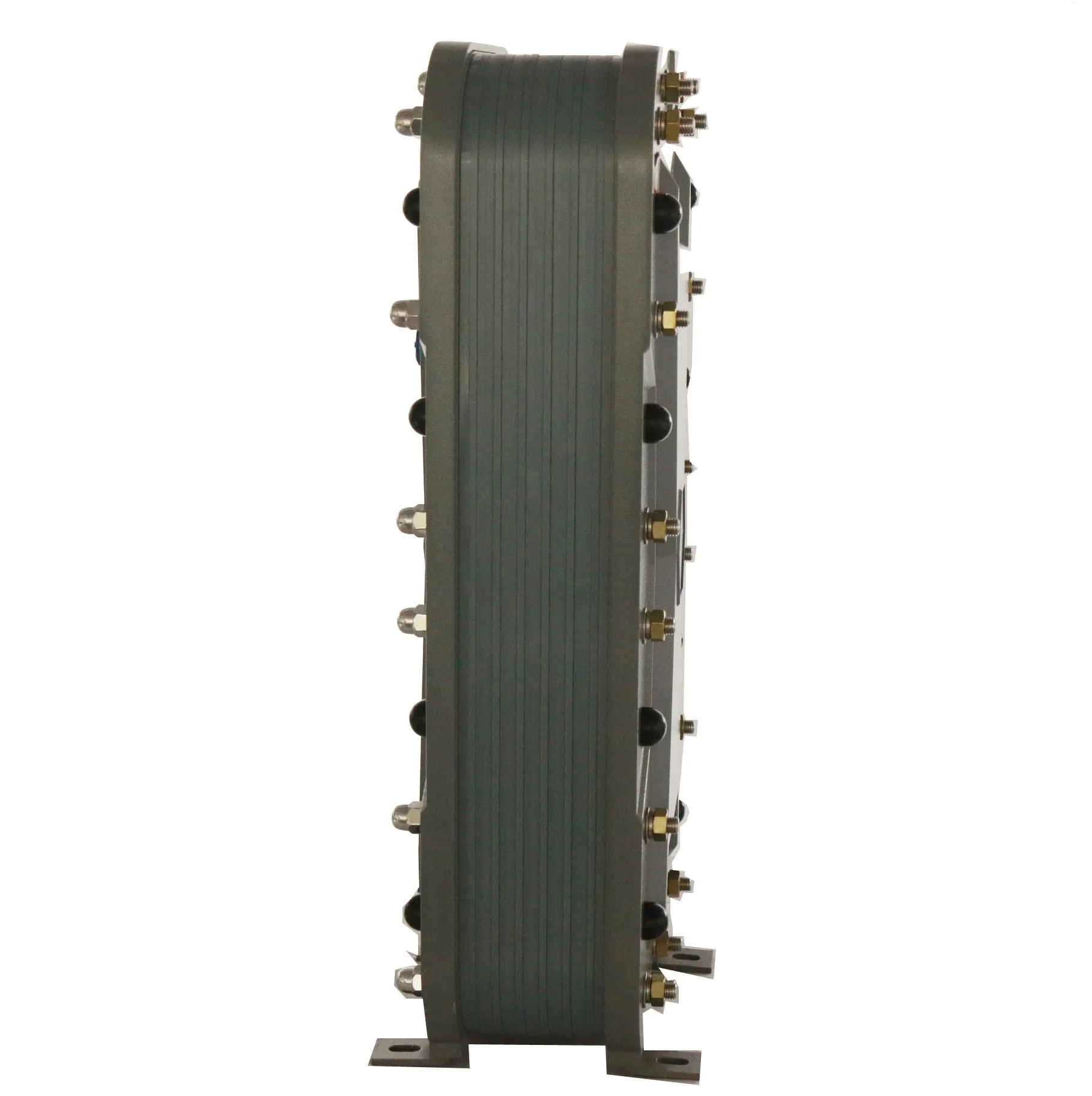

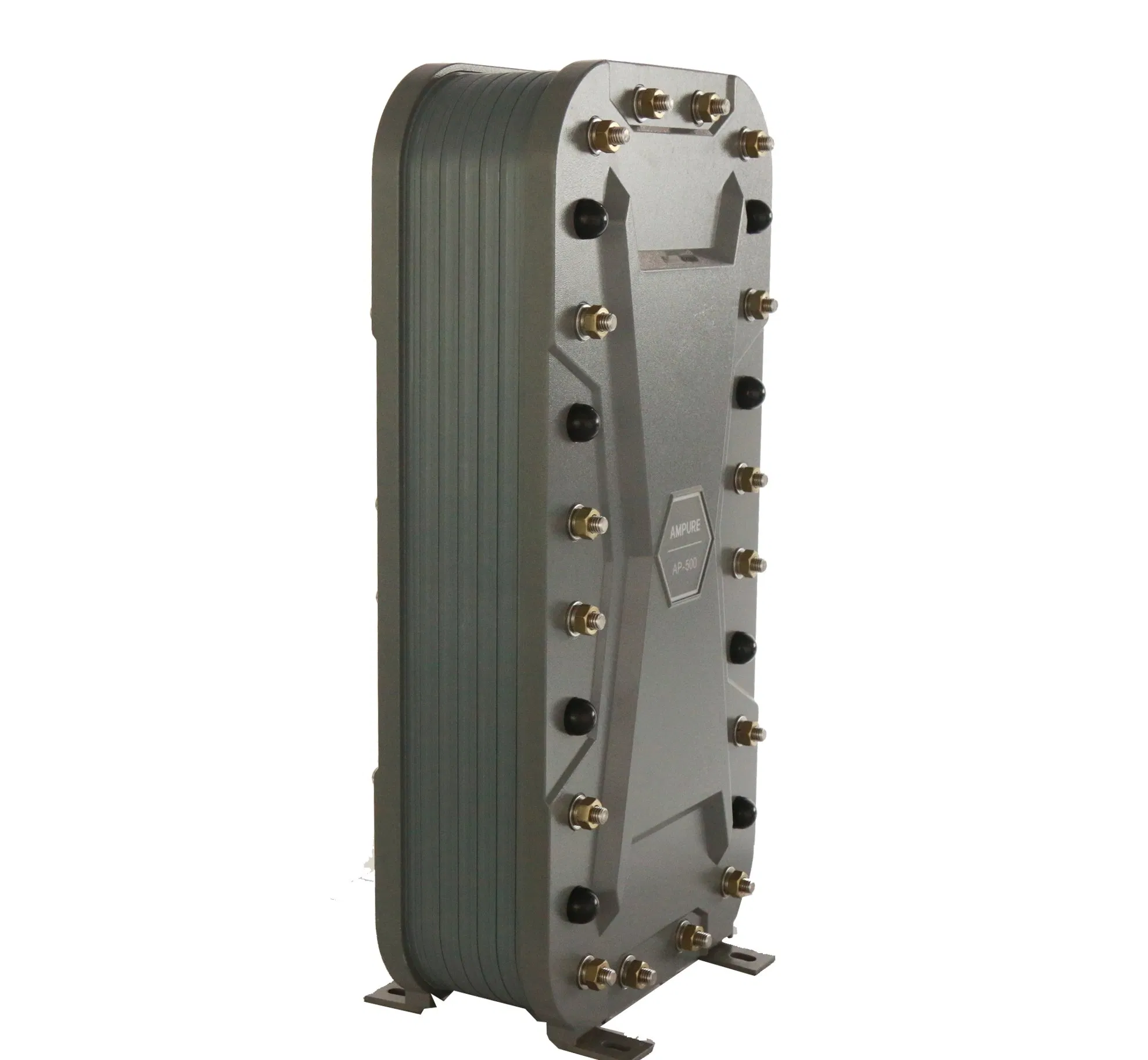

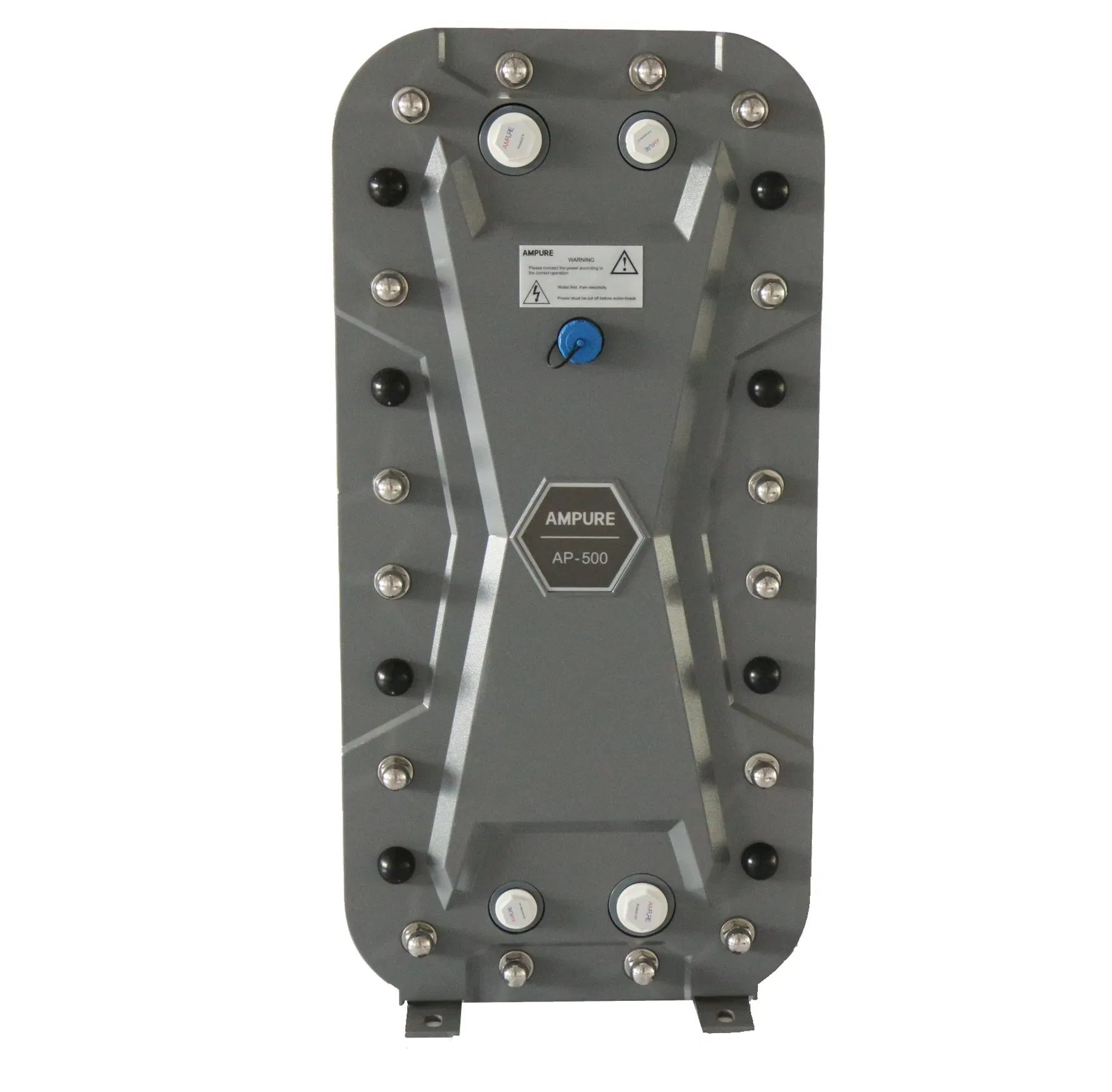

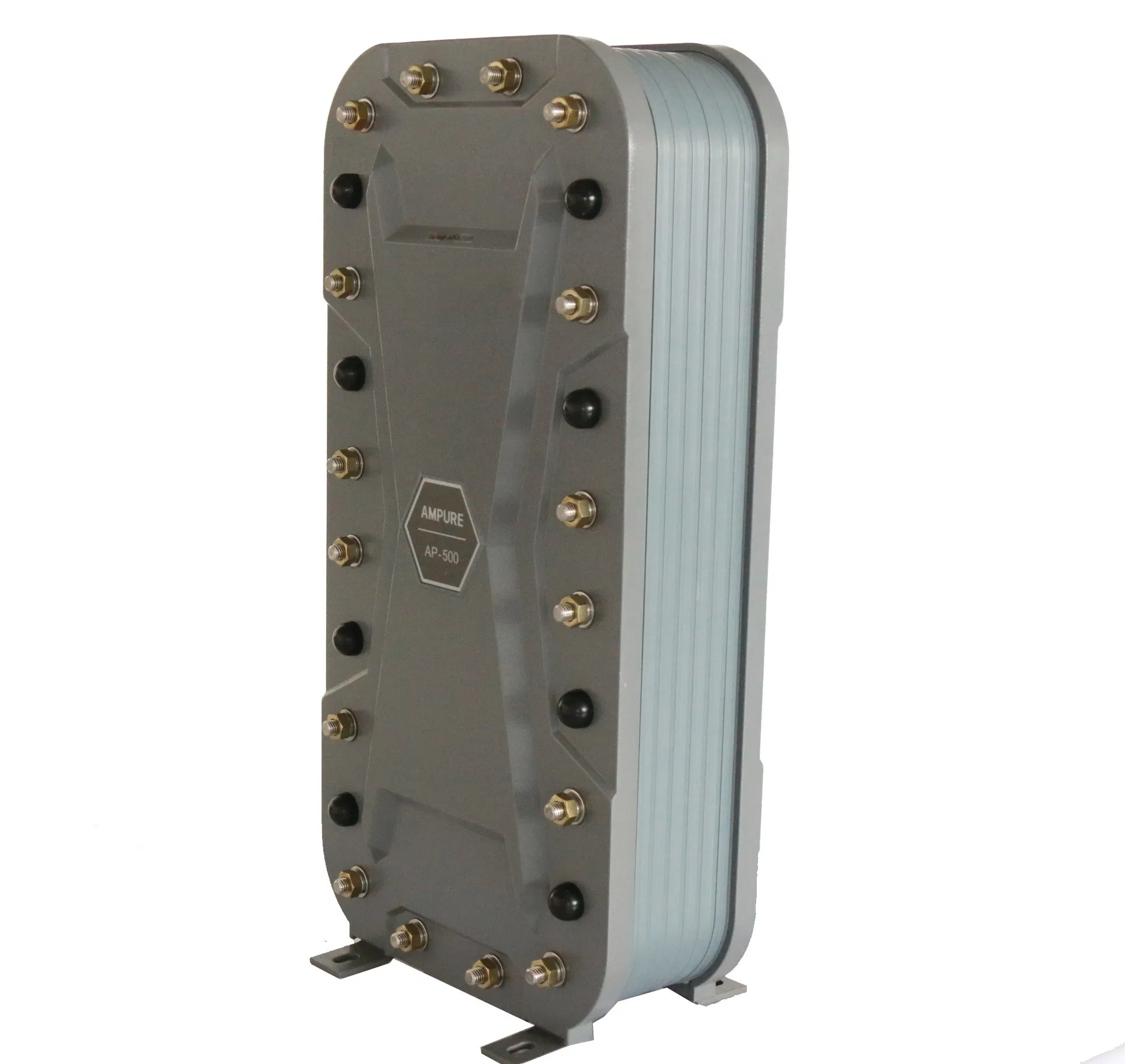

Model NO.	AP-500	Capacity	0.5t
Recovery Rate	90-95%	Working Current	1-4A

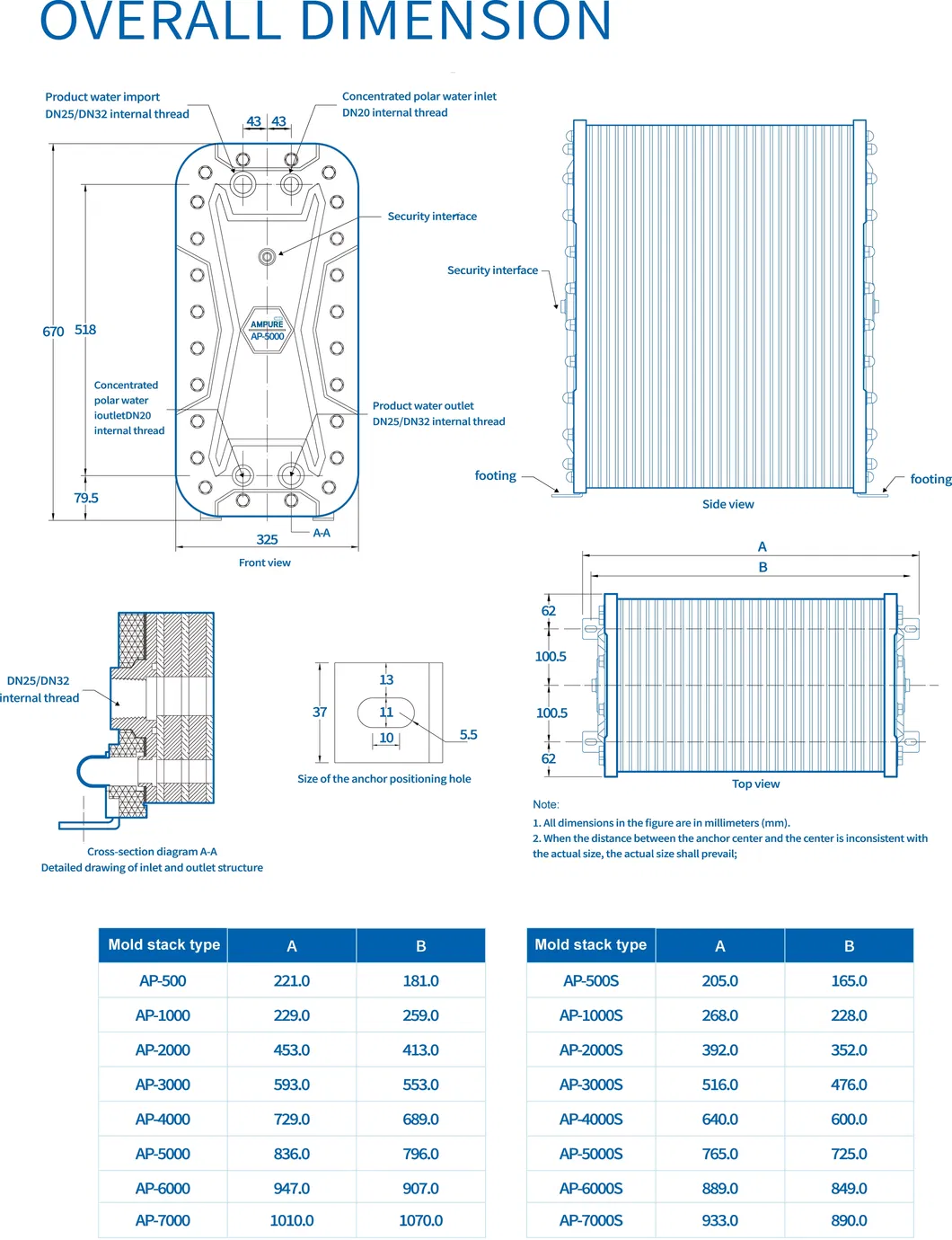

Product Resistivity	5.0-18 MΩ Cm	Specification	221325670 mm
Package Size	22.10cm * 32.50cm * 67.00cm	Gross Weight	35.000kg

★

Product Description

The EDI membrane reactor features low operating water resistance, lower driving force, and reduced carbon emissions. It delivers significant energy-saving effects and economic benefits, effectively improving effluent water quality.

Water quality can reach 17MΩ·cm, making it ideal for semiconductors, biomedicine, electric power, chemical industries, and hydrogen energy fields.

📋

Water Intake Index

Item	Range Value	Optimization Value
Conductivity	1~40 μS/cm	1~10 μS/cm
Hardness (as CaCO3)	<1.0mg/L	<0.1mg/L
Temperature	5~35°C	20~30°C
pH	6~9	7~8
Silica (SiO2)	<0.2 mg/L	<0.05mg/L
Inlet Pressure	0.05~0.25MPa	0.04~0.1MPa (Diff)

✔

Our Advantages

01
More Resin Filling: Strong resistance to water quality fluctuations.
02
Larger Membrane Area: Greater exchange capacity and better water quality.
03
Energy Saving: Low inlet pressure (0.6-1.8kgf/cm2) reduces consumption.
04
Quick Installation: Special connectors and aviation plugs for convenience.

🏢

Production & Profile

Specializing in R&D and manufacturing of water treatment equipment since 2003. We provide design, assembly, and debugging services for automatic softening equipment and reverse osmosis systems. With over 18,000 square meters of warehouse space, we ensure sufficient inventory and timely support.

?

Frequently Asked Questions

Q1: What is the quality guarantee for your products?

We strictly select manufacturers with ISO 9001 certification. Every product undergoes a multi-stage inspection process, including incoming material checks and finished product testing, to ensure industry standards are met.

Q2: What components are available in your inventory?

We maintain a comprehensive stock of pre-treatment systems, ultrafiltration systems, RO membrane elements, EDI modules, salt tanks, metering pumps, and various control valves.

Q3: Why should I choose your EDI modules over others?

Our modules offer higher resin filling and larger membrane areas, resulting in more stable water quality. Additionally, our 15-year experienced team provides cost-optimization solutions that can reduce procurement costs by 15%-20%.

Q4: What technical support do you provide for installation?

We offer free EDI system process drawings, assembly drawings, and provide 7*24h telephone service for remote technical guidance during installation and debugging.

Q5: What are the payment and delivery terms?

We support flexible delivery methods including FOB, CFR, CIF, EXW, and DDP. Payments can be settled in multiple currencies such as USD, EUR, JPY, and AUD.

Q6: Can you provide customized water treatment solutions?

Yes, we can design and assemble fully automatic softening water equipment and reverse osmosis systems tailored specifically to your project requirements and water quality needs.
